Elastimold Cable Joints – High Voltage 600 Amp Separable Cable Joints

Elastimold Cable Joints - High Voltage 600 Amp Separable Cable Joints

Elastimold Cable Joints – High Voltage 600 Amp Separable Cable Joints

Elastimold 600 Amp Separable Cable Joints are available in 2, 3 and 4-way versions and include a capacitive test point as standard. The separable cable joints are interchangeable and feature bolted connections. The designs are compact making them ideal for small vaults and manholes.

De-energized cable joints can be quickly and easily connected and disconnected using standard hand tools and equipment in accordance with accepted operating practices and bus bars can be changed to add or remove cables from the joint.

Optional accessories include insulating and grounding caps and plugs which allow visible external separation, bypass, isolation, dead-ending, grounding and testing.

See Also: Loadbreak & Deadbreak Elbow Connectors

Elastimold

Power & High Voltage Underground Cable Accessories

Elastimold 600 Amp Separable Cable joints

Ratings Overview



  • Current Ratings

  • 600A Continuous, 25kA Sym. 10 Cycles (Prefixes: 650, K650, K655, K656 & 03700)



  • 15/25kV Class Voltage Ratings

    • 16.2kV Phase-to-Ground
    • 28kV Phase-to-Phase
    • 140kV BIL
    • 45kV AC Withstand
    • 84kV DC Withstand
    • 21.5kV Corona Extinction

➡  Elastimold Bushings – 200 Amp & 600 Amp High Voltage Switchgear Transformer Bushings

Elastimold Connectors

MV HV Joints | Terminations | Connectors | Elbows | Splices | Repairs | Fuses

600 Amp Elastimold Cable Joints

Should you require technical support with component product selection for Elastimold 600 Amp Separable Cable Joints please contact us.

There is a complete range of MV-HV cable to electrical equipment bushing wells, separable cable joints bushing inserts (standard, extended and feed-thru) which are compatible with separable cable joints (including replacement, repair, fused and ground type elbows).

Surge arresters can be integrated with medium/high voltage power and electrical distribution systems, 15-35kV.

➡ Complete range of Euromold Connectors & Elbows available for connecting and terminating medium/high voltage cables onto outer cone bushings for SF6 gas insulated switchgear cable terminations.

Separable Cable Joints – 600 Series Deadbreak

The following image shows 2, 3 and 4-way separable cable joints and operating accessories for 600-Amp high voltage separable cable joints.

Elastimold Cable Joints High Voltage 600-Amp Separable Cable Joints



Elastimold Connector Range Description Voltage Class Elastimold Part Number Notes
Separable Straight Joint Pkg. (2-Way) With Test Point Separable Straight Joint Pkg. (2-Way) With Test Point 15/25kV K656I-W0X N1, N8
Basic Housing Pkg.Straight Joint With Test Point Basic Housing Pkg.Straight Joint With Test Point 15/25kV K656I-HP N2

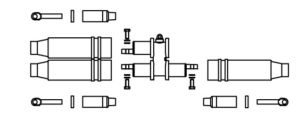

Separable Wye Joint Pkg. (3-Way) With Test Point Separable Wye Joint Pkg. (3-Way) With Test Point 15/25kV K656CY-W0X N1, N8
Basic Housing Pkg Wye Joint With Test Point Basic Housing Pkg Wye Joint With Test Point 15/25kV K656CY-HP N2

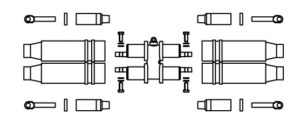

Separable “H” Joint Pkg. (4-Way) With Test Point Separable “H” Joint Pkg. (4-Way) With Test Point 15/25kV K656CH-W0X N1, N8
Basic Housing Pkg. “H” Joint With Test Point Basic Housing Pkg. “H” Joint With Test Point 15/25kV K656VH-HP N2

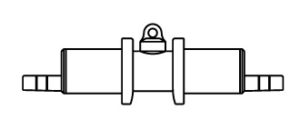

2-Way Insulated Bus Bar With Test Point 2-Way Insulated Bus Bar With Test Point 15/25kV K656I-BUS N3

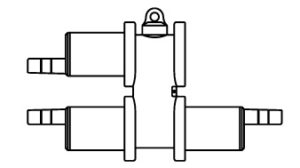

3-Way Insulated Bus Bar With Test Point 3-Way Insulated Bus Bar With Test Point 15/25kV K656CY-BUS N3
4-Way Insulated Bus Bar With Test Point 4-Way Insulated Bus Bar With Test Point 15/25kV K656CH-BUS N3



N1. Complete Joint Packages consisting of: insulated bus bar, straight
receptacle housings, retaining rings, cable size adapters, lugs, bolts
and washers.
N2. Housing Packages consisting of the following non-size sensitive
components of the joint: insulated bus bar, straight receptacle housings,
bolts and washers.
N3. Insulated bus bar only.
N8. Add suffix symbol from page H-38 to include cable shield grounding
kit and/or cable jacket sealing kit.
