Elastimold 600 Amp Deadbreak Elbow Connectors are used to connect equipment and cable on primary feeder and network circuits. Straight receptacles, junctions, vault stretchers and accessories are also available.

Elastimold deadbreak elbows accommodate large conductors and feature bolted connections and deadfront modular construction for maximum reliability, performance and versatility.

Elastimold are also able to offer optional accessories for visible external separation, bypass, isolation, dead-ending, grounding and testing as well as adding taps, surge arresters and circuit protection.

See Also Loadbreak Elbow Version: Elastimold Elbows – 200 Amp Loadbreak Elbow Connectors

Elastimold

Power & High Voltage Underground Cable Accessories

Elastimold 600 Amp Deadbreak Elbow Connectors

Ratings Overview



  • Current Ratings

  • 600A Continuous, 25kA Sym. 10 Cycles (Prefixes: 650, K650, K651, K655, K656, 750, 755, 756 & 03700)
  • 900A Continuous, 25kA Sym. 10 Cycles (Prefixes: 675, K671, K675, K676, 775, 776, & 03702) (Note – 900 amp ratings require copper cable and copper current-carrying components)



  • 15/25kV Class Voltage Ratings (5kV thru 28kv)

    • 16.2kV Phase-to-Ground
    • 28kV Phase-to Phase
    • 140kV BIL
    • 45kV AC Withstand
    • 84kV DC Withstand
    • 21.5kV Corona Extinction
  • 35kV Class Voltage Ratings

    • 21.1kV Phase-to-Ground
    • 36.6kV Phase-to-Phase
    • 150kV BIL
    • 50kV AC Withstand
    • 103kV DC Withstand
    • 26kV Corona Extinction

➡  Elastimold Bushings – 200 Amp & 600 Amp High Voltage Switchgear Transformer Bushings

Elastimold Connectors

MV HV Joints | Terminations | Connectors | Elbows | Splices | Repairs | Fuses

600 Amp Elastimold Elbows

Should you require technical support with component product selection for Elastimold 600 Amp Deadbreak Elbows please contact us.

There is a complete range of MV-HV cable to electrical equipment bushing wells, deadbreak bushing inserts (standard, extended and feed-thru) which are compatible with deadbreak elbow connectors (including replacement, repair, fused and ground type elbows).

Surge arresters can be integrated with medium/high voltage power and electrical distribution systems, 15-35kV.

➡ Complete range of Euromold Connectors & Elbows available for connecting and terminating medium/high voltage cables onto outer cone bushings for SF6 gas insulated switchgear cable terminations.

Separable Connectors 600 Series Deadbreak

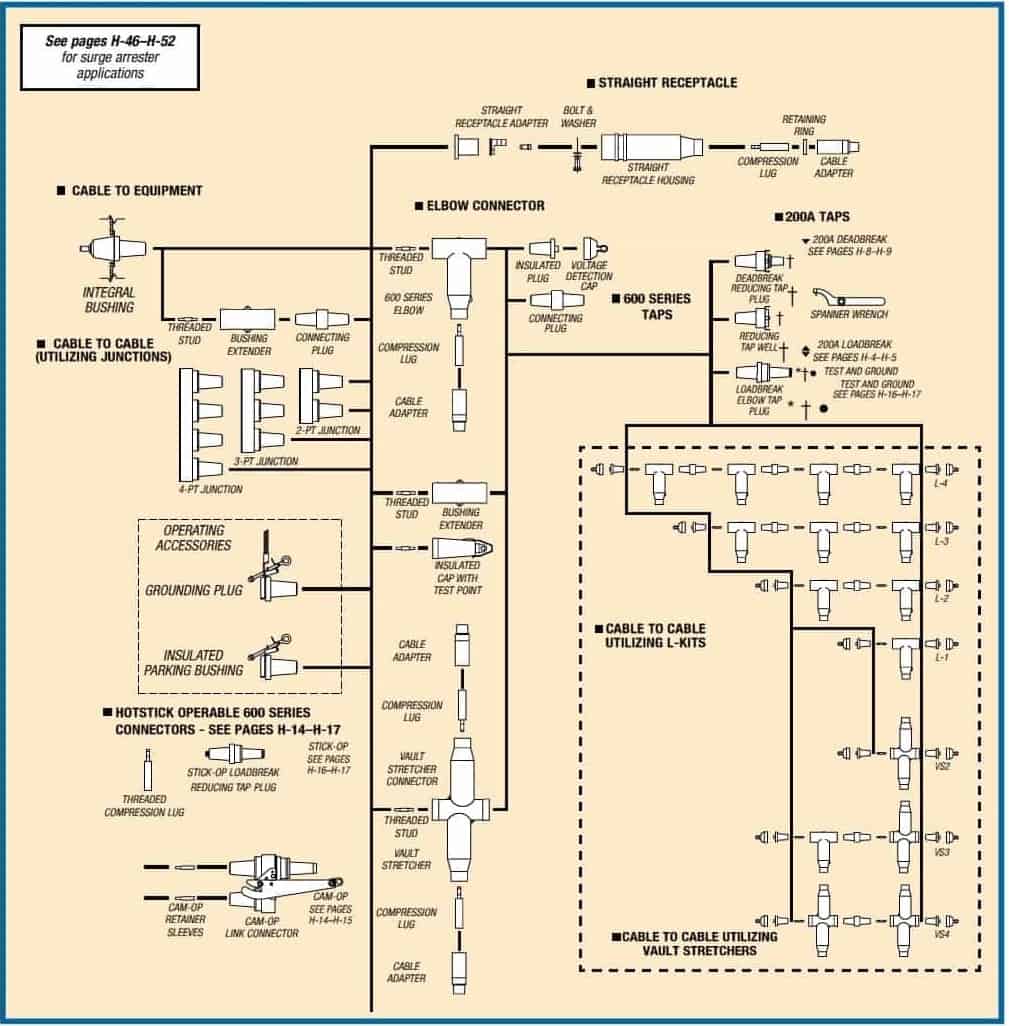

The following image shows the bushings for cable to equipment connections and the operating accessories for 600-Amp deadbreak separable connector components.

Elastimold-Elbows-600-Amp-Deadbreak-Elbow-2

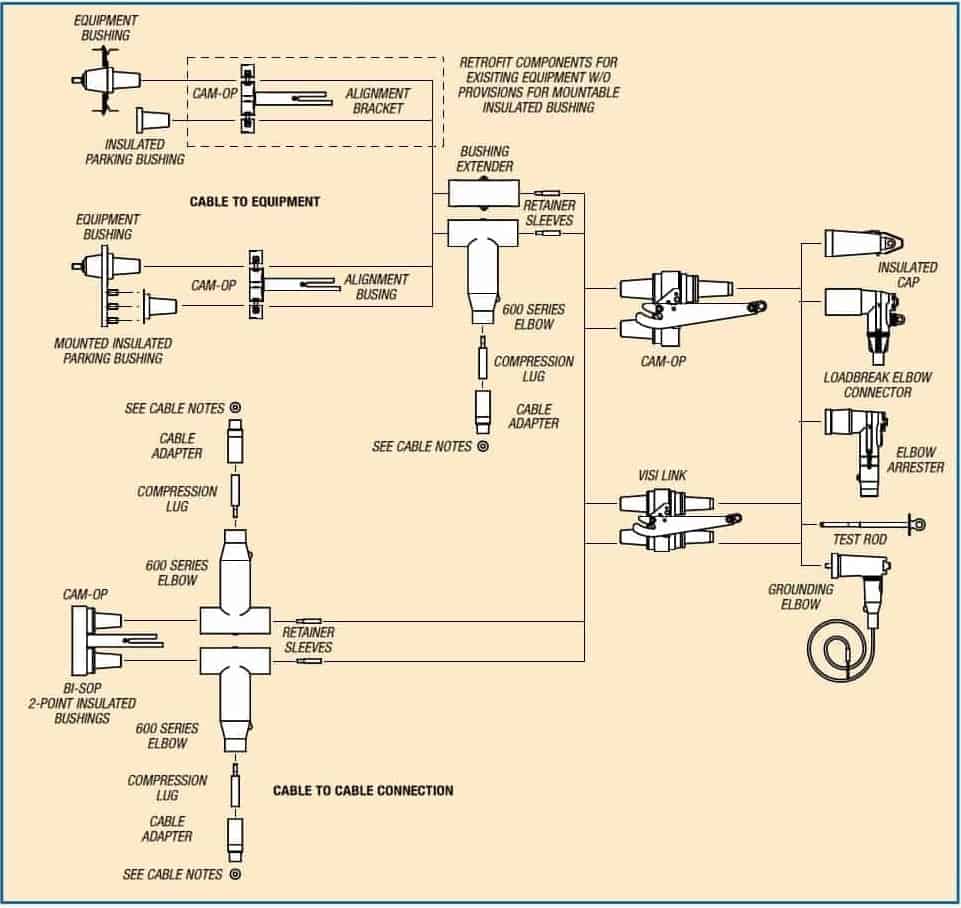

Cam-OP System – 600 Series Deadbreak

Elastimold-Elbows-600-Amp-Deadbreak-Elbow

Elastimold Connector Range Description Voltage Class Elastimold Part Number Notes

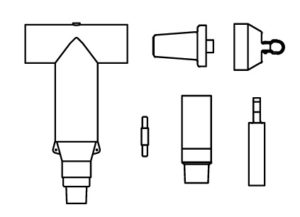

600 Series Elbow 600 Series Elbow
w/ Insul. Plug, Cap, Stud,
Lug and Cable Adapter)
15/25kV
35kV
K655LR-W0X
755LR-W0X
N1, N2
N1, N2

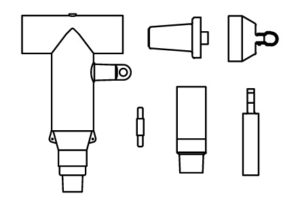

600 Series Direct Test Elbow 600 Series Direct
Test Elbow
(w/ Insul. Plug, Cap,
Stud Lug and Cable Adapter)
15/25kV
35kV
K655DLR-W0X
755DLR-W0X
N1, N2, N12
N1, N2, N12

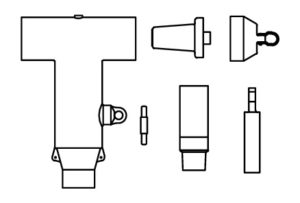

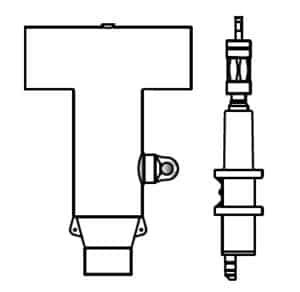

600 Series Elbow With Test Point 600 Series Elbow
w/ Test Point (w/ Insul. Plug,
Cap, Stud, Lug and Cable Adapter)
15/25kV
35kV
K656LR-W0X
756LR-W0X
N1, N2
N1, N2

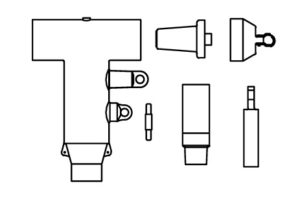

600 Series Direct Test Elbow With Test Point 600 Series Direct
Test Elbow w/Test Point
w/ Insul. Plug, Cap, Stud, Lug
and Cable Adapter)
15/25kV
35kV
K656DLR-W0X
756DLR-W0X
N1, N2, N12
N1, N2, N12
600 Series Elbow With Test Point 600 Series Elbow
w/ Test Point Housing only (w/ Stud)
15/25kV
35kV
K655BLR
755BLR
N1, N3
N1, N3
600 Series Elbow With Test Point 600 Series Elbow
w/ Test Point Housing only (w/ Stud)
15/25kV
35kV
K656BLR
756BLR
N1, N3
N1, N3

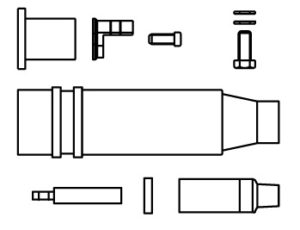

600 Series 600 Series
Replacement Elbow
Housing only w/o Test Point
15/25kV K655BRLR N14
600 Series
Replacement Elbow
Housing only w/ Test Point
15/25kV K656BRLR N14
600 Series Replacement Elbow 600 Series
Straight Receptacle
(w/ Cable Adapter, Lug & Retaining Ring)
15/25kV K655SR-W0X N1, N2, N11
600 Series Direct 600 Series Direct
Test Straight Receptacle Elbow
15/25kV K655DSR-w0X N1, N2, N11, N12



N1. For 900-amp ratings, substitute 675 for 650 and 655; 676 for 656; K671 for K651; K675
for K650 and K655; K676 for K656; 775 for 750 and 755; 776 for 756 and 2X for 0X in the catalog
number. The 900-amp rating requires copper current-carrying connector components
and copper conductor cable.
N2. Add suffix symbol from page H-41 to include cable shield grounding kit and/or cable jacket sealing kit.
N3. Available without the stud by adding “N” to the catalog number.
N11. 600 Series Elbows and Straight Receptacles with IEEE Std. 386 capacitive test points are available by
substituting 656 for 655; K656 for K655; K676 for K675; 756 for 755; 676 for 675; K676 for K675
and 776 for 775 in the catalog number.
N12. Direct Test Connectors, along with a 200TC-X series meter adapter, a properly rated voltage meter
and Hot-line Stick; provides a means for direct conductor voltage testing.
N14. Replacement Elbow includes an I-Adapter, and Straight Receptacle, resulting in a net gain of 20″.
