Ellis 2F+1201 LUL LSF B Plastic Cable Clamps
Ellis Cable Cleats
Single Cable Cleats
Cable Cleat Maximum Short Circuit Test Level 76kA – Cleat Spacing 600mm
Ellis 2F+1201 2 hole cable clamps and cleats are manufactured by Ellis Patents from plastic and are designed as standard in 3 material options including LSF:
- B Black Polpropylene
- LSF Low Smoke Fume (Flame Retardant V0 Zero Halogen) Nylon
- LUL London Underground Ltd Approved Material
LU London Underground Approved
LUL approved Ellis Patents 2F Two Hole Cable Clamps/Cleats are compliant with the requirement of London Underground (LU) Standard 1-085. Product Register No.364 – contact us for further information about our complete range of LV MV HV Rail Cable Accessories with LU London Underground and Network Rail approvals.
Ellis Patents 2F+1201 cable cleats are suitable for securing single-way power cables between 76-83mm overall cable diameter.
2 hole cable clamps can be supplied with a neoprene liner on request (‘L’ should be added as a suffix to the part number) and can be made in a London Underground Approved Material (LUL).
2 Hole Plastic Cable Clamps form part of the Ellis Patents range of single cable cleats – also available as aluminium 1 hole plastic cable clamps with an overall cable diameter between 10-57mm.

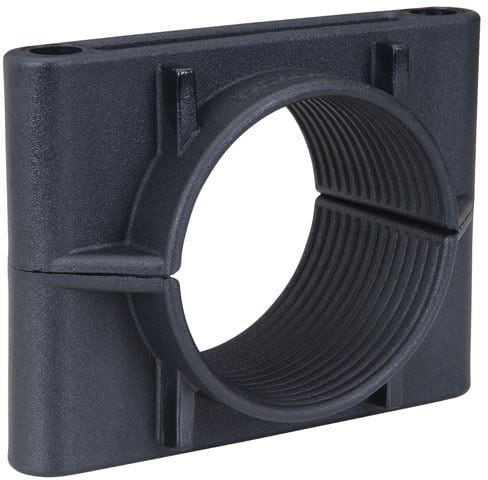

Ellis Cable Clamp 2F+1201
Technical Specification
- Cable Clamp Diameter Min 76mm
- Cable Clamp Diameter Max 83mm
Ellis patents 2F+1201 Clamp Dimensions
- Material Suffix – (B) Black polypropylene, (LSF) black flame retardant V0 zero halogen phosphorus free Nylon, (LUL) London Underground approved material
- Width 135mm
- Height 100mm
- Clamp Depth 75mm
- P 111mm
- 2 x M 12 Clamp Fixing Holes
- Weight 163g (B), 220g (LSF), 330g (LUL)
SINGLE CABLE CLEAT SELECTION TABLE
Specification details for Ellis Patents 2F+1201 Plastic 2 Hole Single Cable Clamps for single cable applications:
2 Hole Plastic Cable Cleats Part Number | Material Suffix | Cable Dia Range (mm) | Dimensions (mm) | Fixing Hole | Pack Qty | Weight (g) | |||||
W | H | D | P | B | LSF | LUL | |||||
2F-1201 | B/LSF/LUL | 76-83 | 135 | 100 | 75 | 111 | 2 x M12 | 10 | 163 | 220 | 330 |
2 Hole Plastic Single Cable Clamps – Installation Instructions
1. Position the cable clamp and fixing (not supplied) onto the support structure. | 2. Install cable. | 3. Locate the other half of the cable clamp. Secure with a nut and washer (not supplied) to the support structure and tighten. | 4. Important: Do not over tighten the clamp. The clamp should secure the cable but does not need to be so tight that the cable bulges at either side of the clamp or becomes angled excessively. |
