High Voltage Power Cables – 33kV+ Up To 420kV EHV Extra High Voltage
High Voltage Power Cables
Contact Thorne & Derrick for competitive prices and UK or international delivery on the complete range of High Voltage Cables for power systems manufactured by TF Kable.
The following table provides an overview of the 33kV+ High Voltage Power Cables product range – a complete range of HV Joints & Terminations are also available for 33kV+ cables, including 66kV.
➡ 33kV Termintions Heat Shrink | 33kV Joints Cold Shrink | 33kV Separable Connectors
 |
Cable Designation | Cable Standard | Nominal Voltage (V) | Number of Cores | Cross Sections (mm2) | HV Cable Application |
 |
XRUHKXS; XRUHAKXS XUHKXS; XUHAKXS XnRUHKXS; XnRUHAKXS XUHKXS(PB); XUHAKXS(PB) |
ZN-BFK021: 1998 POLAND |
Above 36kV up to 420 kV |

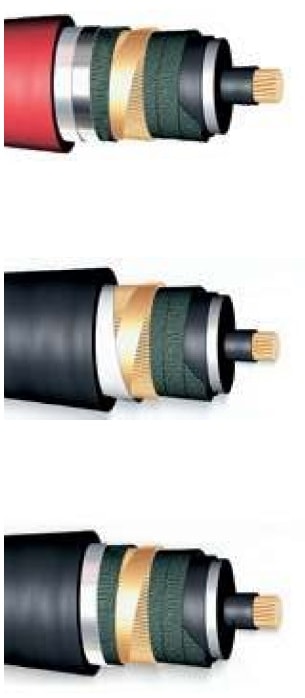

1 | 150÷2000 | Power cables with copper or aluminium conductors, extruded XLPE insulation, longitudinal and radial sealing or lead sheathed with PE (PVC) outer sheath for rated voltage above 36kV up to 420kV. For supply of electrical energy, laying in ground, ducts, pipes and air, in trefoil or flat formation. |
| N2XS(FL)2Y NA2XS(FL)2Y N2XS(F)2Y NA2XS(F)2Y |
DIN VDE 0276- 632:1999 |
|||||
| TSLE TXSE |
NEK 395:1990 | |||||
| AXLJ-LT AXKJ-LT |
SS 424 14 17 | |||||
| CU/XLPE/CWS/LT/PE AL/XLPE/CWS/LT/PE CU/XLPE/CWS/PE AL/XLPE/CWS/PE CU/XLPE/Lead/PE AL/XLPE/Lead/PE |
IEC 60840:1999 AEIC CS7-93 EA TS 09- 16:1983 |
