HV Substation Operating Sockets

HV Substation Operating Sockets

HV Substation Operating Sockets

S9D ESI S1 & CEA/S2 ESI-S2

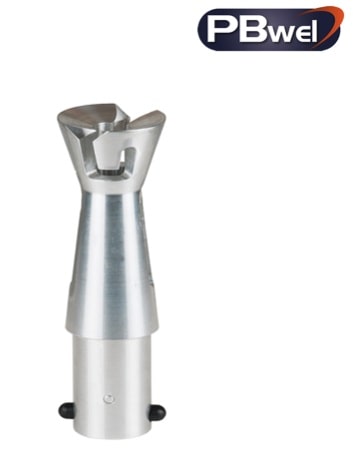

Pbwel HV substation operating sockets are made using a light alloy material for both strength and ease of use and support the line end clamp while being raised and lowered at the end of an operating pole and are designed to ENA technical specification 41/21. They also rotate the operating screw of the line end clamp whilst being secured into position or being removed.

S9D ESI S1 HV substation operating sockets support clamps being applied in an upward direction, alternatively CEA/52 ESI-S1 can be used where the operating screw of the line end clamp is controlled by means of a sprung loaded plunger in the socket.

When the clamp is fully tightened the S9D ESI S1 HV substation operating socket should be pushed gently up towards the clamp at the same time maintaining the tightening pressure and to which the socket will then automatically disengage.

CEA/52 ESI-S2 sockets are for application in a downward direction i.e. below the horizontal and for this reason is sprung loaded to ensure the clamp does not fall out of the socket inadvertently.

These essentially support the line end clamp while being raised and lowered at the end of an operating pole and also rotate the operating screw of the line end clamp whilst being secured into position or being removed

Thorne & Derrick also offer HV substation operating poles & earthing rods with operating sockets for substation use – see also static discharge sticks compliant to the IEC 60855 standard and used to safely dissipate electrostatic charges.

HV Substation Operating Sockets Benefits

Solid construction for extended service
Proven service record used by ESI for over 40 years
Light weight and good corrosion resistance
In accordance with ENA 41-21.

➡ See Overhead Line & Conductors for technical specifications on transmission and distribution power lines working at high/extra high voltages (HV EHV).

A full range of Substation Earthing Equipment available for use with HV Substation Operating Sockets

Portable Earthing Equipment & Tools for HV EHV Substation & Overhead line Applications

Thorne & Derrick provide competitive prices and fast delivery from stock for the complete range of PB Weir substation earthing and transmission line earthing equipment.

In 2018 In 2018 PB Weir joined the Novarc group and re-branded as PBwel and now, through the ESP group of companies, we are able to supply, support and maintain a comprehensive range of Electrical Safety Equipment which includes: Earthing, Insulated Tools, Arc Flash Protection, Personal Voltage Detection Helmets, Insulating Gloves, Voltage Detection, Operating Poles & Lock-Out Tag-out.

Thorne & Derrick also distribute the Alroc and Ripley range of Utility Tools for stripping, cutting and preparing high voltage transmission and distribution cables prior to jointing, splicing and stringing – see also the Cembre range for battery and hydraulic cutting tools.
