Hydraulic Drum Jacks

Hydraulic Drum Jacks


drum jacks

CBS D-536-F Jacks

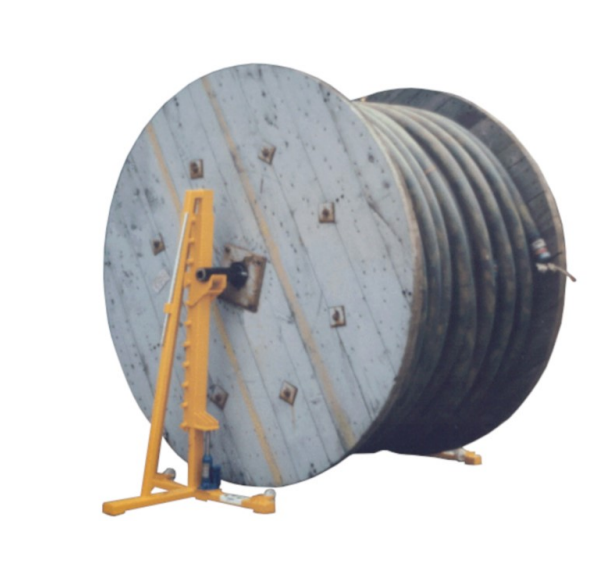

The CBS D-536-1-FHydraulic Drum jacks, are designed by CBS Products for convenience and ease of use. Its compact size makes it ideal for various settings.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.

Hydraulic Drum Jacks


jack key features

Lightweight drum jacks, which are almost indispensable for use in the cable yard. Versatile and easily adjustable within seconds to accomodate a vast range of drums.

For stability, it’s wheels are fitted to move by one person; completed with spindle and collars.

➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.


jack specification

Specifications D-536-F D-247-F D-248-1-F
Min Drum Diameter 800mm 880mm 1080mm
Max Drum Diameter 2500mm 3000mm 3500mm
Weight 106kg 121kg 180kg
Spindle Weight 30kg 44kg 53kg
Lifting Capacity 3 Tonne 6 Tonne 10 Tonne

ordering information
D-536-F 3 Tonne Hydraulic Drum Jack
D-536-01-F 6 Tonne Hydraulic Drum Jack
D-536-02-F 10 Tonne Hydraulic Drum Jack
