NA2XS(F)2Y RE 12/20kV XLPE Medium Voltage Cable
XLPE Medium Voltage Cable | 20kV
NA2XS(F)2Y RE
NA2XS(F)2Y RE Cable Description: Single-core XLPE-insulated cables with PE sheath, longitudinally watertight, solid aluminium conductor, manufactured by Nexans
International Standards:Â IECÂ 60502-2

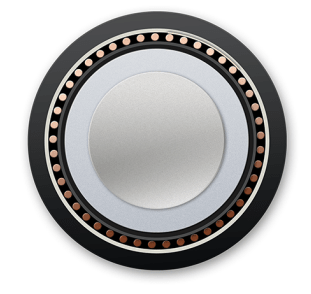

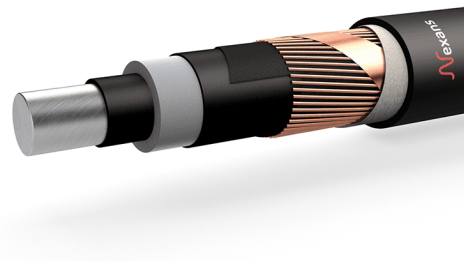

Description: Solid aluminium conductor – conductor screen of semiconducting compound – insulation of cross-linked polyethylene (XLPE) – screen of semiconducting compound – semiconducting swellable tape – screen of copper wires and copper tape – separation tape – PE sheath. The cable is suitable for rated voltage 12/20KV according to IEC 60502-2.
Application: Suitable for medium voltage applications in the ground, outdoors, in cable duct and inside or outside of buildings.
♦ See Cable Jointing Tools to enable cable sheath, semi-con screen and insulation removal of Nexans NA2XS(F)2Y RE cables.
Nexans manufacture an extensive range of MV & HV Cables, 11kV, 33V & 66kV
âž¡ See HV Cable Joints, Terminations & Connectors to enable the installation of NA2XS(F)2Y RE 12/20kV XLPE Medium Voltage Cable – for terminating
medium voltage cables into MV-HV gas insulated switchgear, transformers and electrical equipment with outer cone type bushings please see Nexans Euromold connectors – slip-on, heat shrink terminations and cold shrink cable joints from 11kV-33kV (42kV) also available for MV-HV cables.
Nexans Euromold screened separable connectors, elbows and Tee-connectors terminate high voltage cables with polymeric insulation (XLPE & EPR) onto switchgear and transformer bushings.
NA2XS(F)2Y RE 12/20kV XLPE Medium Voltage CableDownload
