Cold Shrink Joints 24kV

Nexans CSJA-S are single phase compact cold shrink joints – size A cable joints suits from 35sqmm to 300sqmm single core cables up to 24kV with GPH bolted type mechanical connectors meeting HD 629.1 S2 International Standards.

The CSJA-S combines cold shrink and bolted connector technologies (shearbolts) for reliable underground MV joints or connections in a small cable trench (max=1m) or in specific aerial applications.

The Nexans cold shrink cable joints have been designed to connect 24kV single core cables polymeric insulated (XLPE EPR) with cable cross sections from 35sqmm to 300sqmm whether they are aluminium or copper conductor cores on underground MV power cables.

See further information: Nexans Cold Shrink Joints.

Nexans CSJA-S Cold Shrink Joints

Features & Benefits

Cold-Shrink Joint

  • Compatible with Synthetic Insulated Cables (XLPE / EPR) 33kV 36kV
  • Compatible with copper wire, copper tape & aluminium tube cable screens
  • EPDM cable joint body
  • UV resistant external EPDM outer protection
  • Standard screen short-circuit for 1s = 5,1 kA (up to 16 kA on demand)
  • Equipped with a vapor screen for enhanced watertightness

Mechanical Shearbolt Connectors

  • Multisection from 35sqmm to 300sqmm cable conductors
  • Compatible for jointing MV HV medium/high voltage cables with copper & aluminium cores
  • Equipped with self-breaking screws for a perfect torque
  • No specific jointers tools needed
Nexans CSJA-S Cold Shrink Joints 24kV

Nexans CSJA-S Cold Shrink Joints 24kV

Installation is complete by the removal of the cold shrink tubes by the Cable Jointer MV HV without the requirement of a heat source (jointers torches), material filling or wrapping. The cable joints can be energized once assembly is finished.

Cold Shrink Joints 24kV

Kit Contents

A typical complete cold shrinkable joint kit Nexans CSJA-S contains the following components for jointing 24kV cables:

  • 1 x CSJA-S cold shrinkable compact joint manufactured by Nexans
  • 1 x two layer plate
  • 2 x mastic strip
  • 2 x water sealing mastic strip
  • 2 x self-adhesive copper tape
  • 1 x mechanical connector

The cable joint kit also comprises an installation hook, adhesive tape, lubricant, wipers, jointers gloves, white pencil and installation instructions.

Cold Shrink Joints 24kV - Nexans CSJA-S Kit Contents

Cold Shrink Joints 24kV – Nexans CSJA-S Kit Contents

Nexans CSJA-S

Product List

Nexans Part Number Cable Joint Order Code Cond. section range (sqmm) Diameter over insulation range (mm)
68001EF 1x24CSJA-S-18.38/52-M16.95-CW45+MT45-5,1kA/RS-VS 35 .. 95sqmm 18.0 .. 38.0mm
68002EF 1x24CSJA-S-18.38/52-M50.150-CW45+MT45-5,1kA/RS-VS 50 .. 150sqmm 18.0 .. 38.0mm
68003EF 1x24CSJA-S-18.38/52-M50.240-CW45+MT45-5,1kA/RS-VS 50 .. 240sqmm 18.0 .. 38.0mm
68004EF 1x24CSJA-S-18.38/52-M95.240-CW45+MT45-5,1kA/RS-VS 95 .. 240sqmm 18.0 .. 38.0mm
68005EF 1x24CSJA-S-18.38/52-M120.300-CW45+MT45-5,1kA/RS-VS 120 .. 300sqmm 18.0 .. 38.0mm
68006EF 1x24CSJA-S-23.38/52-M16.95-CW45+MT45-5,1kA-VS 35 .. 95sqmm 23.0 .. 38.0mm
68007EF 1x24CSJA-S-23.38/52-M50.150-CW45+MT45-5,1kA-VS 50 .. 150sqmm 23.0 .. 38.0mm
68008EF 1x24CSJA-S-23.38/52-M95.240-CW45+MT45-5,1kA-VS 95 .. 240sqmm 23.0 .. 38.0mm
68009EF 1x24CSJA-S-23.38/52-M120.300-CW45+MT45-5,1kA-VS 120 .. 300sqmm 23.0 .. 38.0mm

Nexans CSJA-S Cold Shrink Joints 24kV

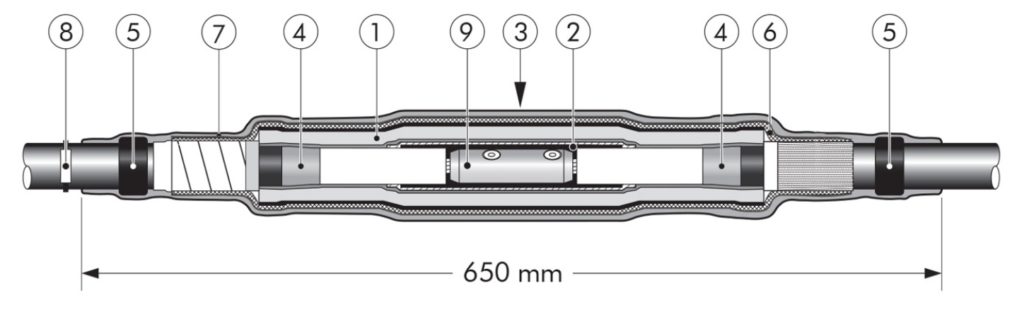

  1. Extruded triple layer EPDM rubber body
  2. Two layers plate with a semi-conductive and field control mastic layer
  3. Overall protective EPDM cover
  4. Field control mastic
  5. Water sealing mastic
  6. Copper stocking
  7. Self adhesive copper tape
  8. Traceability tag
  9. Mechanical conductor connector
Cable Joint Ordering Instructions

For example – the cable is 24kV, 120sqmm stranded aluminium with a diameter over core insulation of 25.3mm. Order a Nexans 24CSJA-S-23.38/52-M95.240-CW45+MT45-5,1kA.

  • CW45+MT45: Copper Wire & Metallic tape screens kit
  • 5,1kA: internal screen connection short-circuit level (5.1 kA for 1 second)
Nexans Part Number Table X Table Y Table Z
diam over cable insulation (range – mm) Ø over outer sheath (mm) Conductor Size (sqmm)
35 50 70 95 120 150 185 240 300
24CSJA-S-X/Y-Z
18 – 38 52 max M16.95
18 – 38 M50.150
18 – 38 M50.240
23 – 38 M95.240
23 – 38 M120.300

Other joint kit options

For use with copper wire screened cables. No earthing device is necessary For use with copper tape screened cables For use with fabric tape (graphite screened cables) For use with French NF C 33-226 cables In case of outer sheath with conductive layer.
For use with copper wire screened cables. No earthing device is necessary For use with copper tape screened cables For use with fabric tape (graphite screened cables). Order additional semi-conductive tape -SCJ For use with French NF C 33-226 cables Order: – AT45 In case of outer sheath with conductive layer. Order additional semi-conductive tape -SCJ
