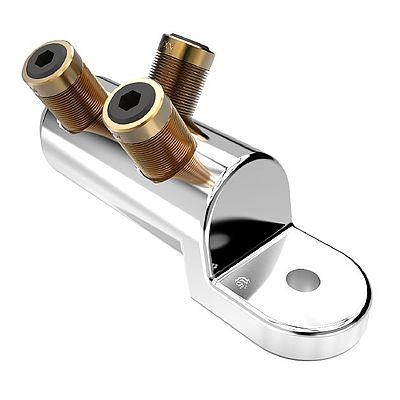

Pfisterer Sicon 332 606 012 Standard Cable Lugs

Standrad Cable Lug

Sicon Connectors

332606012

Pfisterer Sicon 332 606 012 are standard shear-off cable lugs to joint, terminate or connect cable conductors (both copper and aluminium) with a cross section range of 300-630sqmm – short circuit tested for use on high voltage cables and networks up to 72kV and typically used with 11kV/33kV cable accessories including Cold Shrink or heat shrink cable joints and cable terminations.

Sicon connectors, bolted clamps and cable lugs are electrically/mechanically type-tested in accordance with IEC 61238-1 class A.

  • Pfisterer Sicon Part Number: 332 606 012
  • Product Range: Standard Cable Lug
  • Connector Cross-Section (sqmm): 300-630sqmm
  • L (mm): 172
  • OD (mm): 52
  • l (mm): 50
  • H (mm): 17
  • x (mm): 16.5
  • z (mm): 142
  • Hex Size: 8

Pfisterer Sicon 332 606 012

Copper Aluminium Connectors

Suit Copper & Aluminium Cables

Standard Cable Lug Drawing

Standard Cable Lug Dimensions

Sicon Connectors

Branch Connectors | Cable Lugs | Bolted Connectors Using Shear-off Sicon technology from Pfisterer

PFISTERER SICON
PRODUCT SELECTION GUIDE
Connector
cross-section
(sqmm)
L (mm) OD (mm) l (mm) H (mm) x (mm) z (mm) Hex Size Part No (AL + Cu) Image
Standard Cable Lug
95 – 300 122 38 40 14 13 101 8 332 605 012 Standrad Cable Lug

♦ Also: Pfisterer Sicon Mechnanical Cable Lugs

See also: Cable Crimps, Lugs & Connectors
