PROtrough Cable Trough & Cable Protection Systems

PROtrough cable trough system, from Cubis Systems, is an innovative, lightweight, fire retardant cable trough system that offers a modern alternative to traditional concrete trough systems for rail, light rail and power markets.

How does PROtrough work? PROtrough is a highly durable cable protection system that easily resolves engineering challenges for cable laying. The system offers a simple slide and drop male to female connectivity with a unique one click interlocking cover and sliding mechanism.

Benefits Of Cubis Cable Protection Trough Systems

  • Lightweight
  • Water Drainage
  • Quick Assembly
  • Supports Vertical Loading

The cable trough features quick assembly and has seamless integration with the entire Cubis range including cable protection systems and access chambers.

CABLEprotect PROtrough

Rail Track Cable Trough

Installation Of Cubis’ PROtrough Cable Trough

PROtrough Cable Protection

Features & Benefits

PROtrough

Quick Assembly

PROtrough offers simple slide and drop male to female connectivity with a unique one click interlocking cover and sliding mechanism.

Unique Cover

Offering simple slide and drop male to female connectivity, the cable trough offers simplicity with a unique one click interlocking cover and sliding mechanism.

Lightweight

Weighing under 20kg PROtrough offers significant health and safety advantages over traditional concrete troughing systems that can weigh over 90kg. PROtrough is suitable for single person lift and install, enabling compliance with manual handling regulations. Being lightweight and easy to deploy results in considerable project time and cost savings.

Fire Retardant & Chemically Resistant

PRO trough is a GRP cable management trough that has been designed to comply with all European fire retardant specifications, including those for tunnels and stations. GRP outperforms traditional construction methods for chemical resistance during its buried life, resulting in a cable trough product that offers longer installed life.

PROtrough Cable Protection | How It Works

PROtrough Cable Protection | How It Works


How The Cubis PROTrough Works

PROtrough is a highly durable cable protection system that easily resolves engineering challenges for cable laying. The system offers a simple slide and drop male to female connectivity with a unique one click interlocking cover and sliding mechanism.

See also | Access Covers | Access Chambers | Cable Trough



PROtrough Cable TroughSeamless Integration

PRO trough has been designed to offer seamless integration with the Cubis range of cable protection and access chamber products such as ULTIMA Connect and MULTIduct enabling enhanced cable management and access.









GRP Cable Trough

Materials

GRP Cable Trough

This cable trough system is made form Glass-reinforced plastic (GRP). The material is fibre-reinforced polymer made of a plastic, reinforced by fine fibres made of glass.









PROtrough Load RatingLoad Rating

Meets the vertical load class of A15 set by EN124.

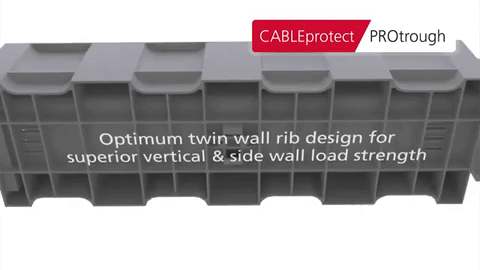

PROtrough has been designed with optimum sidewall strength performance to ensure minimal flex when back filled.









Cable Protection PRO TROUGH

Technical Specification

trough Size

Weight

Product Code

PROtrough 1 Metre 17.7 kg SYDRPT-0C19000C-GY00HAE81
PROtrough 15° Wedge 7.2 kg SYDRPT-0C19WED1-GY00HA001
PROtrough 200mm Adapter 4.1 kg SYDRPT-0C192001-GY00HA001
PROtrough 5 Way Junction Box 24.9 kg SYDRPT-0C195WD1-GY00HA001
PROtrough 30º Up Assembly 21.9 kg SYDRPT-0C1930+1-GY00HA001
PROtrough 30º Down Assembly 21.9 kg SYDRPT-0C1930+1-GY00HA001


For additional data sheets contact Thorne & Derrick


Thorne & Derrick are also distributors of Filoform duct sealing products.

Protection of Cables Against Water Ingress (Flood), Gas Migration (Explosion) & Fire – see duct sealing systems for further information
