Prysmian Claw Cleats (Aluminium Cable Clamps)
Cable Cleats
Claw Cleats

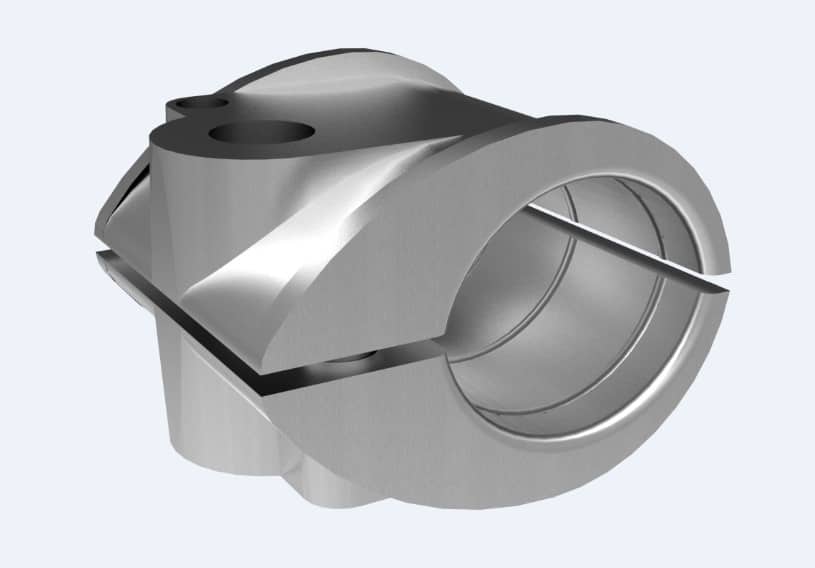

Prysmian Claw Cleats (Aluminium Cable Clamps) are two piece, single fixing LUL approved cable cleats providing cable support and protection against all weather conditions in industrial or outdoor areas with operating temperatures -60°C to +105°C.
Prysmian claw cable cleats with single bolt fixing are suitable for supporting cables with 10mm to 51mm outer sheath diameter forming part of the Prysmian BICON range of single way cable cleats.
Epoxy coated claw cleats are available for heavy industrial and hazardous area locations where higher levels of corrosion protection is required.
Prysmian Claw Cleats Features &Â Benefits
- Cable cleats suitable for cleating cables with diameters 10 to 51mm
- Claw cleats are manufactured from aluminium alloy
- Can be stacked to a maxmium of three on a single fixing
- Can be used for all types of cable routes
- Plain finish – claw cleats for normal industrial areas or outdoor unpolluted areas
- Epoxy coated versions available for harsher environments
- Packing pieces to be used where required for cable management systems
- LUL APR Product ID 1959
Claw Cleats
Prysmian Claw Cleats are two piece, single fixing cable cleats providing cable support and protection to cables against various environmental conditions.
âž¡ Prysmian also have a range of fire resistant claw cleats that are manufactured from cast iron ideal for fire performance cables and for all cable routes cable diameters between 10mm to 54mm.
Claw Cleats
Prysmian Claw cleats Performance Data
- Type – 6.1.1 Metallic
- Impact Resistance – 6.2.5 Very Heavy
- Lateral Load – 3.7 -> 8.2 kN
- Axial Load – 1.332 -> 5.855 N
- Needle Flame – >120 Seconds
BS EN 50368:2003 Cable Cleats for Electrical Installations has been withdrawn and replaced by BS EN 61914:2009.
LUL Approved (London Underground) Cable Cleats Product ID 1959
Also from Prysmian ➡ Fire Resistant Cable Cleats | Trefoil Cable Cleats
| Prysmian Claw Cable Cleat Selection | Prysmian Claw Cleat Details | ||||||||
| Prysmian BICON Order Code Standard | Prysmian BICON Order Code Epoxy Coated | Cable Diameter | Dimensions (mm) | Weight (g) | Stud Size | ||||
| A (mm) | B | C | D | E | |||||
| Min | Max | Max | |||||||
| 370BA01 | 370BB01 | 10 | 13 | 21 | 38 | 46 | 16 | 60 | M10 |
| 370BA02 | 370BB02 | 13 | 16 | 21 | 38 | 46 | 16 | 50 | M10 |
| 370BA03 | 370BB03 | 16 | 19 | 24 | 41 | 46 | 18 | 60 | M10 |
| 370BA04 | 370BB04 | 19 | 22 | 27 | 44 | 46 | 19 | 70 | M10 |
| 370BA05 | 370BB05 | 22 | 25 | 30 | 48 | 46 | 21 | 80 | M10 |
| 370BA06 | 370BB06 | 25 | 32 | 37 | 54 | 46 | 24 | 90 | M10 |
| 370BA07 | 370BB07 | 32 | 38 | 43 | 60 | 46 | 27 | 110 | M10 |
| 370BA08 | 370BB08 | 38 | 44 | 49 | 67 | 46 | 30 | 120 | M10 |
| 370BA09 | 370BB09 | 44 | 51 | 56 | 73 | 46 | 34 | 150 | M10 |
Installing Prysmian Claw cleats
In all applications the claw cleat should be mounted using suitable M10 fixings. When mounting directly claw cleats on channel, adaptor plate Prysmian 380AG02 should be used.
Please note: when stacking claw cleats you should use packing piece Prysmian 389AC03 between cleats.
âž¡ For further information, specification and selection details about Prysmian Claw Cleats refer to the product sections below – see Prysmian Cable Cleats to view cable support clamps for LV, MV & HV cables including short-circuit protection for 11kV and 33kV cables.
View the complete Prysmian range of Single Way Cable Cleats.
Prysmian – mv hv 11kv 33KV CABLE ACCESSORIES
Prysmian manufacture the BICON range of electrical cable accessories including cable joints, terminations, glands and cleats to enable the installation of LV-HV power cables; contact T&D to discuss your 11kV-33kV requirements for jointing, terminating, cleating and glanding of medium voltage and high voltage cables.
Prysmian Claw Cleats (Aluminium Cable Clamps)Download
