Straight 120 Resin Cable Joint

Filoform ST120 Cable Joint up to 1000V | 3.3kV

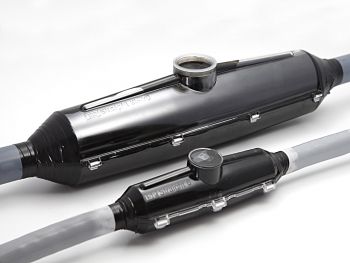

Filoform ST120 straight resin cable joints are used for the connection, repair and jointing of 1-core up to 5-core armoured and 2-core up to 5-core unarmoured low voltage power cables (XLPE & PILC) for inline straight and transition applications with a cable diameter (mm) of ∅ 37 – 67 and joint shell dimensions (mm) L547 x ∅108.

The cable joint kits are suitable for XLPE/SWA/PVC, PILC/SWA/PVC and EPR type Low Voltage Cable Joints up to 1kV/3.3kV (1000 Volts) – this includes straight through and transition connections of cables.

The ST120 cable joints are suitable for the connection, repair and extension of rail cable circuits utilising Class II Based Signalling Power Distribution Systems.

Network Rail Part Number – CM4/ST120 PAD’s No. 055/014015 ST95/120 Cable Joint

Low Voltage Resin Cable Joint

Filoform ST120 Cable Joint Kit Selection

Manufacturer – Filoform
Stock Order Code – CM4/ST120
Cable Joint Type – Straight 120 Resin Cast Type Cable Joint Kit (Injection Moulded)
Cable Diameter – ∅ 37 – 67mm
Cable Joint Shell Mould Dimensions – L547 x ∅108mm
1 Core SWA Armoured Cable Conductor Size – 300sqmm
2 Core SWA Armoured Cable Conductor Sizes – 185sqmm, 240sqmm
3 Core SWA Armoured Cable Conductor Size – 150sqmm
4 Core SWA Armoured Cable Conductor Size – 120sqmm
5 Core SWA Armoured Cable Conductor Size – 95sqmm
2 Core Unarmoured Cable Conductor Size – 400sqmm
3 Core Unarmoured Cable Conductor Sizes – 240sqmm, 300sqmm
4 Core Unarmoured Cable Conductor Sizes – 240sqmm
5 Core Unarmoured Cable Conductor Sizes – 185sqmm
Hazardous Area Cable Joints also available

Cable Joints Tested & Certified

Filoform cable joints are approved in accordance with the standard DIN EN 50393 VDE 0278-393:2015-10 – test methods and requirements for accessories for use on distribution cables of rated voltage 0,6/1,0 (1,2) kV. This European Standard details the performance requirements and the test methods for type testing of cable joints for use with power distribution cables of rated voltage 0,6/1,0 (1,2) kV as defined in HD 603 or other relevant cable standards.

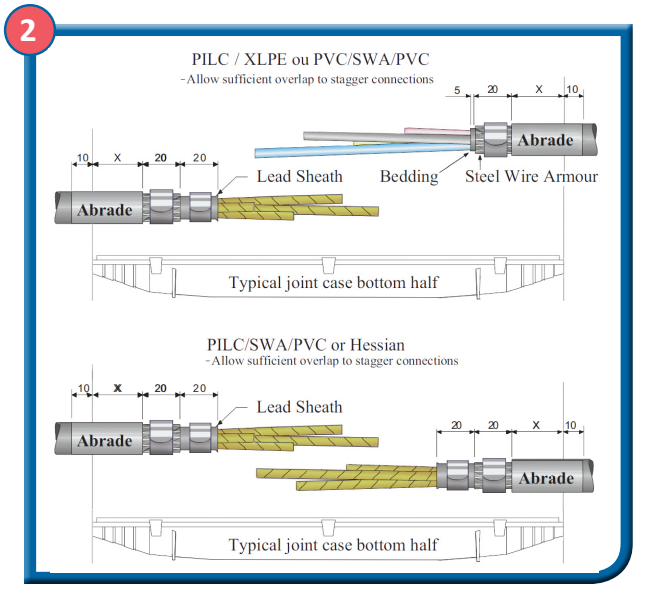

Straight & Transition Cable Joints

LV to HV

Should you require any assistance or Training to support the installation, Jointing or Termination cables including LV MV HV up to 132kV please do not hesitate to contact us – from stock we can specify and supply leading manufacturers and brands including 3M ColdShrink, Nexans Euromold and Pfisterer Connex.

MV HV High Voltage Cable Joints | Cable Terminations | Cable Connectors | Distributed from Stock | UK & Export Sales

Video Resin Cable Joints

The below video demonstrates how to install Filoform resin cable joints. For cable joints up to 1000V, joint can be filled under load conditions. The joint should be left for 2 hours before back-filling to allow joint resin curing process to begin. The jointer should remove excess oil, contaminants and moisture from the cable sheath using an approved cable cleaner wipe of non-flammable specification. Please note this Video is intended as an instructional guide and only competent Jointers should attempt any form of cable spiking, cutting or jointing. Note the Jointer should remove the insulation from the end of each core using suitable cable jointing tools and fit either crimp or shearbolt connectors from approved manufacturers including Cembre or Klauke.

Specialist Cable Joints

Using 3M Scotchcast Resins for power cable jointing, splicing, cable sheath jacket repair, electrical insulation and void filling we can provide innovative solutions for industrial, harsh and hazardous location cables – hydro-carbon resistant resins (resists gas, oil, chemicals for hazardous area Zones 1 and 2 according to ATEX Directive), flame retardant, seawater submersible resins, fire resistant resins, re-enterable resins and LSF (low smoke fume) resins.

Filoform Cable Joints - Connect Seal Protect

Connect | Seal | Protect | Thorne & Derrick International distribute the complete range of Filoform Resin Cable Joints for low voltage power, control, pilot and telecoms cable jointing.
