Straight Line Cable Rollers (90mm-214mm)

cable rollers for Trench

Underground Cable Trench Rollers for Low & High Voltage Power Cable Installations

The Trailer & Winch Solutions range of Straight Line Cable Rollers are available in 14 variants to suit the pulling-in and laying of LV MV HV power cables into underground trench.

TWS’s cable rollers are specialised equipment used in the telecommunications and utility industries for the efficient installation of cable systems, including fibre optics and power cables. These rollers safely support, guide and protect cables during the cable laying process, minimising cable damage and ensuring smooth deployment into the trench by the cable pullers.

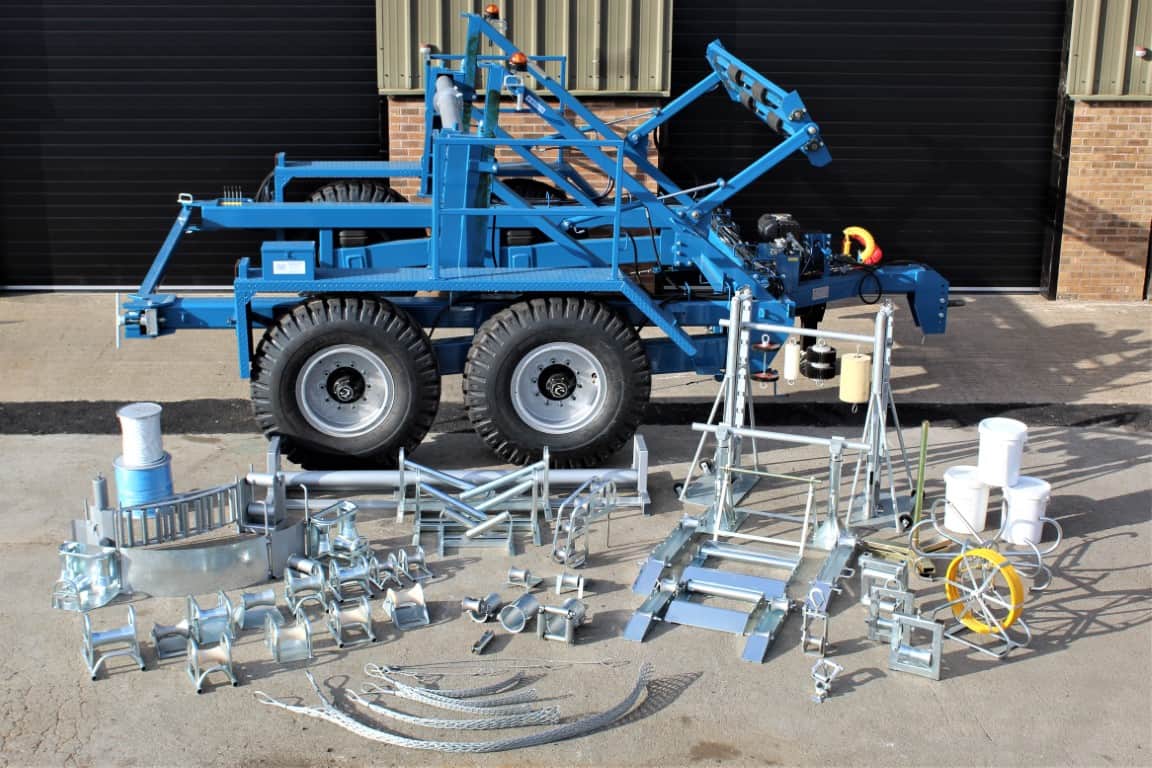

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation of low, medium and high voltage power cables into underground trench or duct.

Straight Line Cable Rollers Selection Guide

The following table includes further insight on Trailer & Winch Solutions range of Cable Rollers available at Thorne & Derrick, including a technical data sheet download for each product to support the selection and specification of the correct roller for the cable installation:

Straight Line Cable Rollers	Cable Roller Type	Roller Diameter	Cable Roller Size	Weight	Straight Line Cable Rollers Technical Data Sheets
	90mm Compact Cable Roller SLR1	90mm Aluminium Diablo Roller	27.5cm long x 15cm wide x 15cm high	2.5Kg
	90mm Extended Base Compact Cable Roller SLR1E	90mm Aluminium Diablo Roller	35cm long x 15cm wide x 15cm high	2.5Kg
	90mm Compact Bridge Cable Roller SLR2	90mm Aluminium Diablo Roller	27.5cm long x 15cm wide x 18cm high	2.5Kg
	90mm Pressed Steel Pipe Cable Roller SLR3	90mm Aluminium Diablo Roller	20cm long x 16cm wide x 10cm high	2Kg
	130mm Heavy Duty Cable Roller SLR4	90mm Aluminium Diablo Roller	30cm long x 22.5cm wide x 22.5cm high	3.85Kg
	130mm Heavy Duty Straight Line Bridge Roller SLR5	90mm Aluminium Diablo Roller	30cm long x 22.5cm wide x 25cm high	3.85Kg
	130mm Pressed Steel Pipe Cable Roller SLR6	110mm diameter large waisted steel roller	20cm long x 16cm wide x 10cm high	2Kg
	130mm Heavy Duty Cable Roller (Superbridge) SLR8	110mm diameter large waisted steel roller	40cm long x 36cm wide x 34cm high	4.3Kg
	130mm Heavy Duty Straight Cable Line Roller SLR9	110mm diameter large waisted steel roller	30cm long x 21.5cm wide x 23cm high	4.25Kg
	205mm Heavy Duty Straight Line Bridge Roller SLR10	110mm diameter large waisted steel roller	37.5cm long x 35cm wide x 30cm high	4.85Kg
	130mm Ladder Rack Cable Roller SLR11	110mm diameter large waisted steel roller	40cm long x 22.5cm wide x 22.5cm high	4Kg
	155mm Heavy Duty Straight Line Cable Roller SLR12	160mm diameter (78mm radius) solid aluminium roller	30cm long x 20cm wide x 17.5cm high	3.85Kg
	214mm Heavy Duty Straight Line Cable Roller SLR13	140mm diameter (107mm radius) solid aluminium roller	30cm long x 20cm wide x 15cm high	3.85Kg
	214mm Heavy Duty All Plastic Bridge Style Cable Roller SLR14	140mm diameter (114mm radius) nylon roller	35cm long x 25cm wide x 20cm high	2.9Kg

tws | trailer & winch solutions ltd

Trailer and Winch Solutions Ltd are a manufacturer of cable laying equipment and cable pulling accessories for the following voltage classes: 600/1000V (LV), 11kV 33kV (MV) & 66kV 132kV (HV).

Thorne & Derrick distribute a complete range of LV, MV & HV Cable Pulling Products for installation into trench or duct including LV, 11kV/33kV medium voltage (MV), 66kV/132kV high voltage (HV) and EHV transmission and distribution cables up to 400kV.
