Swivelling Edge Rollers For Pulling Cable Into Manhole & Ducts
Cable Rollers – ERS76
♦ Power Cables ♦ Subsea Umbilicals ♦ Fibre Optics
Medium Voltage MV ♦ High Voltage HV

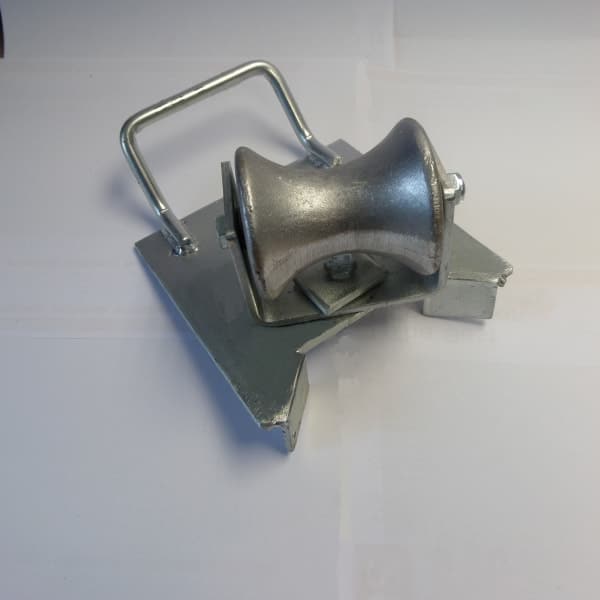

Swivelling Edge Cable Roller
SEB ERS76
ERS76 cable roller is used for the protection of the rope on the rim and corner of the manhole – the roller is made from aluminium in a zinc plated frame – including LV-HV power cables (11kV-33kV) – see the complete range of cable rollers for trench or duct.
- Height: 180mm
- Width: 200mm
- Length:Â 270mm
- Cable Roller Weight: 4.5kgs
Straight, bend, corner and bridge cable rollers are also available for cable installations into trench and Conduit Duct Rods for push-feeding and laying cables into duct.
Complete range of Cable Pulling Equipment for laying MV-HV underground 11kV and 33kV cables into trench or cable duct including cable drum jacks, cable socks, winches and trailers.
T&D, The Cable Pulling & Cable Laying Equipment Suppliers – power transmission products to enable installation of EHV onshore and offshore (inter-array and submarine) 66kV, 132kV, 275kV and 400kV cables
Cable Pulling & Laying Equipment
LV HV 11kV-33kV Cables
T&D also supply from stock Underground Cable Protection for LV-HV cables, this includes Centriforce Stokbord (33kV) and Tapetile (11kV) and Socomore cable lubricants for pulling and blowing power and fibre cables.
âž¡ See also: Cable Jointing & Terminating MV-HV Cables
Swivelling Edge Rollers For Pulling Cable Into Manhole & DuctsDownload
