Transmission Earthing & Line Conductor Leads 132kV 275kV 400kV

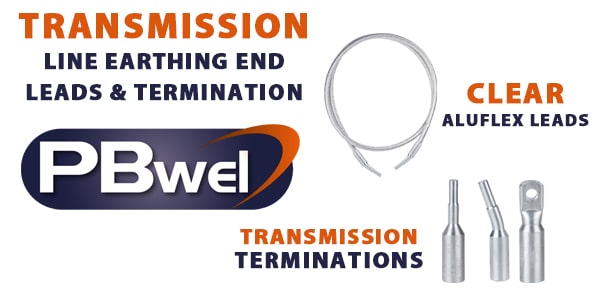

Transmission Line Earthing Ends Leads & Termination

Aluflex cables and leads

Transmission Line Earthing

PBwel transmission earthing & line conductor leads are suitable for the temporary earthing of transmission line conductors and overhead power lines within the range 132kV, 275kV and 400kV.

Aluflex transmission earthing leads are produced from multi-stranded, commercially pure aluminium wrapped with a layer of PTP tape and covered with an extruded clear PVC sheath.

PVC stress-relieving sleeves are fitted to prevent excessive wear around the compression joints and the earth end to line end clamp interconnecting lead has a 50sqmm nominal section area, terminated by PB50F type ferrule terminations. Earth bonds are of a 120sqmm nominal section area terminated by PB120F palm type terminations.

The Transmission Line range of portable earthing equipment is designed with ultimate strength, well in excess of normal working loads, and all designs are type tested.

Transmission Line Earthing

Benefits

Aluminium is less expensive than copper
Light and flexible
Aluminium is less vulnerable to theft than copper
Available in any lengths on request

Transmission Earthing & Line Conductor Leads 132kV 275kV 400kV

A full range of Transmission Line Earthing Equipment are available for use with transmission earthing & line conductor leads

Portable Earthing Equipment & Tools for HV EHV Substation & Overhead line Applications

Thorne & Derrick provide competitive prices and fast delivery from stock for the complete range of PB Weir substation earthing and transmission line earthing equipment.

In 2018 In 2018 PB Weir joined the Novarc group and re-branded as PBwel and now, through the ESP group of companies, we are able to supply, support and maintain a comprehensive range of Electrical Safety Equipment which includes: Earthing, Insulated Tools, Arc Flash Protection, Personal Voltage Detection Helmets, Insulating Gloves, Voltage Detection, Operating Poles & Lock-Out Tag-out.

Thorne & Derrick also distribute the Alroc and Ripley range of Utility Tools for stripping, cutting and preparing high voltage transmission and distribution cables prior to jointing, splicing and stringing – see also the Cembre range for battery and hydraulic cutting tools.
