Live Line Indicators & Voltage Detectors 25kV 132kV Up To 420kV – Pfisterer KP-Test 5HL

Voltage Detectors 25kV/132kV Up To 400kV

Live Line Indicators, Testers & Voltage Detectors

Pfisterer KP-Test 5HL is a capacitive voltage detector – the universal Medium & High Voltage Detection & Live Line Tester (LLT) product range for nominal voltages from 25kV to 420kV. The voltage detector presents the operating voltage when brought into contact with the MV HV overhead lines and conductors.

The Pfisterer KP-Test 5HL voltage detector provides a high level of user-friendliness and user safety – KP-Test 5HL is designed and type tested to Standard IEC 61243-1.

Other versions of the HV high voltage detector with deviating voltages, ranges of nominal voltages, frequencies and languages are available on request. KP-Test 5HL instruments from Pfisterer detect the following voltage classes: 25kV 66kV, 132kV

Voltage Detector

Technical Specification

Class L as defined in IEC 61243-1
Detector available for different ranges of nominal voltages from 25kV to 420kV
Can be used during precipitation – robust for outdoor detection and indication of voltage presence
Particularly loud, integrated audible signal for reliable voltage tests even in noisy ambient conditions
Extremely strong LEDs in clear layout to prevent confusion
Maximum interference field resistance through the use of a high-quality contact electrode extension
Extensive self-test functions at switch-on
Connection for insulating poles with universal adapter
Eye ring for attaching the voltage detector, for example to a spring safety hook
Voltage detector available separately for use with existing insulating poles
Available complete with suitable insulating poles in any overall length or carrying length
Nominal frequency 50 Hz, optional 60 Hz

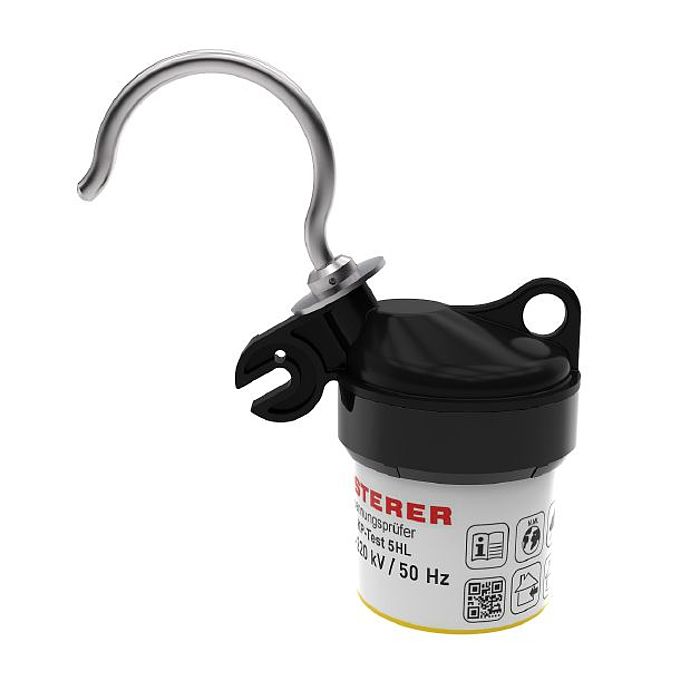

Live Line Tester MV HV Medium High Voltage

Pictured | Overhead Line Voltage Detector KP-Test 5HL, 110kV – 220kV (50Hz Nominal Frequency). Article Number 930 200 002 00078.

Pfisterer KP-Test 5HL

Live Line Indicator | Network Rail Approved

For the use on Network Rail OLE & Isolation schemes the Pfisterer KP5, Module E14C, is Approved to NR/L3/ELP/27237 and PADS Certified.

Live Line Indicator Scope

This module covers the use and care of the Pfisterer KP-Test 5HL Live Line Indicator (LLI) – as detailed on product acceptance certificate PA05/06351. This LLT electrical safety device is used for checking 25kV AC electrical conductors before the application of portable earths and before touching conductors to reduce the likelihood of operators interacting with live conductors, therefore reducing the likelihood of damage to the infrastructure and serious injury to personnel.

Live Line Indicator Description

The KP-Test 5HL LLI is one of a number of approved Live Line Indicators LLIs that may be used to test the 25kV conductors to confirm that it has been disconnected from the source of supply prior to attaching earths (test before earth) or testing before touching.

KP-Test 5HL LLI Method of Use

The KP-Test 5HL LLI shall only be used by personnel holding a valid competency (i.e. Authorised Person or Nominated Person) who shall have received a familiarisation briefing.

The KP-Test 5HL LLI shall only be applied to the lowest conductor of those being tested, i.e. contact wire or bottom autotransformer feeder (ATF) only. The KP-Test 5HL LLI shall only be attached to approved live line poles.

KP5 Pfisterer Live Line Tester

Thorne & Derrick supply an extensive range of 400V-66kV Rail Cable Accessories & Electrical Equipment to contractors undertaking Low Voltage Power Distribution, HV Electrification & Substations, DC Traction & Networks, OLE and Track Feeder Cable Renewals – a complete range of Network Rail PADS approved medium voltage cable terminations, joints, cable repair and connection products up to 66kV.

➡ See also – Voltage Detectors Medium Voltage

♦ When using voltage detectors to establish presence of operating voltages on MV-HV power cables or overhead lines there may be a requirement to apply field equipment earths, portable earthing, to equipment which is working adjacent to Live conductors to discharge any induced voltages. Contact Thorne & Derrick for technical support and advice on a complete range of Live Line Testers for medium/high voltage underground cable and overhead line power systems.

Pfisterer KP-Test 5HL

Voltage Detector Technical Specification

Pfisterer Part Number	Nominal Voltage U_n (kV)	Nominal Frequency f_n(Hz)	Diameter of hook electrode d (mm)	Suitable Cases
930 200 002 0034	66 – 132	975	2478	K2
