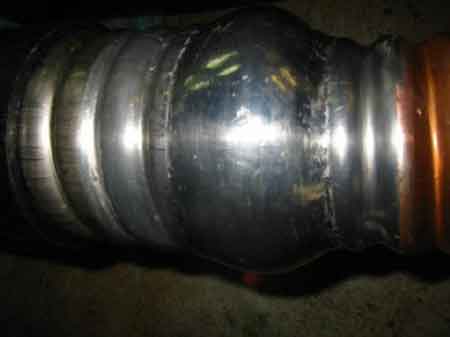

110kV Cable With Stainless Steel Sheath Plumbed/Wiped To Copper Sheath Cable

Published 06 May 2021

Image Courtesy of: Andy O’Malley (IBEW 258 EHV Cable Jointer/Splicer).

“This is a stainless steel super sheathed 110kV cable in Brisbane Australia – the high voltage cable had an HDPE graphite coated outer sheath then a stainless steel sheath.”

“A PVC sheath was below the stainless steel then below that a copper sheath. Finally, inside the sheath layers was a 1600sqmm copper conducted XLPE cable.”

“Great project with the Energex boys,” comments Andy.
