11kV Triplex Cables Terminated Onto Switchgear Bushings Using Heat Shrink Cable Terminations

Published 08 Dec 2017

Joints Terminations Connectors LV MV HV

  • Application: 11kV Triplex Cables Terminated Onto Switchgear Bushings
  • Cable Type: 11kV Triplex Cables BS7870-4.10 – 3 Core Cable High Voltage (HV) Power
  • Cable Jointer: Watkins and Jacomb Construction Power & Consultancy
  • Featured Product: Heat Shrink Cable Terminations 11kV

Heat Shrink Terminations

11kV Triplex Cables Terminated Onto Switchgear Bushings Using Heat Shrink Cable Terminations

In order to safely and professionally prepare medium/high voltage cables a complete set of cable jointing tools are required to enable the stripping and removal of the 11kV triplex cable sheath, insulation and screen – this includes Alroc tools used by jointers for MV/HV cable preparation and Cembre tools to cleanly cut and crimp cables.

11kV Triplex Cables Terminated Onto Switchgear Bushings Using Heat Shrink Cable Terminations

The jointers have used cable cleaning wipes to carefully remove debris, dust or contaminants from the Triplex cables to ensure the overall reliability of the 11kV heat shrink cable terminations.

Lucy Electric



Lucy Switchgear

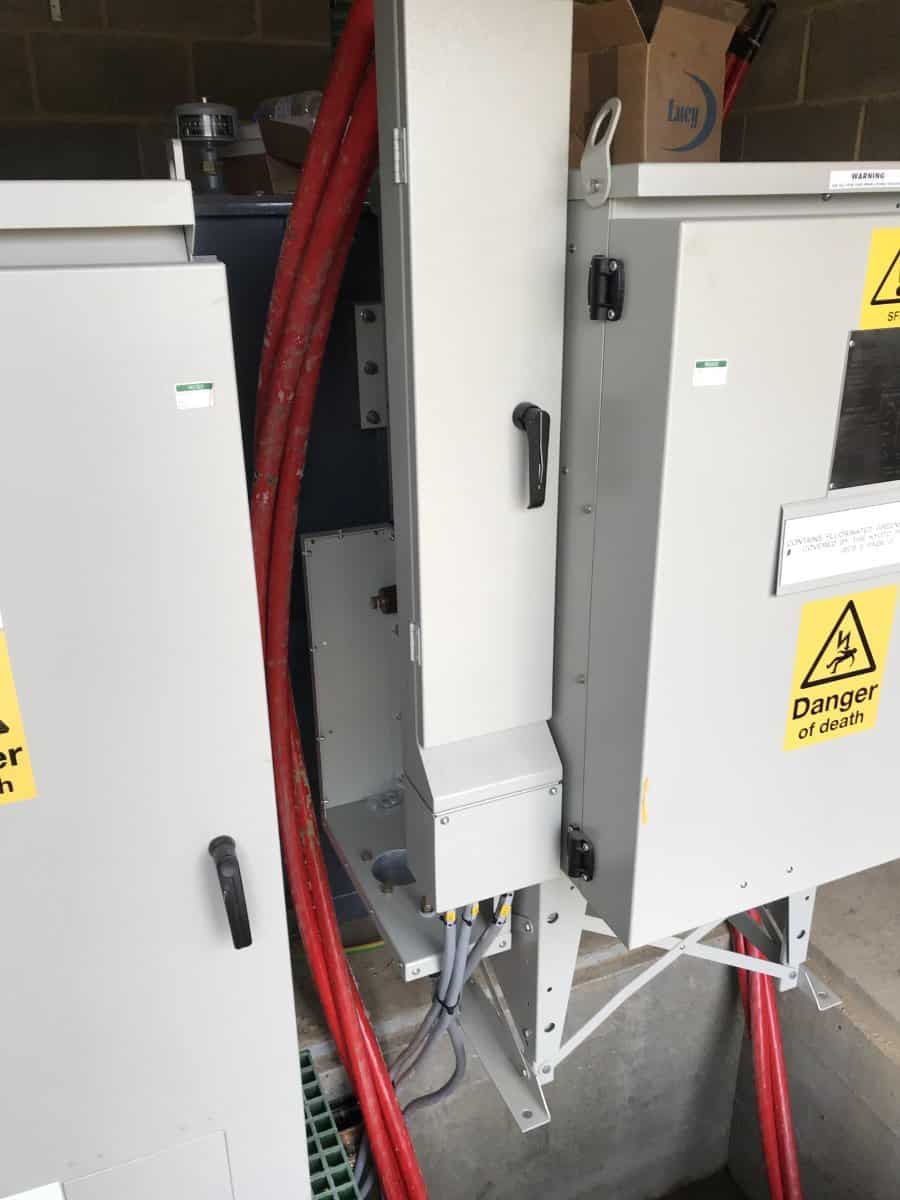

11kV cables are shown terminated using heat shrink terminations into Lucy VRN2a SF6 Ring Main Unit with a 200A Circuit Breaker to UKPN specification – the Sabre range of RMU’s manufactured by Lucy Switchgear are non extensible ring main units for outdoor high voltage substations. Along with low voltage distribution cabinets, these RMU’s can be easily coupled to the distribution transformer forming a compact outdoor package substation.

11kV Triplex Cables Terminated Onto Switchgear Bushings Using Heat Shrink Cable Terminations

11kV Triplex Cables Terminated Onto Switchgear Bushings Using Heat Shrink Cable Terminations

11kV Triplex Cables Terminated Onto Switchgear Bushings Using Heat Shrink Cable Terminations

11kV Triplex Cables Terminated Onto Switchgear Bushings Using Heat Shrink Cable Terminations

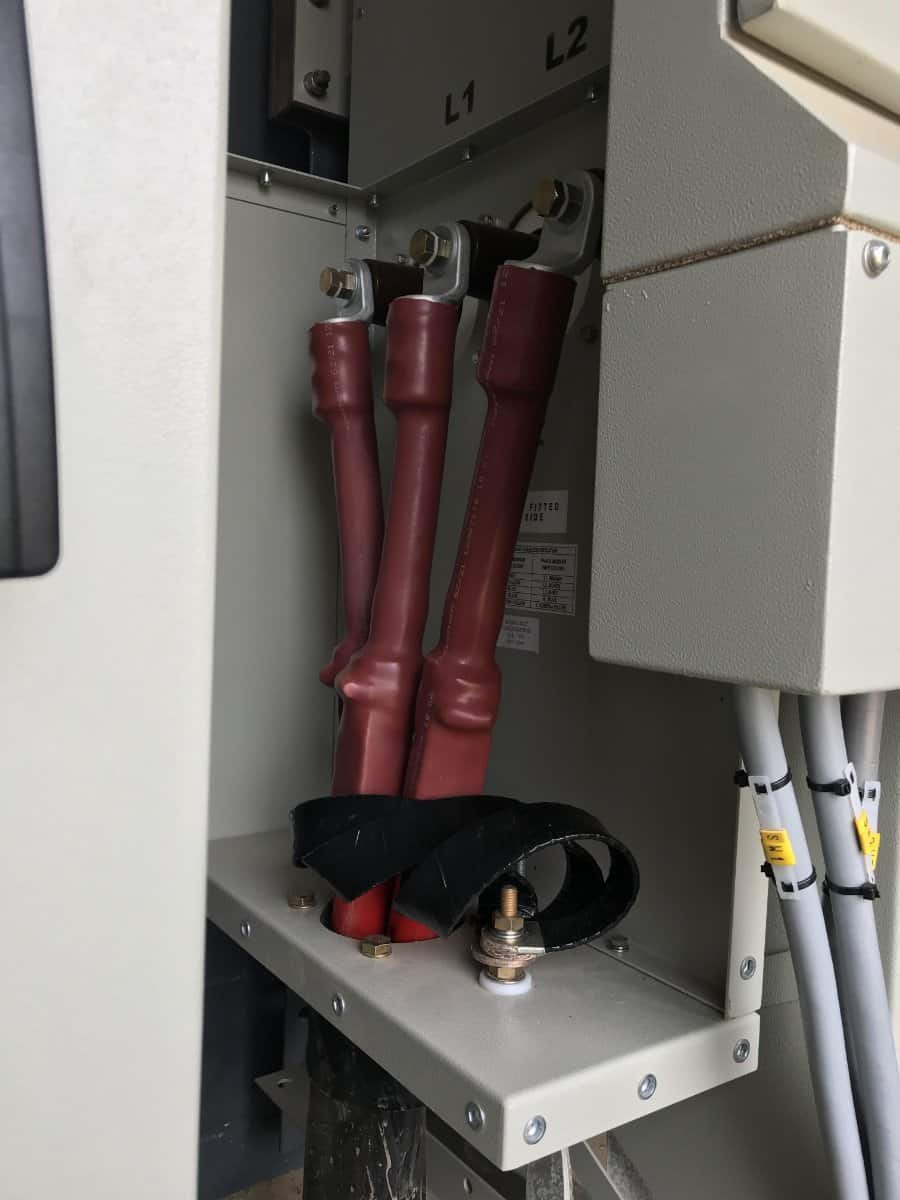

The 11kV heat shrink terminations are crimped using mechanical shearbolt cable lugs and bolted to the interface bushings of the air insulated cable box.

Terminating Triplex Using Cold ShrinkBrass Cable Lugs

Here, the 11kV Triplex cables are shown terminated into a high voltage cable termination box using 3M Cold Shrink terminations – the concertina style bushing boot is cold-applied and suitable for both straight or right-angled 11kV switchgear connections, part code 3M 92EE717-1.

The bushing boots insulate the cable lug connection onto the bushing interface located on the electrical equipment. The Triplex copper wire screens are shown bonded to earth using brass mechanical shearbolt cable lugs.

The unarmoured Triplex cables are provided with mechanical cable retention and moisture ingress protection using heat shrink cable glands – the glands provide a watertight and fume-tight cable seal where the Triplex cables enter high voltage connection boxes, switchgear, bulkheads, or other enclosures.

The HV cables are cable ducted within the hot zone and a stand-off insulator is mounted in each HV cable box. The cable sheath is shown terminated to an earth bar mounted onto the stand-off insulator.

Image: NPG Northern Powergrid

Triplex Terminations

Triplex Cable Sheath Earthing Arrangement 11kV

Should you require any assistance with the selection or specification of 11kV triplex cables or 11kV cable lugs please do not hesitate to contact us.
