11kV Termination - Single Core XLPE EPR Heat Shrink Cable Terminations

Cable Terminations 11kV 33kV | Single & 3 Core | Medium & High Voltage Cables MV HV

Nexans cable terminations are suitable for connecting and terminating 11kV single core polymeric cables with stranded copper or aluminium conductors, 16-800sqmm.

11kV terminations connect medium/high voltage power cables with polymeric insulation including XLPE and EPR to MV-HV switchgear, transformers and cable boxes – suits single core bonded or easy strip semi-conductive screens.

Heat shrinkable 11kV-33kV Nexans single-core termination kits, suitable for Medium Voltage polymeric (XLPE and EPR) insulated cables within an indoor environment i.e. air-insulated termination chambers.

MV-HV cables distributing 11kV power should always be prepared using correct cable jointing tools.

11kV cable terminations suit both copper tape screened (CTS) and copper wire screened (CWS), armoured (steel wire/braid) or unarmoured cables – single core heat shrink cable terminations are supplied in sets of 3 phases with sufficient materials to effectively terminate 3 single core cable ends.

11kV terminations are tested to international standards including CENELEC HD629.1 and IEC60502-4.

Each Nexans single core heatshrink termination kit is supplied as a set of three phases with 650mm tail lengths – for longer tail lengths please contact us.

11kV Terminations Single Core Cables

  • 11kV Single Core PVC XLPE AWA Armoured Cable BS6622 IEC60502
  • 11kV Single Core LSZH Zero Halogen XLPE AWA Armoured Cable BS7835 IEC60502
  • 11kV Triplex Cables – XLPE EPR 3 Core Copper | Aluminium Conductors BS7870-4-10
  • 11kV Cables with copper tape screen require Nexans SE solderless screen earth kits
  • Indoor Air Termination Cable Boxes, Switchgear, Transformers, Motors, Junction Box Enclosures & Substations
  • Outdoor Overhead Line (OHL) & Pole Mounted Cable Terminations
  • GIS Gas Insulated Switchgear Bushings – see Nexans Euromold Separable Connectors
  • More MV HV Cable Terminations

Complete range of 11kV cable accessories are available to support the installation and termination of single core cables.

Terminations 11kV 33kV

Cable Glands | Screen Earth Kits | Cable Lugs (Crimp Shearbolt) | Bushing Boots

Offshore Cable Terminations 11kV

HV cable terminations are suitable for the connection and terminating of single core BS6883 shipwiring and offshore cables with EPR insulation – this includes 11kV cables with galvanised steel, tinned annealed copper or tinned bronze wire braid. Where cables are terminated in potentially explosive atmospheres, such as Zone 1 or Zone 2 according to ATEX Directive, a complete range of hazardous area cable glands are available.

Also: 11kV 3 Core Terminations | 33kV Single Core Terminations | 33kV 3 Core Terminations

The following selection tables enable the correct specification of 11kV single core cable terminations:

11kV Indoor Terminations

Nexans Order Code  Cable Voltage Conductor Range – Single Core Cables  Cable Termination Tails
SREI 12 16-25  11kV 16, 25sqmm  650mm
SREI 12 35-95  11kV 35, 50, 70 95sqmm  650mm
SREI 12 120-240  11kV 120, 150, 185, 240sqmm  650mm
SREI 12 240-500  11kV 240, 300, 400, 500sqmm  650mm
SREI 12 400-630  11kV 400, 500, 630sqmm  650mm
SREI 12 630-800  11kV 630-800sqmm  650mm

11kV Outdoor Terminations

Nexans Order Code  Cable Voltage  Conductor Range – Single Core Cables  Cable Termination Tails
SREF 12 16-25  11kV  16, 25sqmm  650mm
SREF 12 35-95  11kV  35, 50, 70 95sqmm  650mm
SREF 12 120-240  11kV  120, 150, 185, 240sqmm  650mm
SREF 12 240-500  11kV  240, 300, 400, 500sqmm  650mm
SREF 12 400-630  11kV  400, 500, 630sqmm  650mm
SREF 12 630-800  11kV  630-800sqmm  650mm



    * Outdoor cable terminations – where cable termination core lengths need extending to permit connection of cable to overhead line networks standard 11kV termination kits can be supplied with lengthened tails (anti-track heat shrink). Nexans SREI range of heat shrink cable terminations are suitable for following medium/high voltage power cable voltages:
    6/10 (12kV)
    6.6/11 (12kV)
    8.7/15 (17.5kV)
    12/20 (24kV)
    12.7/22 (24kV)
    18/30 (36kV)
    19/33 (36kV)

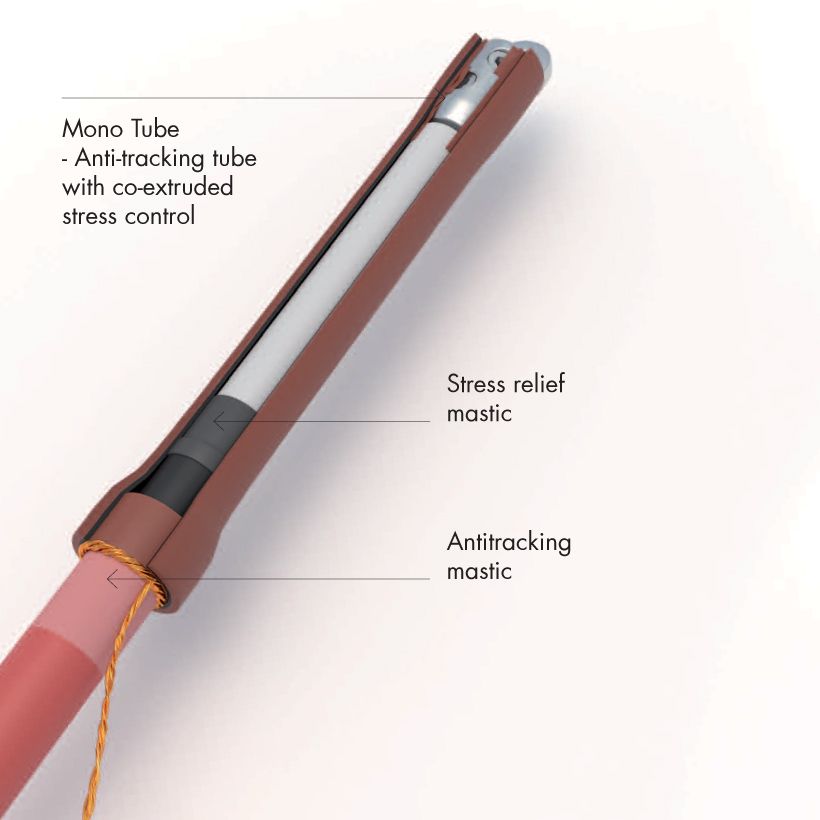

Cable Termination 11kV Design
  1. Cable Lugs (Cembre Crimp Lugs or Pfisterer Sicon Mechanical Lugs)
  2. Water Sealing Mastic
  3. Anti Tracking Heat Shrink Tube (Red)
  4. Stress Control Heat Shrink Tube (Black)
  5. Stress Control Mastic
  6. Anti-Track Rain Sheds (Outdoor Cable Terminations)
    11kV Terminations Single Core XLPE EPR Heat Shrink Cable Terminations



Installing HV Heat Shrink Cable Terminations 11kV
  • 11kV Cables With Copper Wire Screen or Copper Tape Screens
Copper Wire Screen Cables
  1. Remove the outer cable sheath with 11kV sheath stripping pliers over a distance L + X (L= see table below, X = depth of cable lug barrel + 5mm). Remove bedding tape and copper strip. Clean the outer cable sheath over a distance of 50mm and apply a layer of red thermoplastic tape (with a 50% overlap).
  2. Bend back the copper wire screens over the cable sheath in a parallel way so that each wire rests upon the thermoplastic tape. Fix with a wire wrapping (2 or 3 windings) at about 50mm below the cutback edge of the 11kV cable sheath. Twist and bind the copper wire screens together, cut at the correct length, install the 11kV cable lugs and connect to earth. For cable terminations located outdoors with armour (SWA or AWA) also connect the earth braid/wire screen to the 11kV cable armour by soldering or solderless earth connection.
  3. The HV jointer should then remove the conductive tapes and elements for longitudinal water tightness.
Copper Tape Screen Cables
  • Remove the outer cable sheath with sheath stripping pliers over a distance L + X (L= see table below, X = depth of cable lug barrel + 5mm). Remove bedding tape. Clean the outer cable sheath over a distance of 50mm and apply a layer of red thermoplastic tape (with a 50% overlap). Carefully remove the 11kV copper tape screen over a distance up to 20mm from the outer sheath.
  • Connect the earth braid to the copper tape screen, by using a copper wire binder and soldering or by a constant force spring. For 11kV cables with armour (SWA or AWA) also connect the earth braid to the cable armour by soldering or other equivalent method. Apply solder to the braid to form a moisture block at about 10mm below the cable sheath edge. Attach the braid with a wire wrapping at 50mm below the outer cut back edge.
  • The high voltage cable jointer should then remove the conductive tapes and elements for longitudinal water tightness.
11kV Cable Termination Stripping Dimensions
Cable Termination Voltages (Max kV) L Indoor Termination (mm) L Outdoor Termination (mm)
6.6kV/7.2kV 250 300
11kV/17.5kV 250 300
24kV 300 350
33kV/36kV 350 480

 Cable Jointing Instruction: 11kV Cable Termination Single Core

11kV Cables - Copper Wire v Copper Tape Screen Termination

11kV Cables – Copper Wire v Copper Tape Screen Termination
