Cleating 11kV 3 Core & Single Core Cables With LV Pilot Cables

Published 16 Mar 2021

Cable Cleats

Image Courtesy Of: Sam Rowe – Estimator at F B Taylor (Cable Contractors) Ltd

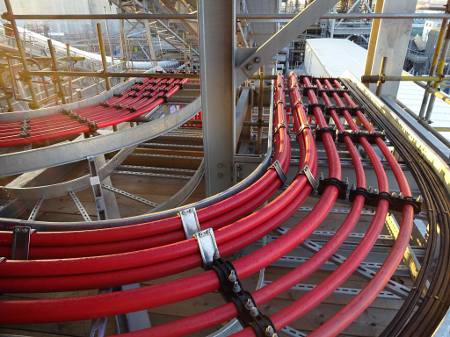

These 11kV cables have been pulled in and cleated using stainless steel trefoil and 2 bolt nylon cable cleats to ladder racking.

Cable cleats are used to fix, clamp and support cables – cleats provide effective short circuit protection, support and retention to LV, MV and HV power cable systems when installed at intervals to circuits to secure electrical installations.

The cable cleats provide restraint and prevent excessive cable movement resultant from fault-current magnetic forces – cleats must be suitably rated for cable size (outside diameter) and anticipated fault current (peak fault level kA).

Correctly specified cable cleats will withstand the forces corresponding to the values of the peak prospective short-circuit current.

Power cable system designers, engineers and specifiers must consider the correct cable fixing or securing system to provide safe and adequate restraint and protection of LV, MV or HV cables – cable cleats restrain movement of cables during electrical fault conditions.

Cable cleats are available to suit all environmental conditions (onshore and offshore), industrial applications and operating voltages – specialist cable fixings for fire resistant, low smoke zero halogen (LSF LSOH) and quadrafoil (Quad) cable installations.
