Pfisterer Connex 5s Cable Plugs Terminating Into Siemens HV Switchgear
Published 15 Jun 2021
Image Courtesy of:Â Roger Wright – EHV Cable Jointer

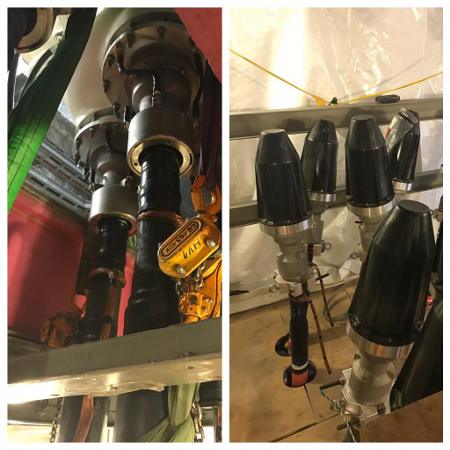

Pictured: Pfisterer Connex 5s Cable Plugs Terminating Into Siemens HV Switchgear
Pfisterer Connex Inner Cone Plug Terminations
The Pfisterer MV Connex range is ideal for use in high load ring main units, circuit breaker switchgear, high voltage motors, transformers, capacitors, transducers and cable joint boxes. Pfisterer connectors on the equipment side are designed to meet EN 50180 (bushings for liquid filled transformers up to 52kV), EN 50181 (plug-in type bushings up to 36kV for equipment other than filled transformers) and DIN 47637 (separable accessories for power cable for bushing with inside cone).
Pfisterer Tools – Pfisterer Connex Plugs (33kV Separable Connectors Size 3) –Â careful and professional MV cable preparation using approved cable jointing tools is essential to achieve a reliable installation.
