Pfisterer Inner Cone Plugs Size 5s Connecting & Terminating 132kV EHV Cable
Published 08 Jan 2020

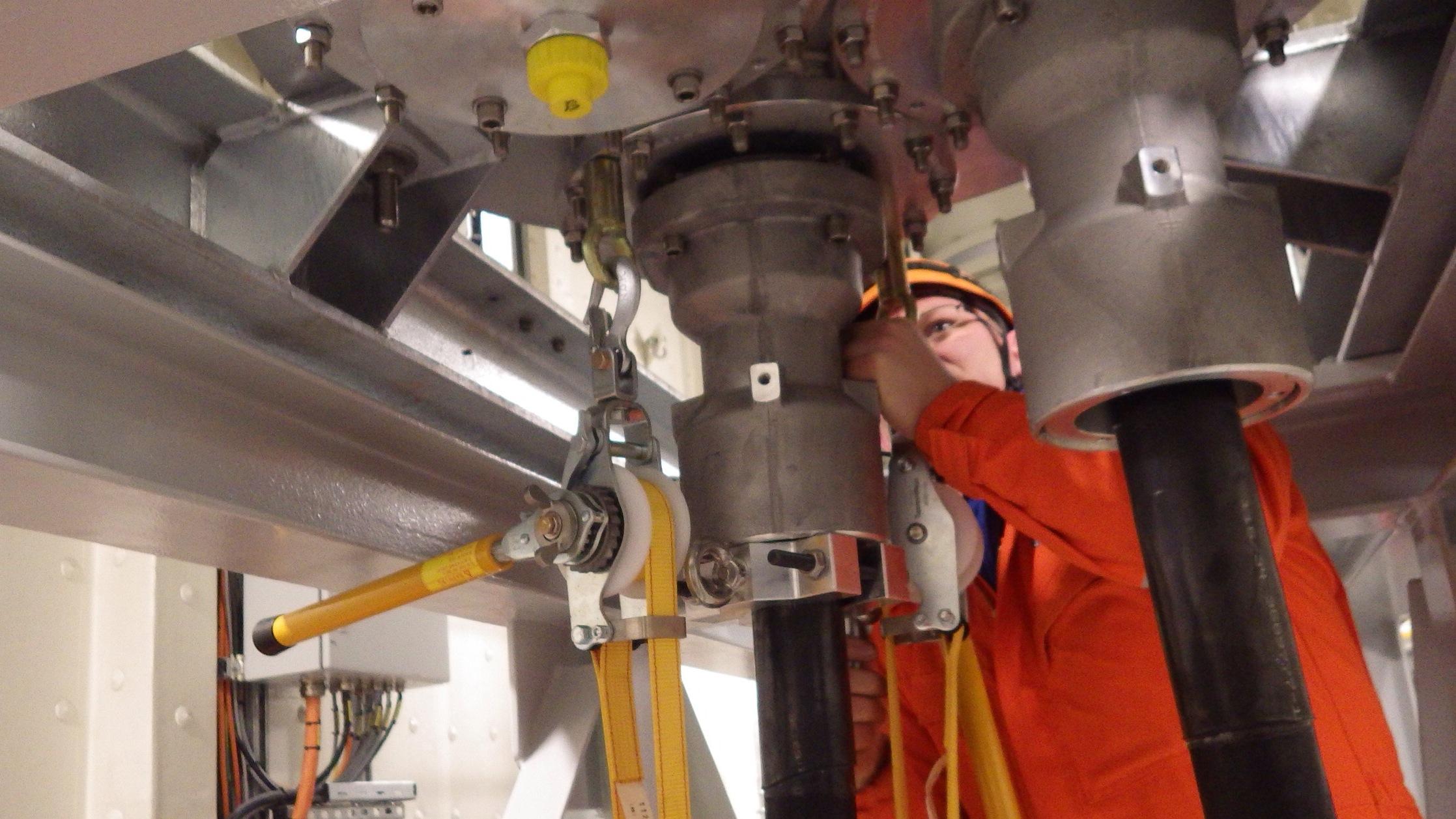

Pictured : EHV Cable Jointer Installing Pfisterer Connex Size 5s Inner Cone Plug Cable Termination (132kV).
Image Courtesy :Â Dean Wilson (Owner Director at D.C. Cable Jointing Ltd)
T&D are Main Distributors & Stockists for the Pfisterer range of Medium Voltage Power Products including Connex Plugs, Cable Jointing Tools, Sicon Connectors, Surge Arresters and Electrical Safety Equipment.

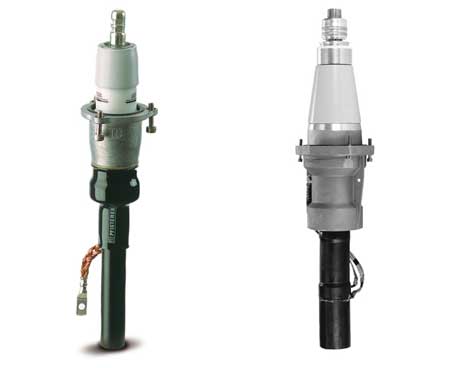

Pfisterer Connex Inner Cone Plug Terminations
The Pfisterer MV Connex range is ideal for use in high load ring main units, circuit breaker switchgear, high voltage motors, transformers, capacitors, transducers and cable joint boxes. Pfisterer connectors on the equipment side are designed to meet EN 50180 (bushings for liquid filled transformers up to 52kV), EN 50181 (plug-in type bushings up to 36kV for equipment other than filled transformers) and DIN 47637 (separable accessories for power cable for bushing with inside cone).
Pfisterer Connex Inner Cone Plug Terminations
Video: Pfisterer Tools – Pfisterer Connex Plugs (33kV Separable Connectors Size 3) – careful and professional MV cable preparation using approved cable jointing tools is essential to acheive a reliable installation.
