Arc Rated Clothing

Arc Rated Clothing, from the ProGARM range of garments and clothing is used to protect against arc flash accidents as the last line of defence. Arc Flash PPE will not prevent incidents, and it is therefore vital that a comprehensive electrical safety plan for maintenance, repair and diagnostic procedures (involving energised LV, MV or HV electrical equipment) is also implemented.

Thorne & Derrick distribute a range of arc flash coveralls to suit a range of requirements. Variations include ladies clothing, designs for overhead linesmen, orange and yellow hi vis options and a wide range of sizes. Contact Thorne & Derrick with your specific PPE requirements and we will be happy to help.

The ProGARM range of Flame Resistant protective garments are designed for every-day wear and protection – the highly breathable clothing ranges are designed for comfort and safety without compromising the ability of the wearer to work productively, safely and unhampered by cumbersome garments prone to overheating.

Other Arc Rated Clothing and protection products include Arc Flash Gloves, Arc Flash Coveralls, Arc Flash Suits and Arc Flash Helmets & Visors.

The importance Of Arc Flash Protection

Arc rated clothing and electrical PPE should be worn when working on energised conductors, cables or circuits.

Over 50% of workplace accidents from low voltage switchgear are from arc related faults – they are not confined to medium/high voltage power distribution networks where even small levels of residual voltage can trigger an arc flash. Arc Flash Hazard is a subject that is undergoing increased discussion and scrutiny in today’s safety conscious environment. The intent of the standards in this area is to provide an increased level of safety for the electrical worker.

Put simply, an Arc Flash incident can cause significant injuries, and possible death without the correct procedures in place. Consequently, it is vital that the correct procedures are in place to mitigate the risks and protect against potential accidents.

➡ To find out more about real-life arc flash incidents, and how Arc Rated Clothing has saved lives, read Eddie’s Arc Flash Story.

Featured Product | ProGARM 5530 the best selling premium 13.2 cal/cm² hooded sweatshirt features a warm neck design, ideal for working outside as well as a drawstring hood. Constructed from ProGARM 320gsm VXS+ Inherent Sweat fabric with a brushed inner fleece lining for warmth, it also features ribbed waistband and cuffs for a great fit and the usual front pockets.

Arc Flash Clothing | Arc Flash Hoodie

Arc Rated Clothing | ProGARM 5530


Arc Rated Clothing | Product Selection

The below product guide overviewing Arc Rated Clothing has been designed to help with the selection process of protective garments and clothing to suit the individual requirements of your workplace – ProGARM garments, provide arc flash protection using inherently flame resistant lightweight VXS+ fabrics, potentially saving lives and preventing life changing injuries.

Light but Strong | Innovative Protection Against Arc Flash

ProGARM coveralls are manufactured from a premium VSX+ lightweight fabric with a Lifetime Seam Guarantee providing both arc flash and FR (Flame Resistant) protection with excellent durability for field use by Jointers, Linesmen, Senior Authorised Persons (SAPs and Substation Engineers working on underground cables and overhead lines

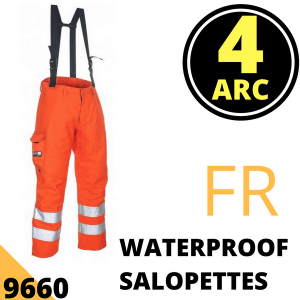

Arc Flash Clothing | ProGARM 9660

Arc Flash Clothing | progarm 9660

ProGARM 9660 Arc Flash Waterproof Salopettes provide protection against arc flash thermal hazards up to 47cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Class 2 hi-vis and Arc Flash European Norms.

Arc Rating | 47 Cal ARC 4

Box Test | 7KA Class 2

IEC 61482-2: 2009 | Class 2 ATPV = 47cal/cm²

➡ For garment material specification, fabric, design, sizing and salopette product information please go to ProGARM 9660.

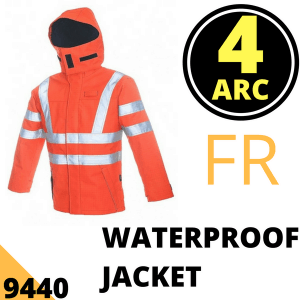

Arc Flash Clothing | ProGARM 9440

Arc Flash Clothing | ProGarm 9440

ProGARM 9440 Arc Flash Waterproof Jacket provides protection against arc flash thermal hazards up to 47cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Class 2 hi-vis and Arc Flash European Norms.

Arc Rating | 47 Cal ARC 4

Box Test | 7KA Class 2

IEC 61482-2: 2009 | Class 2 ATPV = 47cal/cm²

➡ For garment material specification, fabric, design, sizing and jacket product information please go to ProGARM 9440.

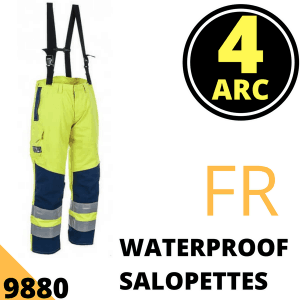

Arc Flash Clothing | ProGARM 9880

Arc Flash Clothing | ProGarm 9880

ProGARM 9880 Arc Flash Waterproof Salopettes provide protection against arc flash thermal hazards up to 47cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Class 2 hi-vis and Arc Flash European Norms.

Arc Rating | 47 Cal ARC 4

Box Test | 7KA Class 2

IEC 61482-2: 2009 | Class 2 ATPV = 47cal/cm²

➡ For garment material specification, fabric, design, sizing and salopette product information please go to ProGARM 9880.

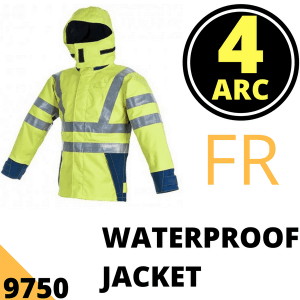

Arc Flash Clothing | ProGARM 9750

Arc Flash Clothing | ProGarm 9750

ProGARM 9750 Arc Flash Waterproof Jacket provides protection against arc flash thermal hazards up to 47cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Class 2 hi-vis and Arc Flash European Norms.

9750 waterproof jacket should be worn with 9880 waterproof salopettes as a two-piece set.

Arc Rating | 47 Cal ARC 4

Box Test | 7KA Class 2

IEC 61482-2: 2009 | Class 2 ATPV = 47cal/cm²

➡ For garment material specification, fabric, design, sizing and jacket product information please go to ProGARM 9750.

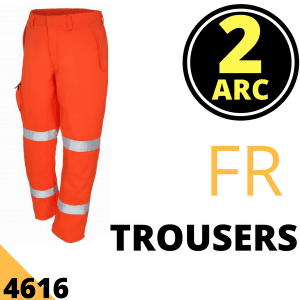

Arc Flash Clothing | ProGARM 4616

Arc Flash Clothing | ProGarm 4616

ProGARM 4616 Arc Flash Trousers provides protection against arc flash thermal hazards up to 8cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Class 1 hi-vis and Arc Flash European Norms. Designed to be worn in conjunction with 4608 arc flash jacket for workers on or near the trackside requiring garments certified to RIS-3279-TOM.

For Ladies arc flash trousers order ProGARM 4614.

Arc Rating | 8 Cal ARC 2

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV = 8cal/cm²

➡ For garment material specification, fabric, design, sizing and trouser product information please go to ProGARM 4616.

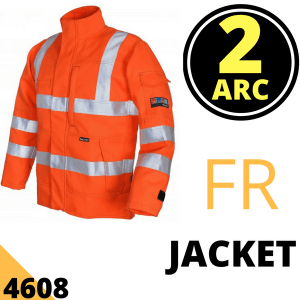

Arc Flash Clothing | ProGARM 4608Arc Flash Clothing | ProGarm 4608

ProGARM 4608 Arc Flash Waterproof Jacket provides protection against arc flash thermal hazards up to 8cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Class 1 hi-vis and Arc Flash European Norms.

Designed to be worn in conjunction with 4616 arc flash trousers for workers on or near the trackside requiring garments certified to RIS-3279-TOM.

Arc Rating | 8 Cal ARC 2

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV = 8cal/cm²

➡ For garment material specification, fabric, design, sizing and jacket product information please go to ProGARM 4608.

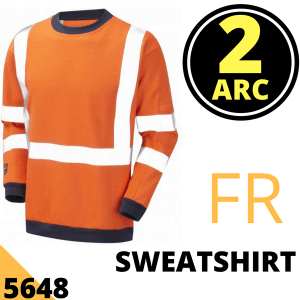

Arc Flash Clothing | ProGARM 5648

Arc Flash Clothing | ProGarm 5648

ProGARM 5648 Arc Flash Sweatshirt provides protection against arc flash thermal hazards up to 21.6cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Class 1 hi-vis and Arc Flash European Norms.

ProGARM 5648 meets the requirements of RIS-3279-TOM for workers on or near the trackside.

Arc Rating | 21.6 Cal ARC 2

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV = 21.6cal/cm²

➡ For garment material specification, fabric, design, sizing and sweatshirt product information please go to ProGARM 5648.

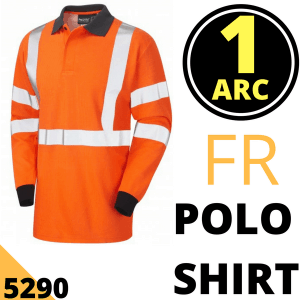

Arc Flash Clothing | ProGARM 5290Arc Flash Clothing | ProGarm 5290

ProGARM 5290 Arc Flash Polo Shirt provides protection against arc flash thermal hazards up to 6cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Class 1 hi-vis and Arc Flash European Norms. ProGARM 5290 meets the requirements of RIS-3279-TOM for workers on or near the trackside.

For Ladies arc flash polo shirt order ProGARM 5292.

Arc Rating | 6 Cal ARC 1

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV = 6cal/cm²

➡ For garment material specification, fabric, design, sizing and polo shirt product information please go to ProGARM 5290.

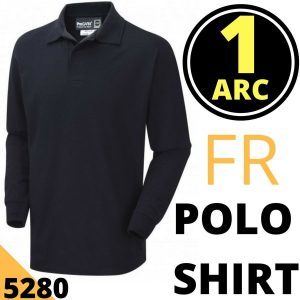

Arc Flash Clothing | ProGARM 5280

Arc Flash Clothing | ProGarm 5280

ProGARM 5280 Arc Flash Polo Shirt provides protection against arc flash thermal hazards up to 7cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Class 1 Arc Flash European Norms.

For Ladies arc flash polo shirt order ProGARM 5282.

Arc Rating | 7 Cal ARC 1

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV = 7cal/cm²

➡ For garment material specification, fabric, design, sizing and polo shirt product information please go to ProGARM 5280.

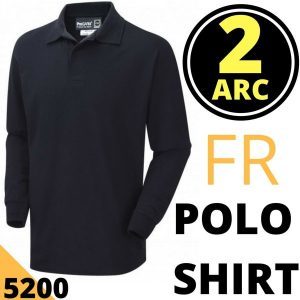

Arc Flash Clothing | ProGARM 5200Arc Flash Clothing | ProGarm 5200

ProGARM 5200 Arc Flash Polo Shirt provides protection against arc flash thermal hazards up to 14.2cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Class 1 Arc Flash European Norms. ProGARM 5200 long sleeved polo shirt is constructed using VXS+ Interlock fabric with soft touch finish.

For Ladies arc flash polo shirt order ProGARM 5202.

Arc Rating | 14.2 Cal ARC 2

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV = 14.2cal/cm²

➡ For garment material specification, fabric, design, sizing and polo shirt product information please go to ProGARM 5200.

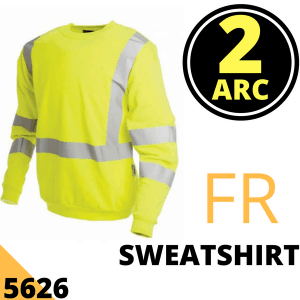

Arc Flash Clothing | ProGARM 5626

Arc Flash Clothing | ProGarm 5626

ProGARM 5626 Arc Flash Sweatshirt provides protection against arc flash thermal hazards up to 13.2cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Class 1 Arc Flash European Norms.

5626 hi vis sweatshirt features an arm panel design with pocket and VXS+ Flame Resistant Jersey fabric.

Arc Rating | 13.2 Cal ARC 2

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV = 13.2cal/cm²

➡ For garment material specification, fabric, design, sizing and sweatshirt product information please go to ProGARM 5626.

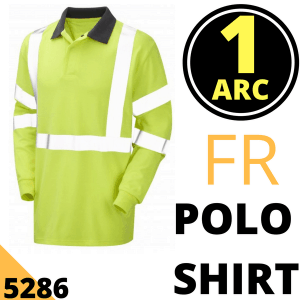

Arc Flash Clothing | ProGARM 5286Arc Flash Clothing | ProGarm 5286

ProGARM 5286 Arc Flash Polo Shirt provides protection against arc flash thermal hazards up to 6.2cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ Test method. ProGARM 5286 long sleeved, hi-vis arc flash polo shirt is constructed using VXS+ Pique Flame Resistant fabric with soft touch finish.

For Ladies arc flash polo shirt order ProGARM 5287. Recommended to be worn with ProGARM 5626 sweatshirt.

Open Arc Test | ATPV=6.2 cal/cm² ELIM=5.6 cal/cm²

Box Test | 4KA Class 1

IEC 61482-2: 2009 | EN 1149

➡ For garment material specification, fabric, design, sizing and polo shirt product information please go to ProGARM 5286.

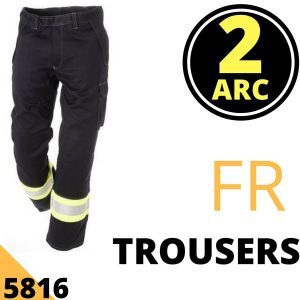

Arc Flash Clothing | ProGARM 5816

Arc Flash Clothing | ProGarm 5816

ProGARM 5816 Arc Flash Trousers provide protection against arc flash thermal hazards up to 12cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Category 2 and Class 1 Arc Flash European Norms.

For Ladies Arc Flash Trousers see ProGARM 5814.

Arc Rating | 12 Cal ARC 2

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV = 12cal/cm²

➡ For garment material specification, fabric, design, sizing and trouser product information please go to ProGARM 5816.

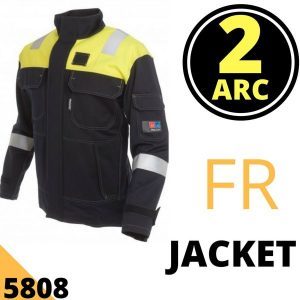

Arc Flash Clothing | ProGARM 5808Arc Flash Clothing | ProGarm 5808

ProGARM 5808 Arc Flash Jacket provides protection against arc flash thermal hazards up to 12cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ Test method and certified to Category 2 and Class 1 Arc Flash European Norms.

Recommended to be worn with ProGARM 5816 trousers.

Arc Rating | 12 Cal ARC 2

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV=12 cal/cm²

➡ For garment material specification, fabric, design, sizing and jacket product information please go to ProGARM 5808.

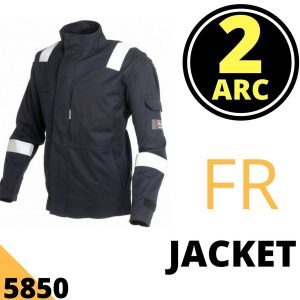

Arc Flash Clothing | ProGARM 5850

Arc Flash Clothing | ProGarm 5850

ProGARM 5850 Arc Flash Jacket provide protection against arc flash thermal hazards up to 9.5cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Category 2 and Class 1 Arc Flash European Norms as well as CE certification.

Features include reflective tape and lightweight VXS+ Flame Resistant fabric.

Arc Rating | 9.5 Cal ARC 2

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV = 9.5cal/cm²

➡ For garment material specification, fabric, design, sizing and jacket product information please go to ProGARM 5850.

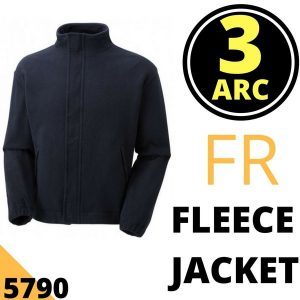

Arc Flash Clothing | ProGARM 5790Arc Flash Clothing | ProGarm 5790

ProGARM 5790 Arc Flash Fleece Jacket provides protection against arc flash thermal hazards up to 32.3cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ Test method and certified to Category 3 and Class 1 Arc Flash European Norms.

Ideal for use in Industrial Electrical, Petrochemical and Utilities & Power generation industries.

Arc Rating | 32.3 Cal ARC 3

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV=32.3 cal/cm²

➡ For garment material specification, fabric, design, sizing and fleece jacket product information please go to ProGARM 5790.

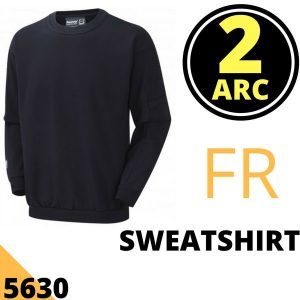

Arc Flash Clothing | ProGARM 5630

Arc Flash Clothing | ProGarm 5630

ProGARM 5630 Arc Flash Sweatshirt provide protection against arc flash thermal hazards up to 14.4cal/cm² according to IEC 61482-2:2009 ‘Open Arc’ test method and certified to Category 2 and Class 1 Arc Flash European Norms.

Tested with 5280 polo shirt, this arc flash sweatshirt produces results of Class 2 Arc Flash & 31.0 cal/cm² protection.

Arc Rating | 14.4 Cal ARC 2

Box Test | 4KA Class 1

IEC 61482-2: 2009 | Class 1 ATPV = 14.4cal/cm²

➡ For garment material specification, fabric, design, sizing and sweatshirt product information please go to ProGARM 5630.


Arc Flash Clothing | ProGARM 5808Arc Flash Clothing | ProGarm 5430

ProGARM 5430 Arc Flash T-Shirt provides Class 1 protection against arc flash thermal hazards. This long sleeved t-shirt from ProGARM uses VXS+ jersey Flame Resistant fabric making it ideal for use as an extra protective layer or to be worn on its own.

5430 is colour matched to other navy ProGARM arc flash clothing garments.

Arc Rating | Not Applicable

Box Test | 4KA Class 1

IEC 61482 | EN 1149

➡ For garment material specification, fabric, design, sizing and jacket product information please go to ProGARM 5808.


Clothing Stock | the range of garments consists of Core Products featured here – we stock, or have in production garments within these product ranges in an assortment of sizes, cal ratings and arc flash protection levels. In-Stock coveralls can be dispatched within 24hours from our warehouse, or for stock holding, please contact the UK sales office to discuss further. Branded clothing can be provided subject to MOQ.

Protective Clothing technical Specification

Description Order Code Open Test Method Cal Rating Box Test Method Class Rating
Polo Shirt – Navy 5200 14.2 cal/cm² Class 1
Ladies Polo Shirt – Navy 5202 14.2 cal/cm² Class 1
Polo Shirt – Navy 5280 7 cal/cm² Class 1
Ladies Polo Shirt – Navy 5282 7 cal/cm² Class 1
Sweatshirt – Navy 5630 14.4 cal/cm² Class 1
Hoodie – Navy 5530 13.2 cal/cm² Class 1
T-Shirt – Navy 5430 Class 1
Softshell Jacket – Navy 9931 28 cal/cm² Class 1
Jacket – Navy 5850 9.5 cal/cm² Class 1
Lined Fleece Jacket – Navy 5790 32.3 cal/cm² Class 1
Trouser – Navy 7638 9.5 cal/cm² Class 1
Ladies Trouser – Navy 7636 9.5 cal/cm² Class 1
Combat Trousers – Navy 7720 12.8 cal/cm² Class 1
Jacket – Navy/Yellow 5808 12 cal/cm² Class 1
Trouser – Navy/Yellow 5816 12 cal/cm² Class 1
Ladies Trouser – Navy/Yellow 5814 12 cal/cm² Class 1
Polo Shirt – Hi Viz Yellow 5286 Class 1
Ladies Polo Shirt – Hi Viz Yellow 5287 Class 1
Sweatshirt – Hi Viz Yellow 5626 13.2 cal/cm² Class 1
Softshell Jacket – Hi Viz Yellow 9930 28 cal/cm² Class 2
Trouser – Hi Viz Yellow 7418 9.5 cal/cm² Class 1
Ladies Trouser – Hi Viz Yellow 7414 9.5 cal/cm² Class 1
Waterproof Jacket – Hi Viz Yellow/Navy 9750 47 cal/cm² Class 2
Waterproof Salopettes – Hi Viz Yellow 9880 47 cal/cm² Class 2
Lightweight Waterproof Jacket Hi Viz Yellow/Navy 9720 25 cal/cm² APC 2
Lightweight Waterproof Salopettes Hi Viz Yellow/Navy 9820 25 cal/cm² APC 2
Polo Shirt – Hi Viz Orange 5290 6 cal/cm² Class 1
Ladies Polo Shirt – Hi Viz Orange 5292 6 cal/cm² Class 1
Sweatshirt – Hi Viz Orange 5648 21.6 cal/cm² Class 1
Jacket – Hi Viz Orange 4608 8 cal/cm² Class 1
Trouser – Hi Viz Orange 4616 8 cal/cm² Class 1
Ladies Trouser – Hi Viz Orange 4614 8 cal/cm² Class 1
Waterproof Jacket – Hi Viz Orange 9440 47 cal/cm² Class 2
Waterproof Salopettes – Hi Viz Orange 9660 47 cal/cm² Class 2
Lightweight Waterproof Jacket – Hi Viz Orange 9422 8 cal/cm² APC 2
Lightweight Waterproof Salopettes – Hi Viz Orange 9622 8 cal/cm² APC 2
Baselayer Top – Navy 8210 4.9 cal/cm²
Baselayer Leggings – Navy 8220 4.9 cal/cm²
Balaclava – Navy 8100
Snood – Navy 8300
Helmet Liner – Navy 8400
Boxer Briefs – Navy 8700
Fire Rated Bra – Navy 8770
Compression Socks – Navy 2101
General Boot Socks – Navy 2102


Featured Arc Rated Clothing | ProGARM 9720 is a premium quality Hi-Viz Yellow/Navy Arc Flash Lightweight Waterproof Jacket designed to be worn with ProGARM 9820 waterproof salopettes as a two-piece set. ProGARM 9720 meets numerous EN Standards to offer the wearer ultimate protection in wet weather environments.

ProGARM 9720 Lightweight Waterproof Jacket

ProGARM 9720 Lightweight Waterproof Jacket

PROGARM – DISTRIBUTORS, STOCKISTS & SUPPLIERS

Arc Flash Clothing Protection

Arc Flash Clothing | Thorne & Derrick understand how critical it is to have reliable, highest quality personal protection equipment (PPE), clothing and arc workwear available from stock at competitive prices – protecting utility workers against arc flash dangers posed during maintenance on underground electric cables, overhead line conductors or electrical equipment.

Arc Flash Clothing Protection PPE

 Arc Workwear | Jackets | Arc Flash Suits | Trousers | Sweatshirts | Helmets & Visors | Arc Flash Gloves

All ProGARM products conform to the European Directives regulating PPE and display the correct care labels to guarantee certification and traceability. Thorne & Derrick provide competitive prices and fast delivery from stock for the complete range of ProGARM arc flash protection, clothing and garments.
