33kV XLPE Cables & Accessories
33kV MV HV Cables
XLPE
Contact Thorne & Derrick for competitive prices and UK or international delivery on the complete range of 33kV cables with XLPE insulation for medium/high voltage (MV-HV) power systems manufactured by TF Kable.
MV HV cables are available manufactured to DIN VDE 0276-620, BS 6622 and BS 7870 standards which includes XLPE insulated cables with single or 3 core construction, armour/unarmoured and either copper tape or copper wire screen – cables manufactured with both copper or aluminium conductors.
The following table provides an overview of the 33kV MV HV Cable product range for medium voltage XLPE insulated cables – a complete range of MV HV Joints & Terminations are also available for 33kV cables.
Joints, Terminations & Connectors For XLPE Cables
Complete range of utility approved cable accessories manufactured by 3M, Pfisterer, Nexans Euromold and Prysmian to joint, terminate and connect MV-HV cables up to 33kV with polymeric type XLPE insulation.
➡ 33kV Termintions Heat Shrink | 33kV Joints Cold Shrink | 33kV Separable Connectors
 |
Cable Designation | Cable Standard | Nominal Voltage (kV) | Number of Cores | Cross Sections (mm2) | MV HV Cable Application |
 |

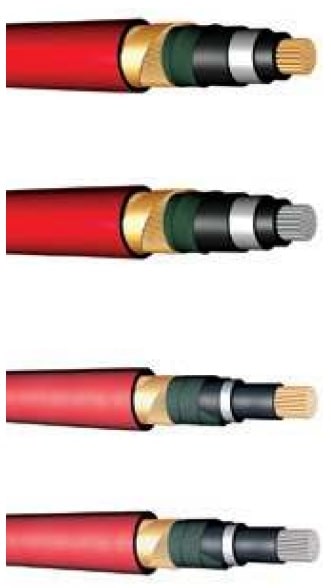

N2XSY NA2XSY N2XS2Y NA2XS2Y |
DIN VDE 0276-620 | 6/10(12) kV 12/20(24 )kV |
1 | 35 ÷ 630 | XLPE insulated power cable, for power networks: ground, air and ducts. |
| 18/30(36) kV | 50 ÷ 630 | |||||
| YHKXS YHAKXS XHKXS XHAKXS |
ZN-TF-501 | 3.6/6(7.2) kV 6/10(12) kV 8.7/15(17.5) kV 12/20(24) kV 18/30(36) kV |
1 | 35 ÷ 1000 | ||

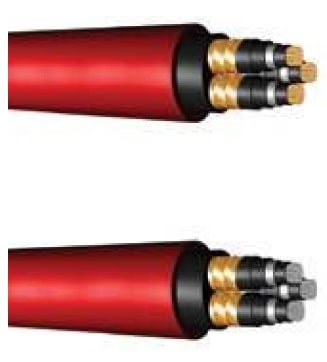

| N2XSY NA2XSY N2XS2Y NA2XS2Y |
DIN VDE 0276-620 | 6/10(12) kV 12/20(24) kV |
3 x 1* | 35 ÷ 400 | XLPE insulated power cable, for power networks: ground, air and ducts. * Single core cables in triplex formation. |
|
| 18/30(36) kV | 50 ÷ 400 | |||||
 |
N2XS(F)2Y NA2XS(F)2Y | DIN VDE 0276-620 | 6/10(12) kV 12/20(24) |
1 | 35 ÷ 630 | XLPE insulated longitudinally sealed power cable, for power networks: ground, air and ducts. |
| 18/30(36) kV | 50 ÷ 630 | |||||

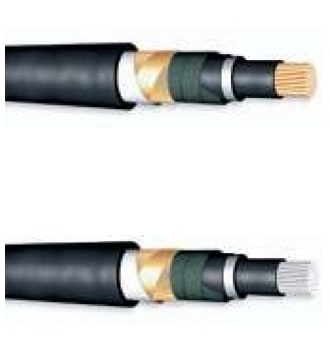

| XUHKXS XUHAKXS |
ZN-TF-501 | 3.6/6(7.2) kV 6/10(12) kV 8.7/15(17.5) kV 12/20(24) kV 18/30(36) kV |
1 | 35 ÷ 1000 | ||
| N2XS(F)2Y NA2XS(F)2Y |
DIN VDE 0276-620 | 6/10(12) kV 12/20(24) kV |
3 x 1* | 35 ÷ 400 | XLPE insulated longitudinally sealed power cable, for power networks: ground, air and ducts. | |
| 18/30(36) kV | 50 ÷ 400 | |||||
|
N2XS(F)2YNA2XS(F)2Y | DIN VDE 0276-620 | 6/10(12) kV 12/20(24) kV |
1 | 35 ÷ 630 | XLPE insulated longitudinally and radial sealed power cable, for power networks: ground, air and ducts. |
| 18/30(36) kV | 50 ÷ 630 | |||||
| XRUHKXS XRUHAKXS |
ZN-TF-501 | 3.6/6(7.2) kV 6/10(12) kV 8.7/15(17.5) kV 12/20(24) kV 18/30(36) kV |
1 | 35 ÷ 1000 | ||
| N2XS(F)2Y NA2XS(F)2Y |
DIN VDE 0276-620 | 6/10(12) kV 12/20(24) kV |
3 x 1* | 35 ÷ 400 | XLPE insulated longitudinally and radial sealed power cable, for power networks: ground, air and ducts. * Single core cables in triplex formation. |
|
| 18/30(36) kV | 50 ÷ 400 |
|
Cable Designation | Cable Standard | Nominal Voltage (kV) | Number of Cores | Cross Sections (mm2) | MV HV Cable Application |
 |
N2XSEY NA2XSEY N2XSE2Y NA2XSE2Y N2XSY NA2XSY N2XS2Y NA2XS2Y |
DIN VDE 0276-620 | 6/10(12) kV | 3 | 35 ÷ 630 | XLPE insulated power cable, for power networks: ground, air and ducts. |
| Y3HKXS Y3HAKXS X3HKXS X3HAKXS YHKXS YHAKXS XHKXS XHAKXS |
ZN-TF-502 | 3.6/6(7.2) kV 6/10(12) kV 8.7/15(17.5) kV 12/20(24) kV 18/30(36) kV |
3 | 35 ÷ 400 | ||
| TSLE | NEN 136 | 7/12 kV 12/24 kV |
1 3 x 1 |
50 ÷ 400 50 ÷ 400 |
||
| AXLJ-LT AXKJ-LT |
SS 424 14 16 IEC 60502 |
7/12 kV 12/24 kV |
1 3 |
50 ÷ 240 50 ÷ 240 |
||
|

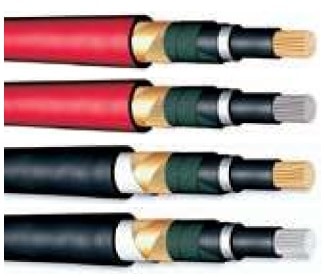

Cu/XLPE/CWS/PVC Cu/XLPE/CTS/PVC Cu/XLPE/CWS/MDPE Cu/XLPE/CTS/MDPE Al/XLPE/CWS/PVC Al/XLPE/CTS/PVC Al/XLPE/CWS/MDPE Al/XLPE/CTS/MDPE |
BS 6622:1999 | 3.6/6(7.2) kV 6/10(12) kV 8.7/15(17.5) kV 12/20(24) kV 18/30(36) kV |
1 | 50 ÷ 1000 | XLPE insulated unarmoured power cable, for power networks: ground, air and ducts. |
 |
Cu/XLPE/CWS/PVC/AWA/PVC Cu/XLPE/CTS/PVC/AWA/PVC Cu/XLPE/CWS/PVC/AWA/MDPE Cu/XLPE/CTS/PVC/AWA /MDPE Al/XLPE/CWS/PVC/AWA/PVC Al/XLPE/CTS/PVC/AWA/PVC Al/XLPE/CWS/PVC/AWA /MDPE Al/XLPE/CTS/PVC/AWA /MDPE |
BS 6622:1999 | 3.8/6.6(7.2) kV 6.35/11(12) kV 8.7/15(17.5) kV 12.7/22(24) kV 19/33(36) kV |
1 | 50÷1000 | XLPE insulated longitudinally sealed power cable, for power networks: ground, air and ducts. |
|
Cu/XLPE/CWS/PVC Cu/XLPE/CTS/PVC Cu/XLPE/CWS/MDPE Cu/XLPE/CTS/MDPE Al/XLPE/CWS/PVC Al/XLPE/CTS/PVC Al/XLPE/CWS/MDPE Al/XLPE/CTS/MDPE |
BS 6622:1999 | 3.8/6.6(7.2) kV 6.35/11(12) kV 8.7/15(17.5) kV |
3 | 35 ÷ 400 | XLPE insulated armoured power cable (metallic screen collective or individual), for power networks: ground, air and ducts. |
 |
Cu/XLPE/CWS/PVC/SWA/PVC Cu/XLPE/CTS/PVC/SWA/PVC Cu/XLPE/CWS/PVC/SWA/MDPE Cu/XLPE/CTS/PVC/SWA /MDPE Al/XLPE/CWS/PVC/SWA/PVC Al/XLPE/CTS/PVC/SWA/PVC Al/XLPE/CWS/PVC/SWA /MDPE Al/XLPE/CTS/PVC/SWA /MDPE |
BS 6622:1999 | 3.8/6.6(7.2) kV 6.35/11(12) kV 8.7/15(17.5) kV 12.7/22(24) kV |
3 | 35÷400 | XLPE insulated armoured power cable (metallic screen collective or individual), for power networks: ground, air and ducts. |
| 19./33(36) kV | 50÷400 | |||||
 |
Cu/XLPE/CWS/MDPE Al/XLPE/CWS/MDPE Cu/XLPE/CWS/LW/MDPE Al/XLPE/CWS/LW/MDPE |
BS 7870 – 4.10 | 6.35/11(12) kV | 1 | 240÷800 Cu70÷300 Al. | XLPE insulated power cable and longitudinally sealed power cable for power networks: ground, air and ducts. |
| 19/33(36) kV | 120÷ 800Cu and Al |
