Cabinet Base Sealants – Highways Agency & TfL Approved Specification (Filoform 205883)

Cabinet Base Sealants - Highways Agency & TfL Approved Specification (Filoform 205883)

Cabinet Base Sealants – Highways Agency & TfL Approved Specification (Filoform 205883)

Sealing Cabinets

Filoform Cabinet Base Sealant is designed for use in LV distribution cabinets, public lighting cabinets, feeder pillars, cabinets for traffic control and outdoor transformer station installations.

The casting resin prevents ingress of pests and weed growth or the penetration of the roots of plants. In addition, a solid floor improves the climate within the stations.

This ensures minimal interference and extends the life of the components.

Filoform’s cabinet base sealants and duct sealing system has been approved for use on the Highways & TFL sites (Filoform 205883) and is suitable to use in their network.

Cabinet base sealant is also availaible in a clear opaque colour which is used if a re-enterable seal is required.

Filoform 205883

Cabinet Base Sealants – Black

Features

  • Filoform Sealant 205883
  • Product Name: Cabinet Base Sealant 2 x 2,5Ltr. MV
  • Colour: Black
  • Content: 5000ml
  • Packaged in set with 2 x 2.5 L.
  • Resin contains no MDI
  • Prevents ingress of moisture, pests and the instrusion of weeds, roots and plants
  • Sealant improves the climate inside the street cabinets and transformer stations
  • Decrease of the sensitivity to interference of the equipment
  • Extension of the life of the components
  • Quick and easy to apply sealant
  • Good flow properties
  • Self levelling characteristics
  • Good adhesion
  • Smooth and non-tacky surface
  • Sealant is easy to remove for local input of additional cables and pipes; after wards easy to finish
Filoform's cabinet base sealants & duct sealing system has been approved for use on the Highways & TFL sites (Filoform 205883)

Filoform’s cabinet base sealants & duct sealing system has been approved for use on the Highways & TFL sites (Filoform 205883)



Properties Unit Value
Potlife (process time) 5°C minutes 90
Potlife (process time) 23°C minutes 75
Potlife (process time) 35°C minutes 60
Viscosity (mixture) 25°C Pa.s 1
Gel-time minutes 120
Density g / cm³ 1.3
Hardness Shore D 18
Water absorption (30d/23°C) % < 1.0
Weight loss 28d/120°C % 0.8



Cabinet Base Sealants Filoform 205883

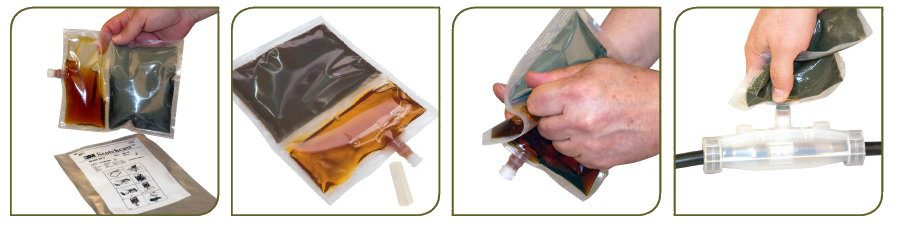

Installation Instructions

Cabinet Base Sealants - Filoform 205883- Installation Instructions
