HV EHV Cable Tool

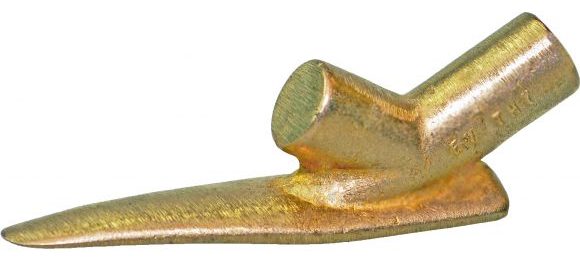

Alroc EV HTB
EV HTB manufactured by Alroc enables the user to spread and to tear off the outer-sheath with its aluminium shield previously cut and scored making possible the positioning of the EGA to spread and remove the outer sheath.
Removing the outer sheath to prepare the cable ready for the installation of joints, terminations or connectors – the cable preparation tools are quick, light to hold and easy to use by the Jointer when stripping jacket/sheath from LV (Low), Medium (MV) and (HV) High Voltage Cables.
The EV HTB tool is made in bronze aluminium for added durability.
Functionality
- Cut / saw cables
- Remove the outer sheath from high voltage cables
- Crimp connectors
- Work on the outer sheath of HV cables
- Remove / work on the shield
- Remove the outer semi-conductor
- Remove the insulation
- Shape the insulation of high voltage cables
- Tool kits overview
- Maintain / hang / fix cables
- Grounding
Alroc EV HTB
Cable Tool Specifications
| Order Code | Description | Diameter | Dimensions | Weight without box |
Packaging | ||
| Length | Width | Height | |||||
| Alroc EV HTB | HV EHV Cable Tool – Splitting Tools for Outer Sheath & Shield |
0 – 240 mm 0,000 – 9,449 in |
230 mm 9,055 in |
15 mm 0,591 in |
40 mm 1,575 in |
0,24 Kg | None |
COMPLEMENTARY TOOLS
- EGA – HV and EHV cable’s outer sheath and shield spreaders
- DMSR/80-160 – HV cable outer sheath stripping tool
- EVP – HV and EHV cable’s lead sheath splitters

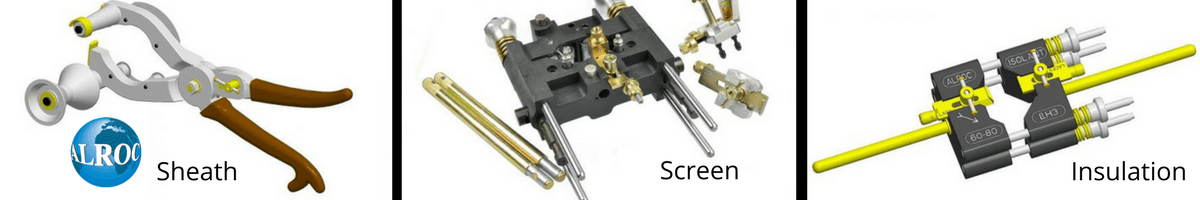

Alroc Tools – Cable Jointing Tools (MV HV)
JOINTERS TOOLS
MV HV EHV
- MV Medium Voltage Cables 11kV 33kV
- HV High Voltage Cables 66kV
- EHV Extra High Voltage Transmission & Distribution Cables 132kV 245kV 400kV
For further information about Alroc cable tools for removing cable screen from MV-HV cables please see below.
T&D also distribute Cembre and Klauke tools for cable cutting and cable crimping of copper and aluminium conductors.
Alroc EV HTB HV EHV Cable Tool Splitting Tools for Outer Sheath & Shield – Data SheetDownload
