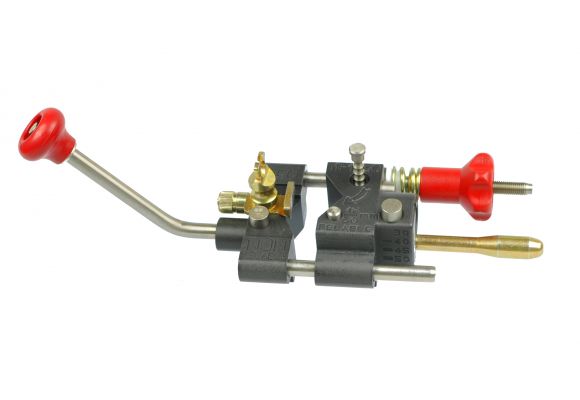

Alroc MF1+/60 Tool – Shave & Chamfer Bonded Semicon up to 60mm Diameter

Alroc MF1+/60

Stocked & Supplied by Thorne & Derrick | Tools for Jointing, Termination & Preparation of MV HV Cables

Multifunction Tools

ALROC MF1+/60

MF1+/60 multifunction cable tools are manufactured by Alroc and used by MV-HV jointers to remove the outer sheath (PE-PVC-PR) with a straight and neat cut and remove the insulation and shape the insulation with a smooth finish.

The Alroc MF1+/60 Cable Jointing & Preparation Tool includes an embedded sliding thrust to set semiconductor remaining length, along with a fine tuning of blade with a ‘click’ for each 1/10 mm.

Alroc - Cable Jointing Tools

Alroc MF1+/60

– Technical Specification

Cable Tool Part Number	Diameter	Tool Capacity			MF1+/60 Dimensions
		Thickness capacity	Angle of the chamfer on the semiconductor	Remaining length of the semiconductor	Length	Width	Height
Alroc MF1+/25	14 – 44 mm 0,551 – 1,732 in	0,4-1,4 mm / 0,016-0,055 in	14,5°	25-30-40-45 mm / 0,984- 1,181- 1,575- 1,772 in	190 mm 7,480 in	85 mm 3,346 in	125 mm 4,921 in
Alroc MF1+/60	18 – 60 mm 0,709 – 2,362 in	0,4-1,4 mm / 0,016-0,055 in	14,5°	30-40-45-50-55 mm / 1,181- 1,575- 1,772- 1,969- 2,165 in	305 mm 12,008 in	85 mm 3,346 in	100 mm 3,937 in

Spare Tool Parts for Use with Alroc MF1+/60

LASCR1 – Spare blade for bonded semiconductor
PER – Quick set up right angled 90° handle

Tool Options

SRC-D – Scoring stylus for peelable semiconductor with chamfer on the transition
SR – Scoring stylus for peelable semiconductor
SCH – Chamfering stylus for insulation
PCR2 – Quick set up right angled 45° handle
TSA – Silicon tube

Associated Preparation & Jointing Tools for MV HV Cables

MF1+/25 – Multifunction Tool for Bonded Semiconductor

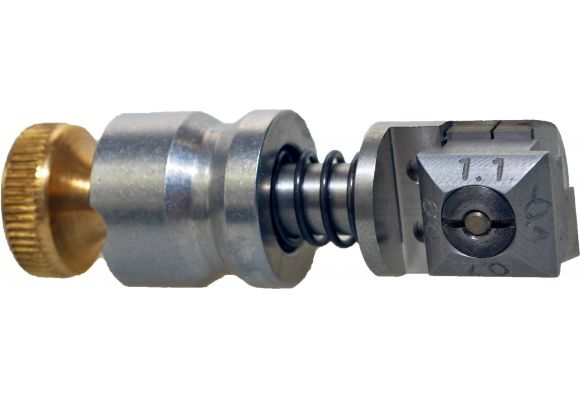

SRC – Scoring Stylus for Peelable Semiconductor with Chamfer (Pictured)
