Alroc MF3NP/40 Tool – Strip Outer Sheath, Bonded Semicon & Insulation up to 40mm Diameter

Alroc MF3NP/40

Alroc MF3NP/40

Stocked & Supplied by Thorne & Derrick | Tools for Jointing, Termination & Preparation of MV HV Cables

Multifunction Tools

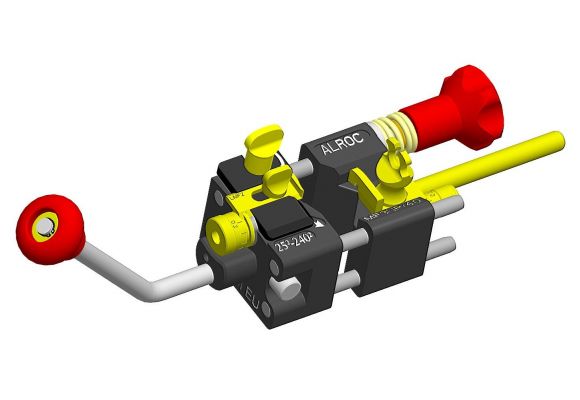

ALROC MF3NP/40

MF3NP/40  multifunction cable tools are manufactured by Alroc and used by MV-HV jointers to remove the outer sheath (PE-PVC-PR) with a straight and neat cut, remove the bonded semiconductor with a chamfer and leave a minimum remaining length of 40 mm / 1.57 inch and also remove the insulation with a straight and neat cut. The pitch of the Alroc MF3NP/40 Cable Jointing & Preparation Tool can also be tuned.

Please note: Silicon is required for the removal of bonded semiconductor.

Alroc - Cable Jointing Tools

Alroc MF3NP/40 – Technical Specification

Cable Tool Part Number Diameter Tool Capacity MF3NP/40 Dimensions
Non peelable semiconductor screen thickness capacity Insulation thickness capacity Chamfer angle on the non peelable semiconductor screen Length Width Height
MF3NP/40 16 – 40 mm
0,630 – 1,575 in		 0.4 – 1.4 mm
0.026 – .06 inch		 7 mm
0.28 inch		 14.5° 165 mm
6,496 in		 80 mm
3,150 in		 100 mm
3,937 in

SPARE TOOL PARTS FOR USE WITH ALROC MF3NP/40

LMF2 – Spare blade for primary insulation
PCR – Quick set up right angled 45° handle
196855 – Straight handle M10
108098 – Clamping knob for blade
LASCR1 – Spare blade for bonded semiconductor

Associated Preparation & Jointing Tools for MV HV Cables

GRI-RTE – Scraper for residues of bonded semiconductor screen with protective case
LHA – Tool to chamfer insulation

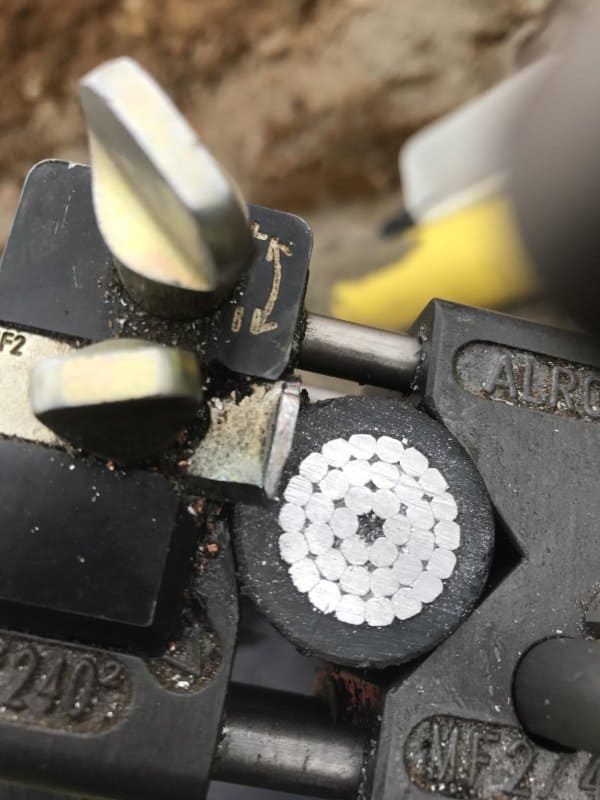

Alroc MF2 40 Tool – Strip Outer Sheath & Insulation up to 40mm Diameter

Pictured: HV cable jointer removing XLPE insulation from 11kV Triplex (BS7870) high voltage power cables

Medium & High Voltage Cables | Jointing, Preparation & Termination Tools

Jointers Tools

Cable Tools Jointing Cables Alroc MV HV 11kV 33kV

MV HV EHV

  • MV Medium Voltage Cables 11kV 33kV
  • HV High Voltage Cables 66kV
  • EHV Extra High Voltage Transmission & Distribution Cables 132kV 245kV 400kV

MV HV – Medium & High Voltage Cable Joints, Terminations & Connectors (11kV 33kV EHV)

Pfisterer | 3M | Nexans | Prysmian – Joints, Terminations & Connectors MV HV

➡ For further information about Alroc cable tools for removing cable screen from MV-HV cables please see below.

T&D also distribute Cembre tools for cable cutting and cable crimping of copper and aluminium conductors.
