Cembre A100-4ESI 500sqmm Transformer Cable Lugs LV HV 11kV 33kV

Transformer Cable Lugs (4 Hole) For LV 11kV & 33kV Cable Termination

Cembre A100-4ESI 500sqmm Transformer Cable Lugs LV HV 11kV 33kV

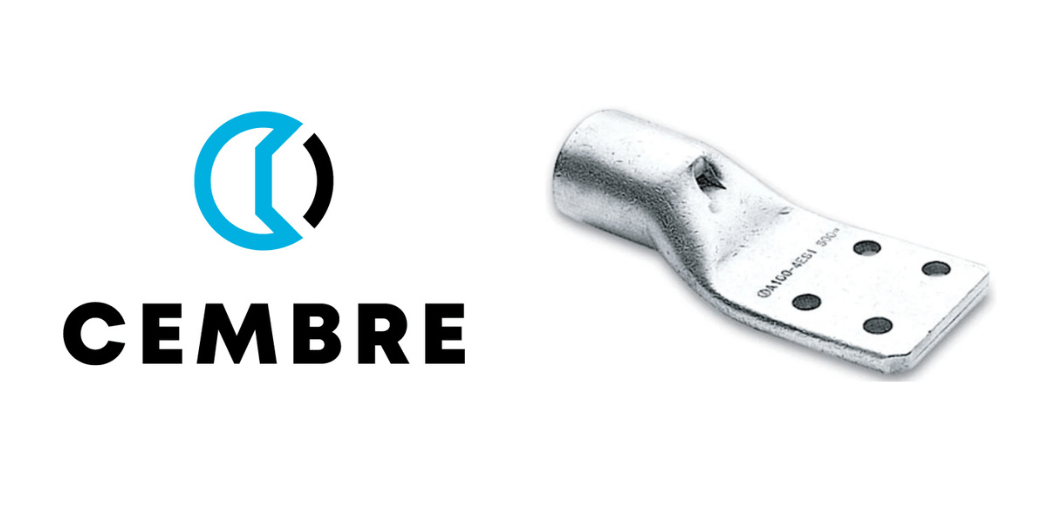

Cembre A100-4ESI is a transformer cable lug available in high purity copper tube, annealed and tin plated – suitable for copper and flexible copper cables up to 11kV and a maximum cross section of 500sqmm stranded copper.

500sqmm Transformer Cable Lug LV HV

Cembre A100-4ESI

  • Cembre Part Ref – A100-4ESI
  • Cable Lug Material – Copper Tube
  • Connect, Crimp or Terminate – Stranded Copper Conductor 500sqmm
  • Voltages – 600/1000V 11kV
  • No of Holes – 4
  • Stud Hole Size – M8 8mm
  • Øi – 30.3mm
  • B – 61mm
  • L – 139mm
  • M – 20mm
  • N – 15mm
  • Pack Quantity – 10 A100-4ESI Transformer Cable Lugs
  • Product Type – Transformer Cable Lug LV HV

Install A100-4ESI using Cembre ECW-H3D Crimping Tool and die set Cembre ME100-3D for 500sqmm cable.

Cembre A100-4ESI - Dimensions

Cembre A100-4ESI – Dimensions
