Cembre A160-4ESI 800sqmm Transformer Cable Lugs LV HV 11kV 33kV
Cembre A160-4ESI 800sqmm Transformer Cable Lugs LV HV 11kV 33kV

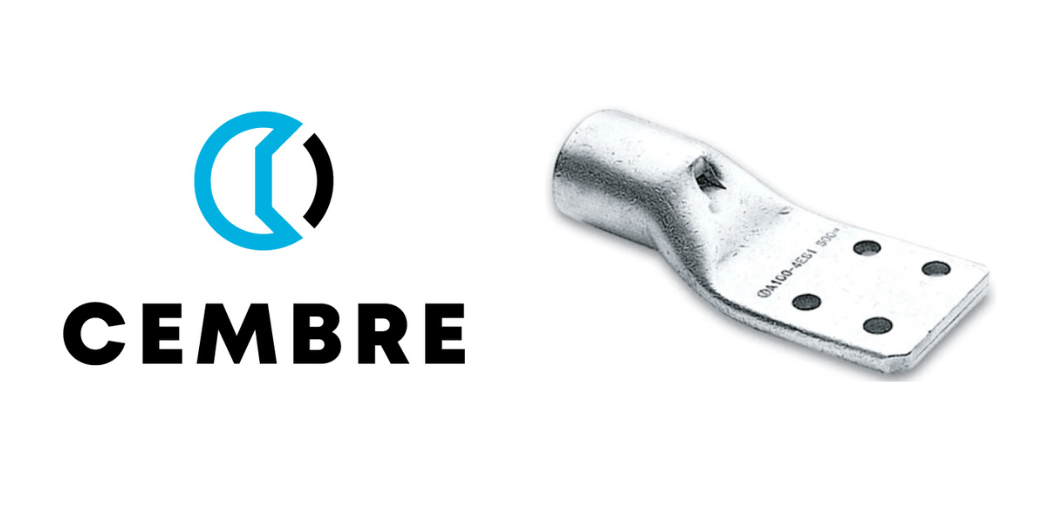

Cembre A160-4ESI is a transformer cable lug available in high purity copper tube, annealed and tin plated – suitable for copper and flexible copper cables up to 11kV and a maximum cross section of 800sqmm stranded copper.
800sqmm Transformer Cable Lug LV HV
Cembre A160-4ESI
- Cembre Part Ref – A160-4ESI
- Cable Lug Material – Copper Tube
- Connect, Crimp or Terminate – Stranded Copper Conductor 800sqmm
- Voltages – 600/1000V 11kV
- No of Holes – 4
- Stud Hole Size – M8 8mm
- Øi – 38mm
- B – 61mm
- L – 158mm
- M – 20mm
- N – 15mm
- Pack Quantity – 8 A160-4ESI Transformer Cable Lugs
- Product Type – Transformer Cable Lug LV HV
Install A160-4ESI using Cembre RHU520 Crimping Tool and die set Cembre MK50P-520 for 800sqmm cable.
Cembre A100-4ESI – Dimensions
CRIMPING, Jointing & Terminating 11kV 33kV Cables
T&D are Main Distributors for leading manufacturers including 3M, Nexans and Pfisterer cable jointing and terminating systems for MV-HV cables: this includes heat shrink cable terminations, cold shrink terminations and separable connectors from Nexans Euromold.
MV HV Joints, Terminations & Connectors to suit Schneider, ABB, Siemens, Lucy Electric and all type of MV-HV electrical distribution equipment and high voltage power distribution transformers operating at 11kV, 33kV, 66kV and other local network voltages.
- Substations With Air Insulated Switchgear (AIS)
- MV Medium Voltage Ring Main Units (RMU’s)
- GIS HV High Voltage Gas Insulated Switchgears
Thorne & Derrick – UK Specialist Distributor of LV MV HV Electrical Equipment
Transformer Cable Lugs (4 Hole) For LV 11kV & 33kV Cable TerminationDownload
