Cembre A120-4ESI
Transformer Lugs LV HV 11kV

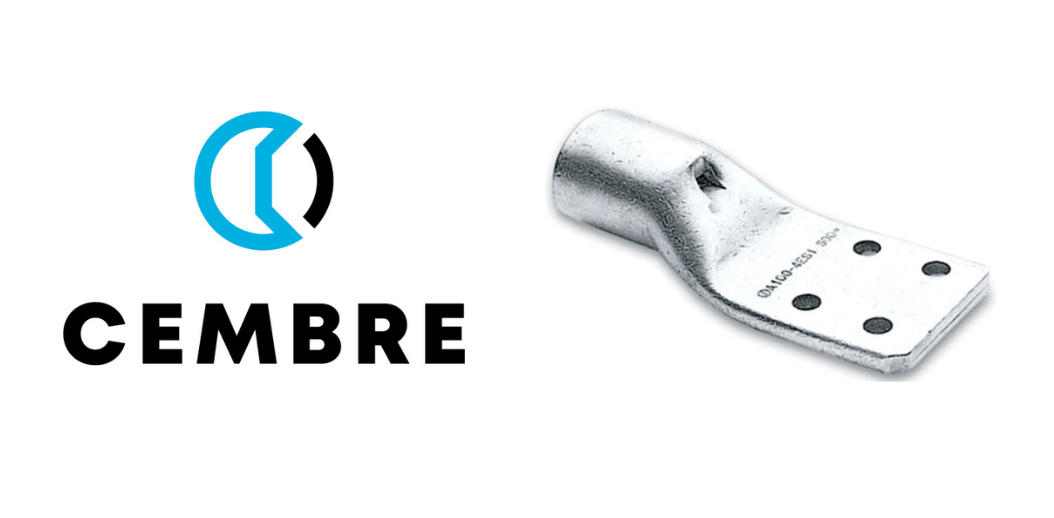

Cembre A120-4ESI is a transformer cable lug available in high purity copper tube, annealed and tin plated – suitable for connecting and crimping copper and flexible copper conductors and cables up to 11kV and a maximum cross section of 630sqmm stranded copper.
The transformer cable lugs manufactured by Cembre features 4 x M8 stud holes and are designed to connect and terminate power cables to most common transformer fixings in accordance with ESI standards.

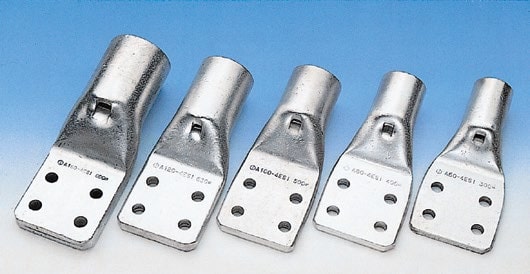

Cembre A-4ESI series of transformer cable lugs are made from high purity electrolytic copper tube (body and fixing), annealed and tin plated
630sqmm Transformer Cable Lug LV HV
Cembre A120-4ESI
- Cembre Part Ref – A120-4ESI
- Cable Lug Material – Copper Tube
- Connect, Crimp or Terminate – Stranded Copper Conductor 630sqmm
- Voltages – 600/1000V 11kV | Medium Voltage (MV) – High Voltage Cable Lugs 33kV are also available. Contact T&D
- No of Holes – 4
- Stud Hole Size – M8 8mm
- Cable Lug Øi – 33.4mm
- B – 61mm
- L – 144mm
- M – 20mm
- N – 15mm
- Pack Quantity – 10 A120-4ESI Transformer Cable Lugs
- Product Type – Transformer Cable Lug LV HV
- See also | Cable Crimping Tools | Cable Cutting Tools
Cable Crimping Tools
Install A120-4ESI using Cembre ECW-H3D Crimping Tool and die set Cembre ME120-3D for 630sqmm cable.
Pictured | Cembre HT131-C, the industry standard hydraulic compression tool for installing copper and aluminium lugs, connectors and splices up to 400sqmm to all cables, switchgear and transformers distributing electrical power at LV. MV & HV.
Cembre tools provide a secure and reliable integrated cable crimping and electrical connection system – as a leading manufacturer that develops and manufactures systems for electrical connections including Connectors, Dies Sets & Tools.
Cembre A120-4ESI – Dimensions
