Cembre B-TC320NDE Battery Cable Cutting Tool

Cembre B-TC320NDE Battery Cutting Tool

B-TC320NDE

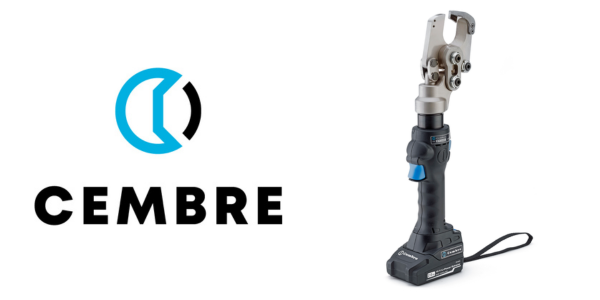

The Cembre B-TC320NDE is a new generation of hand-held cordless tools, characterised by a “Bilinear” mechanical design.

Cembre B-TC320NDE battery cutting tools are designed for use by overhead linesmen for cutting copper, aldrey, aluminium, aluminium-steel cables, steel ropes and steel rods with a maximum overall cable diameter of 32 mm and operating temperature of -15 to +50 ° C

Cembre cutting tool blades are manufactured from high strength steel and heat treated to ensure extended service life – the cable cutting tool head rotates through 180 degrees enabling the user to cut cables in the most comfortable position and can be opened easily to allow cutting of running cables.

New Li-Ion 18.0V – 2.0Ah batteries offer a higher capacity, while greater cutting speed and cutting force result from a revitalised hydraulic system.

Two batteries and a charger are included with the tool, which can be used to charge all tools in the Cembre range, as well as a plastic carrying case suitable for storing the tool and accessories.

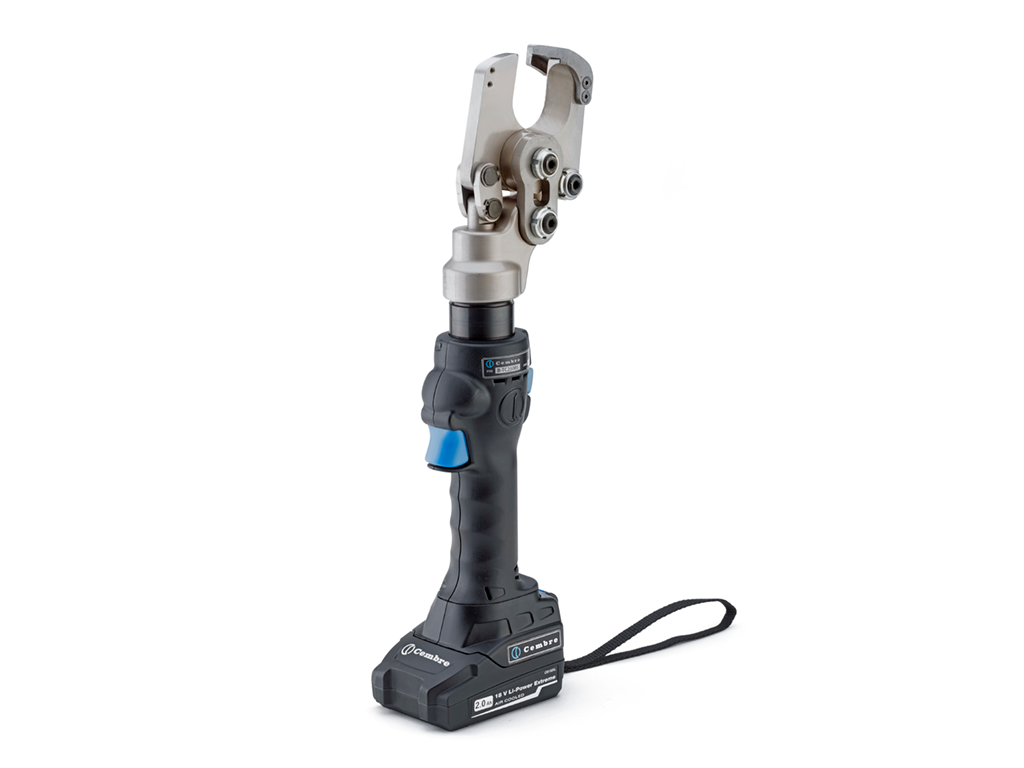

Cembre B-TC320NDE cutting tool

Specification

• Max Cutting Diameter: 32mm
• Operating temperature: -15 to +50 ° C
• Dimensions: 444mm x 136mm x 81mm
• Cable Cutter Weight: 3.95g
• Battery Material: Li-Ion
• Battery Voltage: 18V
• Battery Current: 2 Ah

Cembre cutting tools should be cleaned daily (or after use) with a clean cloth removing any residue in particular particles close to pivots and moveable parts. Every six months it is essential check the oil level in the reservoir. If necessary fill oil level to the top lip and remove any excess air from the reservoir.

The cutting tool is supplied as:

• Basic tool with battery and shoulder strap
• Spare battery
• Battery charger
• USB cable
• Plastic carrying case suitable for storing the tool and accessories

For storage and protection the Cembre B-TC320NDE tool is supplied in a robust carrying bag for storage of the cutting tool.

Cembre B-TC250NDE | Cable Cutting Tool | Battery Operated Cable Cutter

B-TC320NDE Dimensions

The battery of the tool is equipped with LED indicators that indicate the remaining battery life at any time by pressing the adjacent button. Quieter operation, illumination of the working area via LED lights and a minimum of vibration enhance the tool’s practicality.

Cembre tools are designed with improved balance – Cembre B-TC320NDE is easily manageable during the cable cutting process with high resistance to wear and damage.

Low noise and minimal vibration aid operator comfort while additional convenience and safety are provided by LED lighting of the working area.

CABLE CUTTING SAFETY

Keep hands clear from cutting blades ♦ Do not cut steel ♦ Wear safety glasses and gloves ♦ Read tool instructions prior to cutting cable

CEMBRE CUTTING TOOLS

UNDERGROUND CABLES & OVERHEAD LINES

• Power Cables: LV-MV-HV Armoured & Unarmoured Cables (6.6kV 11kV 33kV 66kV 132kV). EHV, Subsea Cables & Umbilicals
• Utility Cables: LV-HV Power BS6622 BS7870 (XLPE & EPR – Triplex) including Lead Covered & LV Waveform Cables
• Offshore & Marine Cables: (IEC 60092, BS6883, NEK606, IEC 60331)
• Telecoms Cables: Copper Cables (Aerial, Duct/Underground Buried & Wire)
• Low Voltage Aerial Bundled Cables (ABC Mains & Service Cable)
• High Voltage Overhead Conductors: Copper & Aluminium

Cembre hydraulic crimping tools are available to suit all types of cable installations.
