Nexans GT11/GT11R Heat Shrink Wraparound Cable Sheath Repair & Jacketing Sleeve
Heat Shrink Wraparound Sleeves
Cable Sheath Repair
Nexans GT11 is a heat shrink wraparound cable sheath repair to enable effective repair of damaged outer cable sheaths and jackets – Nexans GT11R is a fibre reinforced version of the GT11 suitable for cable joint outer sheath rebuilding on LV MV HV cable applications where space is at a premium or when parking the outer jacket tubing during jointing cables is difficult.
The cable repair sleeves feature a heat shrinkable cross-linked polyolefin sheath with closing hinge and hot-melting adhesive. The anti-corrosive stainless steel hinge allows sheath closing around the damaged section of cable in order to do fast cable reparation in LV MV HV sections even in environments with high pollution.
Heat Shrink Wraparound Cable Sheath Repair
Technical Specification
| Heat Shrink Material | Cross Linked Polyolefin | |
| Continuous operating temp. | -40°C to + 135°C | |
| Minimum shrink temp. | 125°C | |
| Density | 1,1 g/cm3±10% | ASTM D-1505/ISOR1183 |
| Tensile strength | 20÷25 N/mm2 | ASTM D-412/ISO 37 |
| Ultimate elongation | 500%÷600% | ASTM D-412/ISO 37 |
| Dielectric constant | <5 | IEC 250 |
| Volume resistivity | >1×1013Ohm.cm | IEC 93 |
| Dielectric strength | >15 kV/mm | IEC 243 |
| Water absorption | <0.2% | DIN 53495 / ISO 92 |
| Fungus and mildew resistance | V applied: 1 with: GL0 | ASTM G 21 |
| Contents of carbon black | >2.5% | ASTM 2671 |
| Chemical resistance | (Treatment with 0.1 NNa2SO4, H2sSO4, NaOH, NaCI) | |
Nexans GT11/GT11R
Nexans GT11/GT11R Selection Table
Cable Repair Sleeves
Below is a selection table for the GT11 and GT11R Nexans range of Heat Shrink Wraparound Cable Sheath Repair & Jacketing Sleeves:

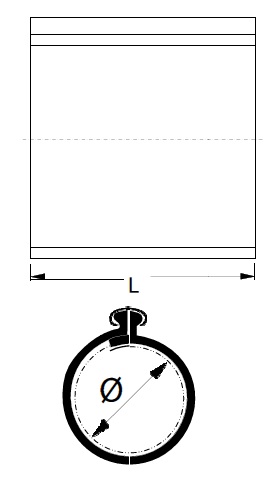

| Nexans Part Number | Ø as supplied/after full recovery (mm) | tk wall thickness after full recovery (mm) | L standard (m) |
| GT11-34 / GT11-34 R | 41/10 | 2,5 | 1,5 |
| GT11-50 / GT11-50 R | 55/15 | 2,5 | 1,5 |
| GT11-75 / GT11-75 R | 75/22 | 2,8 | 1,5 |
| GT11-105 / GT11-105 R | 105/30 | 3 | 1,5 |
| GT11-120 / GT11-120 R | 120/40 | 3,5 | 1,5 |
| GT11-146 / GT11-146 R | 146/38 | 3,5 | 1,5 |
| GT11-164 / GT11-164 R | 164/42 | 3,5 | 1,5 |
| GT11-200 / GT11-200 R | 200/55 | 3,5 | 1,5 |
