Interface B Bushing | Deadbreak Connectors 400Amp 14mm Pin Type Screened Separable Connectors

Prysmian

Interface B Bushing Connectors

Interface B Bushing Connectors

400Amps Cable Connectors for High Voltage Switchgear

Interface B bushing connectors are screened separable connectors available as elbow or straight type design for the termination of medium/high voltage cables onto electrical equipment including MV-HV switchgear and transformers with bushings type B Interface (14mm pin type) – note these are deadbreak separable connectors, not loadbreak type.

The Prysmian range of Screened Separable Connectors are suitable for the connection and cable termination of Medium & High Voltage Cables with XLPE EPR insulation and either copper wire or copper tape screen cables, typically at 33kV into Gas Insulated Switchgear & Electrical Equipment with Interface B Bushings type.

Dead Break Connectors

400Amp Interface B Switchgear & Transformer Bushings

  • Single Core Polymeric Cables – see Cables MV HV
  • Copper or Aluminium Cable Conductors
  • Shearhead Mechanical Connectors – see Pfisterer SICON
  • Interface B Fully Screened EPDM Body for Medium & High Voltage Cable Power Systems
  • 400 Amp Connector Continuous Rating
  • 600 Amp Connector Short Term Overload
  • Screened Separable Connectors Up to 36kV Rating
  • Indoor Or Outdoor Cable Termination Installations
  • Conductor Sizes 25-240sqmm

➡ See also | Interface A Deadbreak Connectors | Interface C Deadbreak Connectors

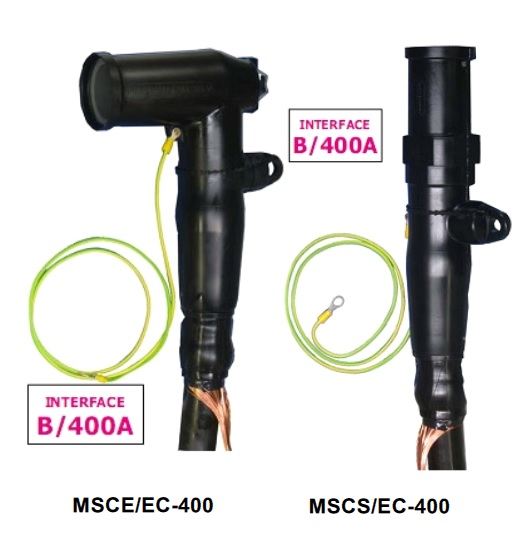

Interface B Bushing Deadbreak Connectors 400Amp 14mm Pin Type Screened Separable Connectors

Interface B Bushing Deadbreak Connectors 400Amp 14mm Pin Type Screened Separable Connectors

Prysmian Tee Connectors from the Formfit range connect and terminate Polymeric type cables into medium/high voltage electrical equipment with switchgear and transformer bushings to CENELEC EN 50180 (EN 5018) Standards – the deadbreak connectors can be immediately energised once installed onto the bushings of MV HV Power Systems. Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.

Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.

MV HV High Voltage Cable Joints | Cable Terminations | Cable Connectors | Distributed from Stock | UK & Export Sales

Interface B Bushing Connectors

400Amp 14mm Pin

Selection Guide

1. Select a Prysmian Kit Reference that corresponds to the cable diameter over insulation for the medium/high voltage cable.

Example: 22kV single core aluminium 185sqmm cable with copper wire screen. Diameter over insulation is 28.6mm. Elbow type connector is required.

Should you require any technical support for select the correct Cable Connector, Joint or Termination for use with Interface B Bushings please do not hesitate to call us.

Voltage Diameter over Insulation (mm) Approx Cable Size (sqmm) Prysmian Part Number
Min Max
(11)12kV 13.0 22.3 25-120 MSCE(S)/EC-400-B-12-rA-25/120
16.1 26.3 95-240 MSCE(S)/EC-400-B-12-rB-95/240
(15)17kV 13.0 22.3 25-70 MSCE(S)/EC-400-B-17-rA-25/70
16.1 26.3 35-120 MSCE(S)/EC-400-B-17-rB-35/120
20.2 30.8 95-240 MSCE(S)/EC-400-B-17-rC-95/240
(22)24kV 16.1 26.3 25-150 MSCE(S)/EC-400-B-24-rB-25/150
16.1 26.3 70-185 MSCE(S)/EC-400-B-24-rB-70/185
20.1 30.8 95-240 MSCE(S)/EC-400-B-24-rC-95/240
22.7 33.0 95-240 MSCE(S)/EC-400-B-24-rD-95/240
(33)36kV 20.2 30.8 25-95 MSCE(S)/EC-400-B-36-rC-25/95
22.7 33.1 35-120 MSCE(S)/EC-400-B-36-rD-35/120
25.6 35.3 70-240 MSCE(S)/EC-400-B-36-rE-70/240

2. Specify the voltage Um in kV. (12, 24 or 36kV)

3. Select earthing arrangement from the table below.

Earthing Reference Type of Metallic Screen on Cable
T1 Polylam Cables
T2 Copper Tape Screen
T3 Copper Wire Screen

4. Select suitable range taking lug.

âž¡ Prysmian Separable Connectors include tee, straight and elbow connectors including supporting range of MV HV equipment bushings for Interface A, B and C – complete range of heat shrink and Cold Shrink or Cold-Fit joints and terminations are available for 11kV/33kV up to 66kV cables. To support and retain the installation of medium/high voltage power cables refer to the range of Prysmian cable cleats suitable for short-circuit protection and retention of cables located onto cable containment.

Cables for Medium & High Voltage Power Systems

Prysmian | Connectors | Medium Voltage & High Voltage Cable Accessories

Prysmian | Connectors | Medium Voltage & High Voltage Cable Accessories

Prysmian MV cables are Made in Britain – standard MV cables range between 6.6kV, 11kV, 22kV up to 33kV including IEC 60502-2, BS6622 (BS7835) and BS7870 type plus Triplex variants. Medium voltage (MV) cables for commercial, industrial and utility distribution networks with XLPE insulation in single core (Unarmoured & Armoured AWA Aluminium)  and 3-core (Armoured SWA Steel) designs – fire resistant (IEC-60332-3-22 or 24), flame retardant (IEC 60332-1-2), chemical barrier, LSZH Low Smoke Zero Halogen (IEC-60754-1) and hydrocarbon resistant cable sheath specifications are available. HEPR & EPR cable insulation with CWS (Copper Wire Screen) or CTS (Copper Tape Screen) and LS (Lead Sheath) are also available – contact us.
