Lead In V Type Cable Rollers for Low & High Voltage Power Cable Installations

The Trailer and Winch Solutions range of Lead In V Type Cable Rollers are available in 4 variants to suit the pulling-in and laying of LV MV HV power cables into underground trench.

TWS’s cable rollers are specialised equipment used in the telecommunications and utility industries for the efficient installation of cable systems, including fiber optics and power cables. These rollers safely support, guide and protect cables during the cable laying process, minimising cable damage and ensuring smooth deployment into the trench by the cable pullers.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation of low, medium and high voltage power cables into underground trench or duct.


Cable Rollers Selection Guide

The following table includes further insight on Trailer and Winch Solutions range of Lead in V Type Cable Rollers available at Thorne & Derrick, including a technical data sheet download for each product to aid ideal selection:

Lead In V Type Cable Rollers Cable Roller Type Bushes / Bearings Plate Roller Diameter Cable Roller Size Weight Lead In V Type Cable Rollers Technical Data Sheets

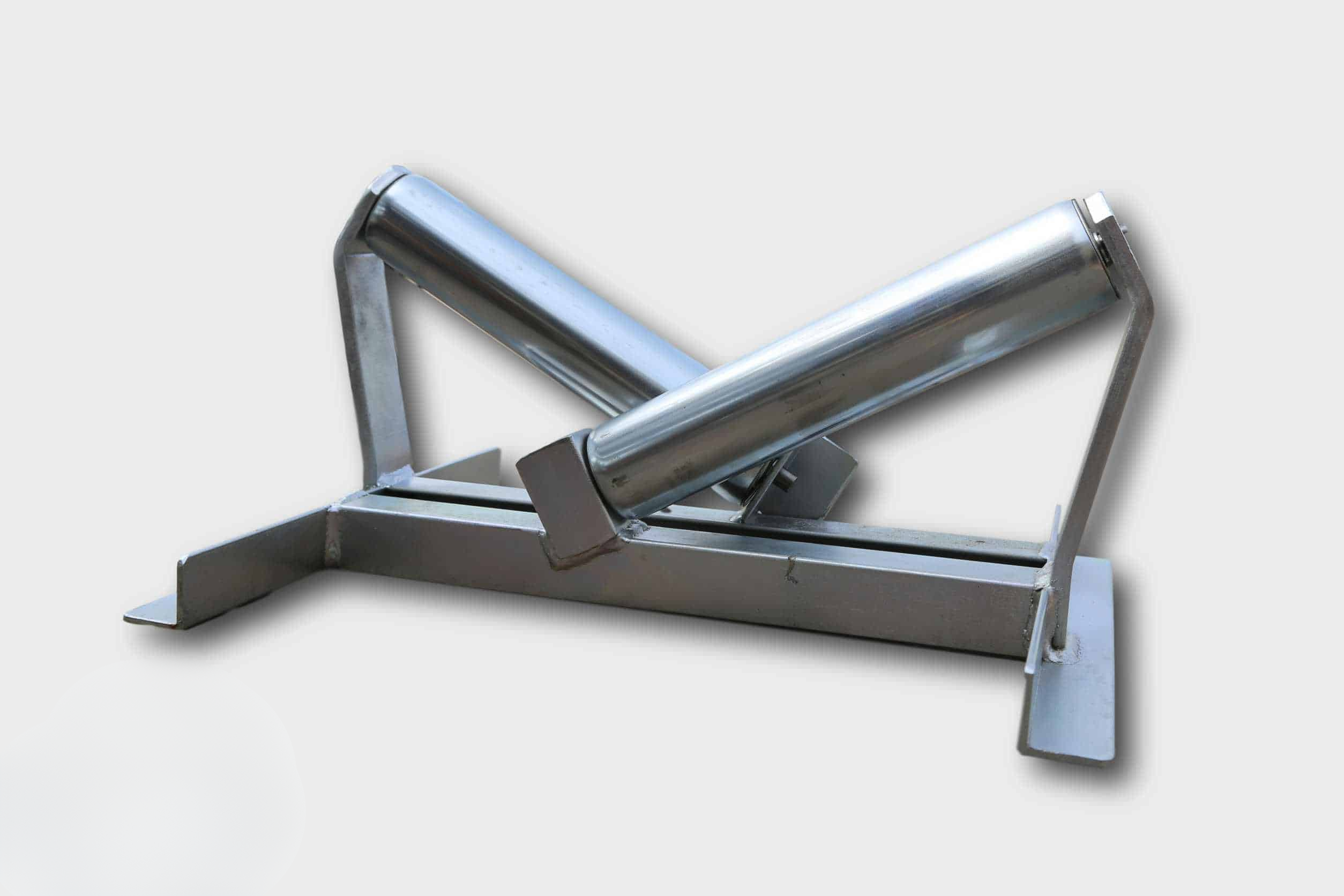

V Type Lead In Pipe/Cable Roller (Small) LR1 V Type Lead In Pipe/Cable Roller (Small) LR1 Precision sealed roller bearings fitted Zinc plated finish 60mm diameter steel gravity rollers 50cm long x 40cm wide x 25cm high 9.5Kg Cable Rollers Datasheet
V Type Lead In Pipe/Cable Roller (Medium) LR2 V Type Lead In Pipe/Cable Roller (Medium) LR2 Precision sealed roller bearings fitted Zinc plated finish 60mm diameter steel gravity rollers 85cm long x 60cm wide x 44cm high 16Kg Cable Rollers Datasheet
V Type Lead In Pipe/Cable Roller (Large) LR3 V Type Lead In Pipe/Cable Roller (Large) LR3 Precision sealed roller bearings fitted for heavy duty applications Zinc plated finish 60mm diameter steel gravity rollers 105cm long x 60cm wide x 44cm high 18Kg Cable Rollers Datasheet
Horizontal Type Lead In Cable Roller LR4 Horizontal Type Lead In Cable Roller LR4 Oil impregnated maintenance free bushes fitted Zinc plated or powder coated finish Heavy duty 89mm diameter steel roller 98cm long x 20cm wide x 24cm high 14.5Kg Cable Rollers Datasheet

tws | trailer & winch solutions ltd

Trailer & Winch Solutions Ltd

Trailer and Winch Solutions Ltd are a manufacturer of cable laying equipment and cable pulling accessories for the following voltage classes: 600/1000V (LV), 11kV 33kV (MV) & 66kV 132kV (HV).

Thorne & Derrick distribute a complete range of LV, MV & HV Cable Pulling Products for installation into trench or duct including LV, 11kV/33kV medium voltage (MV), 66kV/132kV high voltage (HV) and EHV transmission and distribution cables up to 400kV.
