Leoni SOLARPower Alu-ATA


SOLAR Cables

Low Voltage Installation AC Solar Cable By Leoni

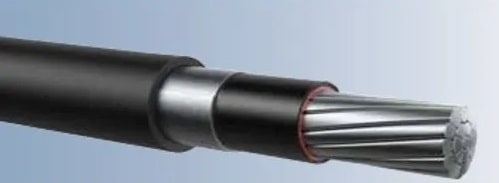

The SOLARPower Alu-ATA cable manufactured by Leoni is a halogen free and UV resistant low voltage cable that meets the high expectations demanded from solar cables. The SOLARPower Alu-ATA offers long service life and high weather resistance to the most important photovoltaic markets of Europe and the USA.

This solar cable is well suited for outdoor applications and burial directly in the ground thanks to the very robust outer sheath and the aluminium shield.


SOLARpower Alu-ATA

Cable AdvantagesLeoni SOLARPower Alu-ATA Low Voltage Installation AC Cable

  • Halogen-free solar cable
  • XLPE Insulation and termigon jacket
  • Termite and rodent protection
  • UV resistant cable
  • Transversal watertight
  • Simple feed, low friction of the cable sheath
  • Aluminium shield, suitable as grounding and protective earth and for EMC shielding

Leoni SOLARPower Alu-ATA

Cable Technical Data

Cable Construction
Conductor Aluminium stranded wire, compacted. class 2
Insulation XLPE. halogen free
Jacket Copolymer, halogen free (termite and rodent protection)
Jacket colour ● black
Electrical Characteristics
Max. voltage acc. to EN50618 Um = 1800 V DC
Rated voltage U0/U = 1500 V / 1500 V DC
U0/U = 1000 / 1000 V AC, 50Hz
Test voltage 6500 V, 50 Hz, 5 min.
(Conductor / Shielding)
Thermal Characteristics
Operating Temperature –40 °C up to +90 °C
–40 °F up to +194 °F
Ambient Temperature –40 °C up to +90 °C
Min. Permissible Installation Temperature –10 °C
Max. Short Circuit Temp +250 °C, +482 °F / 5 s
Bending Radius
Fixed installation > 12 × 
Standards / Material Properties
Halogen free: IEC 60754-1; EN 50267-2-1
Based on BS 5467 and EN50618

Leoni SOLARPower Alu-ATA Part Codes

To discuss your exact cable requirements please contact Thorne & Derrick.

Construction Conductor-Ø Outer-Ø Resistance max.* Voltage drop* Weight Leoni Part Code
n × mm² mm mm mΩ/m mV/Am kg/km
1 × 50/18 8.16 16.80 0.641 1.282 315 309014
1 × 70/20 9.90 18.70 0.443 0.886 402 309015
1 × 95/22 11.50 20.50 0.320 0.640 500 309016
1 × 120/24 12.85 22.05 0.253 0.506 600 309526
1 × 150/26 14.20 24.40 0.206 0.412 717 308457
1 × 185/28 16.40 27.20 0.164 0.328 882 309527
1 × 240/31 18.30 29.30 0.125 0.250 1069 309528
1 × 300/33 20.45 31.85 0.100 0.200 1282 309529
1 × 400/39 23.66 36.10 0.0778 0.1556 1648 309530
1 × 500/43 26.40 39.40 0.0605 0.1210 2016 309905

* at 20 °C


SOLARpower Alu-ATA Terminal & Grounding kit

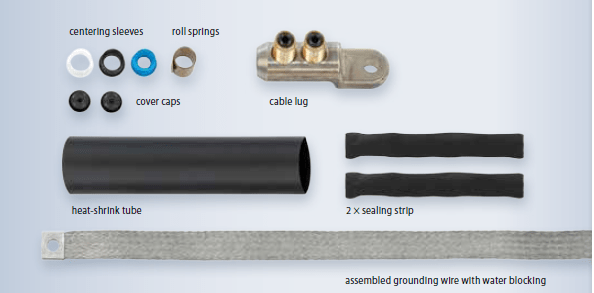

This kit includes all the materials which are required for a safe, permanent connection and a proper grounding.

SOLARpower Alu-ATA Accessories

SOLARpower Alu-ATA Accessories

Cable Advantages

  • Includes all materials for the installation of the solar cables
  • Reliable and harmonised cable connection and grounding concept
  • With accurate use, acc. to the instruction manual, no contact corrosion due to durable sealing
  • Consistently safe contact with the aluminium conductor and the earthing screen
  • Grounding wire in tinned copper braid with water blocking included to grounding kit
