PENTA ALROC CWI-R | LV MV Cable Sheathing / Insulation Removal Tool 20 – 100mm

PENTA ALROC CWI-R Insulation Removal Tool

PENTA ALROC CWI-R

<br />

THORNE & DERRICK | Largest European Stockist for PENTA ALROC Cable Jointing & Preparation Tools | UK & Export Sales

PENTA ALROC CWI-R Cable Sheathing & Insulation Removal Tool is a robust, precision-engineered cable preparation tool, designed for the removal of outer sheathing on Low Voltage (LV) 600V cables and insulation on Medium Voltage (MV) 11kV-33kV cables – the cable stripping tool can deliver cutting lengths from 20mm to 100mm.

Whether in the cable trench, substation or Jointer Training Centre this versatile PENTA ALROC tool ensures accurate, clean and safe stripping of cable insulation and outer jacket sheathing on a wide range of cable constructions including XLPE, EPR, and P-Laser types.

A key feature of PENTA ALROC CWI-R is that the tool can be operated manually or motorised using a powered screwdriver, enabling semi-automated cable stripping. This feature is ideal for high-volume applications and helps reduce the risk of Repetitive Strain Injury (RSI) to the Jointer during extended and repeated use overtime.

Thorne & Derrick International are a trusted UK stockist, supplier and distributor of Cable Jointing & Preperation Tools for LV, MV & HV cables worldwide. Contact our Power & Cables experts for engineered solutions, technical advice, quotations, and fast delivery for both UK & export orders.

Order PENTA ALROC CWI-R More Cable Jointing Tools

CWI-R Cable Preparation Tool Key Features & Benefits

Dual-Function Tool – Removes both cable outer sheathing (LV) and insulation (MV)
Adjustable Cutting Depth – Up to 11mm depth for precise stripping by the cable jointer
Ergonomic & Easy-to-Use – Fast cable clamping, user-friendly handling
Motorised Compatibility – Can be used manually or with a powered screwdriver
Pre-Set Cutting Lengths – Adjustable to strip cable insulation lengths between 20–100mm
Clean, Straight Cuts – Enables precise stop for professional-quality cable finishes
Heavy-Duty Design – Engineered for rugged use in LV MV HV substations and on-site environments

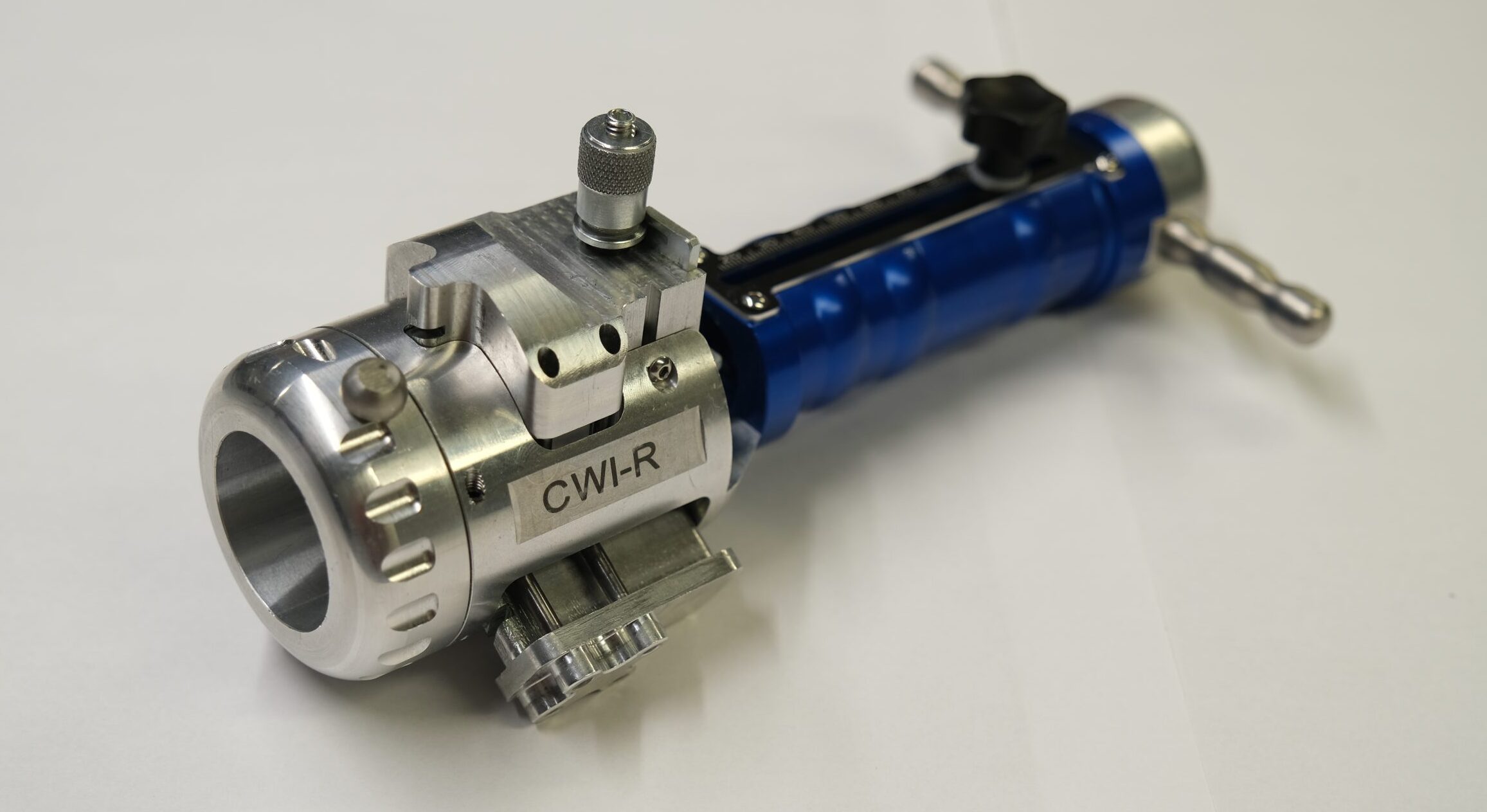

PENTA/ALROC CWI-R Cable Sheathing Insulation Removal Tool LV MV

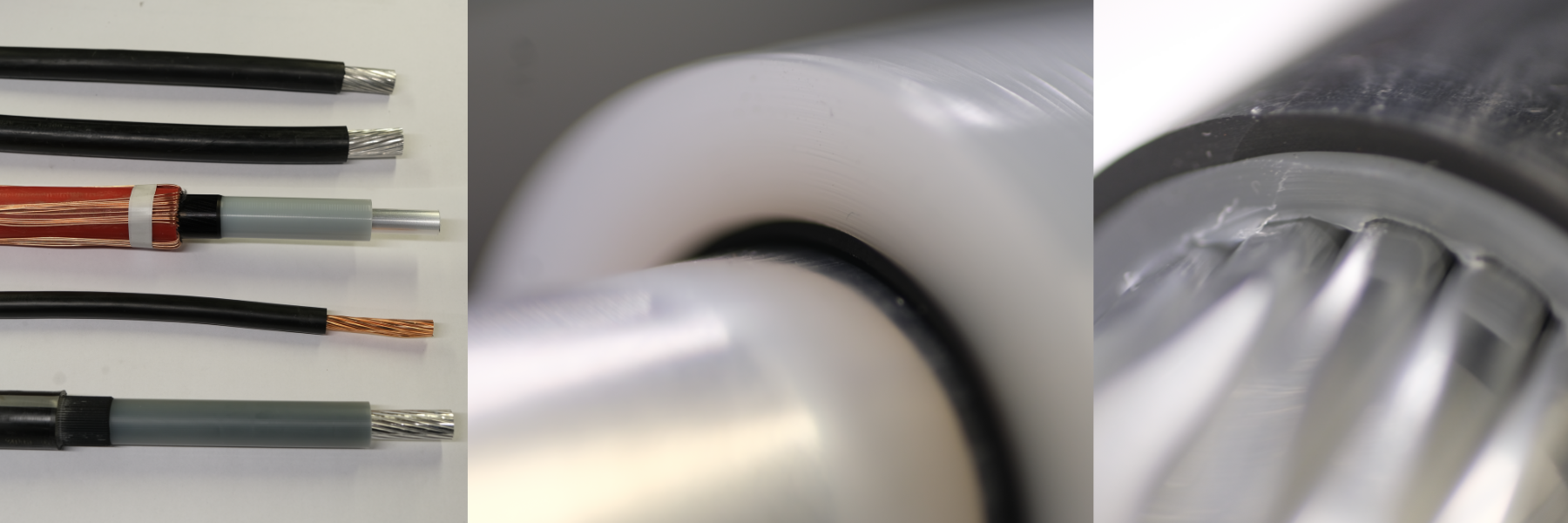

Outer Sheath Removal with PENTA ALROC CWI-R

PENTA ALROC CWI-R Cable Sheathing & Insulation Removal Tool Technical Specifications

PENTA ALROC CWI-R Cable Sheathing & Insulation Tool Specifications

Tool Type	Specific Cable Preperation Tool
Application Areas	Cable & Connections, Electrical Distribution, Substation
Suitable for Cable Types	Low Voltage (LV), Medium Voltage (MV)
Packaging	Carton Box
Weight	1.2 kg
Dimensions (L × W × H)	248mm × 87mm × 79mm
Compatible Cable Diameter	13mm – 38mm
Colour	Blue
Cutting Length Range	20mm – 100mm
Max Cutting Depth on Insulation	11mm
Max Cutting Depth on Sheath	11mm

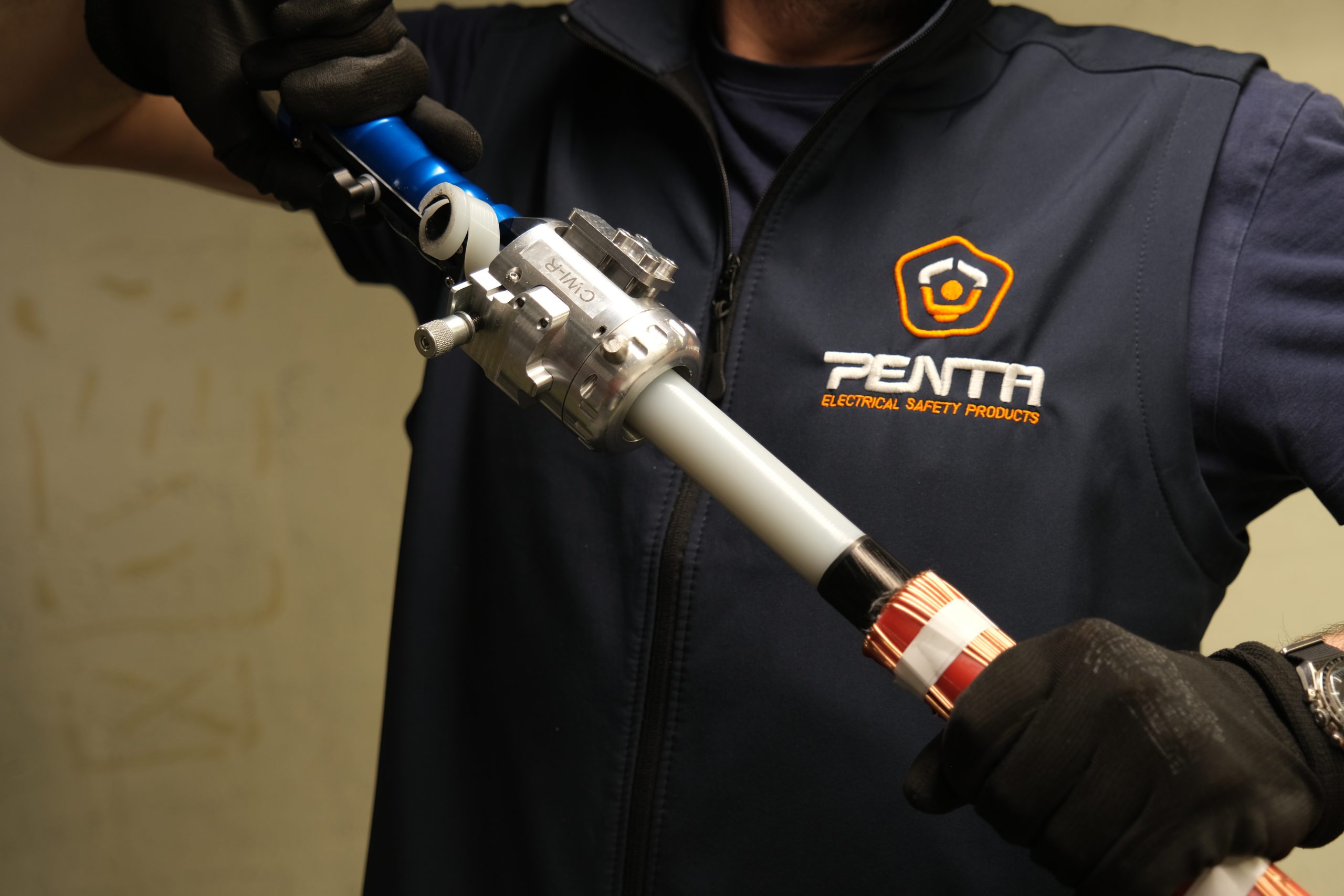

Manual or motorised operation with a powered screwdriver enables semi-automated cable stripping—ideal for high volumes and reducing RSI risk during repetitive tasks

tOOL Spare Parts & Accessories

LCWI – Spare Cable Cutting Blade for CWI/10-20-30 & CWI-R Alroc Tools
CWB/18-60-S – Bonded Semiconductor Shaving Tool for Medium & High Voltage Power Cables (XLPE Insulation)
CWE/14-50-MVS – Jointing & Cable Preparation Tool for Peelable Semiconductor Removal (XLPE Insulation)
PG3HTA/2020 – Alroc PG Pliers for MV HV Cable Outer Sheath

PENTA ALROC CWI-R Video Showcase | Fast, Precise Cable Sheath & Insulation Removal Tool

Watch the Penta Alroc CWI-R in action as it effortlessly strips low voltage (LV) sheathing and medium voltage (MV) insulation – this robust tool can be used manually or motorised with a powered screwdriver—perfect for high-volume cable preparation while helping reduce RSI risk to the operator. Trusted by Jointers and Cable Technicians for clean, controlled, and consistent cable stripping and preparation.
