Telecom Cable Joint Kits

Rail Cables Accessories Electrical Equipment

Thorne & Derrick – Approved Specialist Distributors To The Rail Industry | LV MV HV

Enclosures & Joints

SPS compound filled unit twin copper telecom cable jointing kits comprise of a range of heatshrinkable enclosures in tubular and wraparound form. The jointing and cable connection system accommodates single and multi-cable entry and each enclosure allows re-entry if required. Complying to cable specification FTN Copper Trackside Cables – NR/PS/TEL/00015 (formerly Network Rail RT/E/PS/00015).

A complete range of pilot cable joints using Scotchcast resin for cable encapsulation, electrical insulation and mechanical protection for 4-61 multipair armoured cables with PE/PVC insulation.

FTN Cables

Fixed Telephone Network (FTN) copper trackside cables are manufactured in accordance with rail industry specification NR/PS/TEL/00015. FTN copper trackside cable are widely used in rail telecoms applications as well as elsewhere in the transport industry.

Cables are suitable for installation in trackside concrete cable troughing or buried cable duct routes. Direct burial installations are possible using the Armoured Copper Trackside cable variations. This range is also available with a Low Smoke Zero Halogen (LSZH) outersheath making it suitable for installations in areas where smoke and toxic fumes may cause a threat to life and equipment.

The below table features telecom cable joint kits including SPS part numbers, PADS Network Rail approvals, cable joint description and style.

Other Heat Shrink Cable Joints For Rail Cable Connections

Cable accessories with Network Rail approvals manufactured by 3M Electrical and using cold shrink are also available to joint, terminate, insulate and repair damaged cables.

SPS PART NUMBER	P.A.D.S CAT. NO	CABLE JOINT DESCRIPTION	CABLE JOINT STYLE

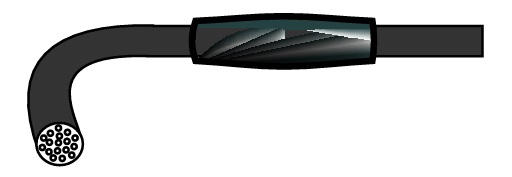

SPS 733	54/37084	UP TO 5 PAIR 0.9mm CONDUCTORS	H/S TUBE IN- LINE JOINT CLOSURE FOR REPAIRS TO SUB SPURE TEL. CABLES
SPS 734	54/37085	UP TO 10 PAIR 0.9mm CONDUCTORS

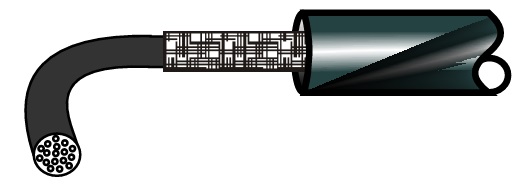

SPS 735	54/15849	5/10 PAIR COMPOUND FILLED CABLE	H/S TUBE IN -LINE JOINT CLOSURE WITH BRAID LINING
SPS 736	54/15852	20/30 PAIR COMPOUND FILLED CABLE
SPS 737	54/15853	50/75 PAIR COMPOUND FILLED CABLE

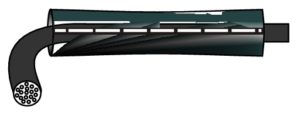

SPS 738	87/4810	5/10/20 PAIR COMPOUND FILLED CABLE	WRAPAROUND SLEEVE IN -LINE OR BRANCH CLOSURE WITH LAMINATED LINER. BRANCH CLIP NOT INCLUDED
SPS 739	87/4811	30/50 PAIR COMPOUND FILLED CABLE
SPS 740	87/4812	70/100 PAIR COMPOUND FILLED CABLE
SPS 897	87/4813	150 PAIR COMPOUND FILLED CABLE
SPS 741	54/37081	20 PAIR COMPOUND FILLED CABLE	H/S TUBE IN-LINE CLOSURE WITH METAL CANISTER ENCLOSURE
SPS 742	54/37082	50 PAIR COMPOUND FILLED CABLE
SPS 743	54/37083	100 PAIR COMPOUND FILLED CABLE
SPS 1000	54/37062	5/10/20 PAIR COMPOUND FILLED CABLE	WRAPAROUND SLEEVE IN -LINE OR BRANCH CLOSURE WITH LAMINATED LINER. INCLUDES BRANCH CLIP
SPS 1001	54/37060	30/50 PAIR COMPOUND FILLED CABLE
SPS 1002	54/37061	70/100 PAIR COMPOUND FILLED CABLE
