MV HV Cable

11kV 33kV Cables

Nexans cables include British (BS6622 | BS7870) & European standard (IEC 60502) medium/high voltage (MV-HV) power cables for distribution of 11kV to 33kV electricity using polymeric insulated (XLPE or EPR) single or 3-core cables, with armour/unarmoured and copper wire or copper tape screen options. An overview of Medium Voltage (11kV/33kV) cables manufactured by Nexans:

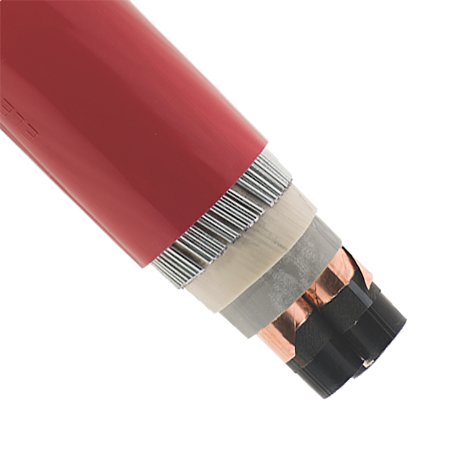

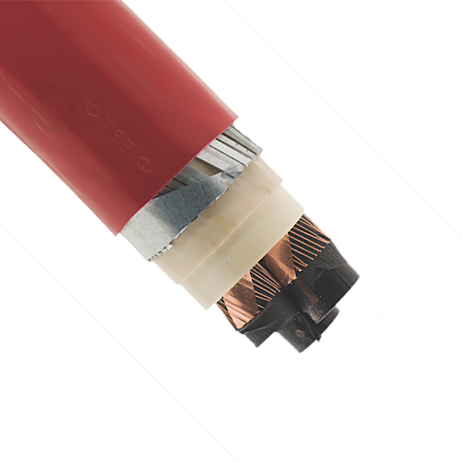

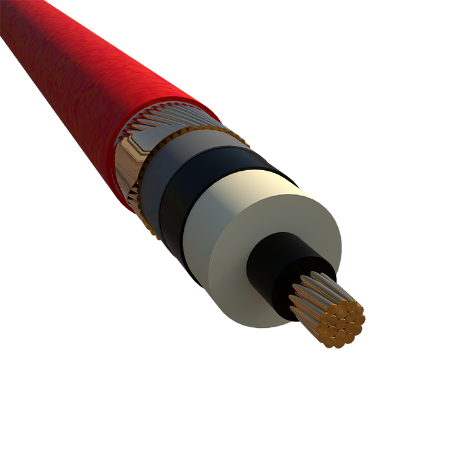

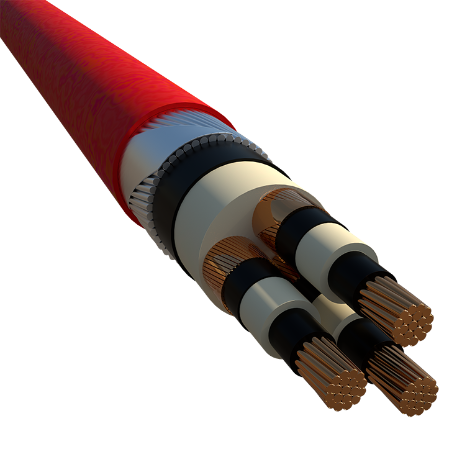

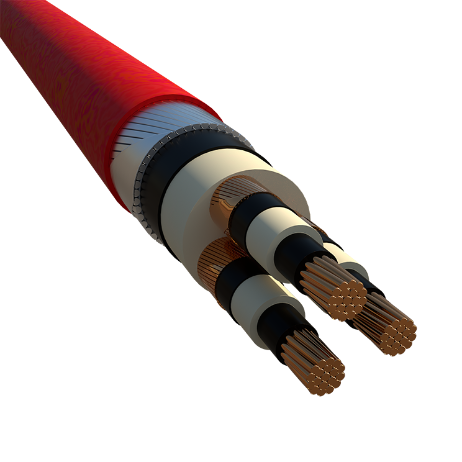

CU/XLPE/CTS/PVC/SWA/PVC 19/33kV Cables MV	YXC8VZ3V (TSE) – N2XSEYFGY (IEC) 8,7/15kV Cables MV	YXC8VZ3V-A 20,3/35kV Cables MV
YXC7V (TSE) – N2XSY (IEC) 8,7/15kV Cables MV	CU/XLPE/CTS/LSZH/SWA/LSZH 6.35/11kV Cables MV	CU / XLPE / CTS / LSZH / SWA / LSZH – 6.35/11kV Cables MV
N2XSEYRY 6/10kV Cables MV	YXC8VZ3V (TSE) – N2XSEYFGY (IEC) 6/10kV Cables MV	CU/XLPE/CTS/LSZH/SWA/LSZH 19/33kV Cables MV

Nexans Cables & accessories

To support the installation of MV-HV cables, Thorne & Derrick distribute the Nexans Power Cable Accessory range:

• Slip-on Cable Terminations
• Cold-shrink Cable Terminations
• Heat-shrink Cable Terminations
• Cable Joints – Heat & Cold-shrink
• Separable Connectors (Euromold)
• Surge Arresters & Switchgear/Transformer Bushings

MV-HV Cable Joints, Terminations & Connectors suitable for connecting, repairing and extending 11kV and 33kV high voltage power cable circuits.

MV Joints | Nexans JTS Next generation Heat Shrink Cable Joints

Traditionally, heat shrink joints required several separate stages for the installation of the complete cable joint with multiple layers of heat shrink tubes needed to provide stress control, insulation and conductive functions – the labour intensive jointing procedure introduced increased risks of jointer error including tube misalignment and flamework deficiencies (scorching of tubes by overheating). For further information go to Nexans JTS or contact us to discuss your requirements.

Euromold

Euromold is a Nexans brand and includes the complete range of screened separable type cable plugs and elbows for connecting 11kV-33kV cables into all type of MV-HV switchgear and transformer bushings interfaces A – F up to 66kV.

Euromold bushings, connectors and high voltage electrical cable products are individually tested before leaving the factory.

Nexans Euromold provides a total package of premoulded connectors, terminations, joints for cables, epoxy bushings for transformers up to 550kV, heat and cold shrink terminations and joints up to 72kV and cable lugs and mechanical connectors.

Nexans Euromold – connectors, elbows and Tee-connectors to terminate 11kV 33kV high voltage powers cables with polymeric insulation (XLPE & EPR) onto MV-HV switchgear and transformer bushings.

Wind | Nexans safe-to-touch T-shaped cable connectors are designed for the new generation of compact switchgears and transformers (Gas Insulated GIS) and can also accommodate the larger cross-sections of large turbines and cable-to-cable connections.

Rail | Nexans offers a range of high quality power, signalling and telecommunications cables to reinforce railway infrastructures – this includes halogen-free, as well as flame-retardant, and thus assure low toxicity and minimal smoke to enhance survival, firefighting and emergency operations.

View the complete range of MV-HV Cables manufactured by Nexans for 11kV-33kV networks  ➡
