Pfisterer Medium Voltage Cable Preparation & Jointing Kits

MV Cable Jointers Tool Kit | 11kV 33kv

Thorne & Derrick working alongside Pfisterer are delighted to announce the launch a new high quality and precision engineered Medium Voltage Cable Preparation Tool Kit for Jointers working on cables up to 33kV with primary insulation diameters at a maximum measurement of 60mm. The tools in the MV Jointers Kit cover all stages of cable preparation prior to the Jointing & Termination of cables; sheath removal, peeling of easy-strip semi conductive layer and insulation removal (XLPE EPR) with the additional option of fully bonded semi conductive layer shaving for cables 11kV-33kV.

Jointer Kit Contents

The following table outlines the Tools included in the Pfisterer MV Jointers Tool Kit stocked and supplied by Thorne & Derrick;

Supplier		Tool Part No	Cable Jointers Tool Description
1	Pfisterer	N/A	Folding 2m Ruler
2	Pfisterer	N/A	Round File
3	Pfisterer	N/A	MV Knife
4	Pfisterer	N/A	Long Nosed Pliers
5	Ripley	US10-7000	Insulation Chamfer Tool
6	Alroc	PG4HTA/3033	Sheath Removal Tool (Pliers Type)
7	Ripley	KS-1	Scissors
8	Ripley	US02	Fully Bonded Semi-conductive Screen Removal
9	Pfisterer	N/a	Garrotte
10	Alroc	LH2	Insulation Removal Tool
11	Ripley	US15 PRO	Easy Peel Semi conductive Layer/Sheath Removal

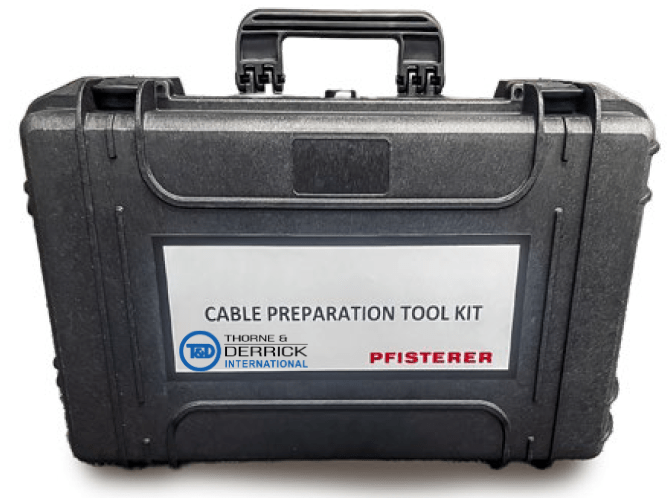

Cable Preparation & Jointing Tool Kit

mv Tool Kit

Below is a detailed review of the Kit List contents of the Pfisterer MV Cable Preparation & Jointing Kits.

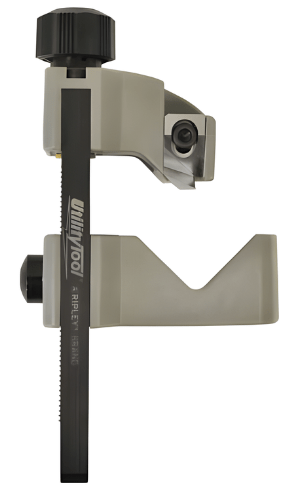

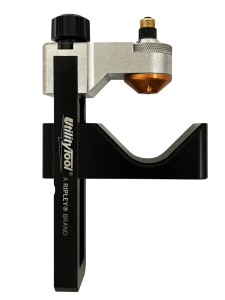

The Ripley US10-7000 Tool provides a chamfer to the insulation on medium voltage power cables as part of the cable preparation for cable joint, splice, termination or elbow installation. The chamfering tool utilises a size adjustment clamping system to quickly and easily adjust and lock onto the insulation of the MV cable – the chamfering tool is compact, low friction, thermoplastic V-jaw construction and PTFE-coated aluminium frame provides a stable and precise clamping platform in confined space switchgear or jointing bays/trenches. More about Ripley US10-7000.
	The Alroc PG4HTA Cable Tools are used by MV-HV jointers to remove the outer sheath to prepare the cable for the installation of cable joints, terminations or separable connectors up to 33kV. The PG4 HTA from Alroc enables the Jointer to make a circular and longitudinal cut in order to remove the cables outer sheath or jacket. More about Alroc PG4HTA3033

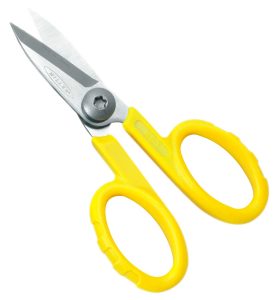

Fiber Optic Kevlar® Scissors. Durable, lightweight and ergonomic scissors (shears) ideal for cutting Kevlar® strength fibers and aramid yarns, as well as other tough application materials including dyneema and synthetic cords. Optional protective nylon pouch with belt loop is available to carry the tool safely. Request further information about Ripley-KS1-Series.

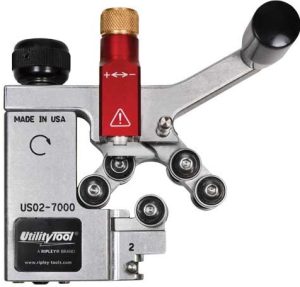

	The Ripley US02-7000 Shaving Tool quickly and easily removes bonded semi-con from MV & HV power cables up to 33kV without the requirement for lubrication. The US02 tool provides an exceptionally smooth XLPE insulation surface finish and does not require lubricating grease as the integral wheels provide a sustained motion during the cable preparation process. More about Ripley US02-7000
The Alroc LH2 Stripping Tool is used by MV-HV Jointers to remove the XLPE insulation to prepare the cable ready for the installation of joints, terminations or inner or outer cone connectors. The LH2 enables a ruler to set the length of insulation to be removed and back-iron to set the pitch of the tool making it easy to rotate the Jointers tool. More about Alroc LH2
	The Ripley US15 PRO Cable Sheath Jacket Stripping Tool is capable of performing slit, ring, and spiral cuts on cable diameters from 10mm to 60mm. Equipped with a high-grade steel blade, the versatile Jointers tool provides fast, safe, and precise jacket or sheath removal from both hard and soft insulated cables without damaging the underlying layers on LV MV HV (Low \| Medium \| High Voltage Cables). More about Ripley US15 PRO

Remove Sheath & Cable Jackets

Shave Bonded Semicon

CONNEX by Pfisterer

The following Video provides an overview of the Installation Procedure for CONNEX Connectors for the termination of Medium/High Voltage (MV-HV) Cables manufactured by Pfisterer and stocked and supplied by Thorne & Derrick – should you require specification support, technical guidance or Jointer training services please call us to discuss.
