Feeder Pillars for Electrical Power Distribution
Explore the UK’s most comprehensive range of feeder pillars for safe, reliable low-voltage (LV) power distribution. From Lucy Zodion’s renowned Fortress and Westminster enclosures to custom-built pre-wired solutions, manufactured by our engineering design team to suit your specific project requirements. We supply galvanised steel, stainless steel and GRP feeder pillars for street lighting, EV charging, highways, rail, airports, and more.
Available from stock or made to spec with IP-rated protection, anti-vandal locks, and DNO cut-outs, our electrical feeder pillars meet all industry standards including BS7671 and IEC61439.
Specialist application feeder pillars are available for utilities, highways, rail and EV charging infrastructure, with custom options for switchgear, metering, earthing, and weatherproof enclosure finishes. Designs can be adapted to meet site-specific electrical distribution needs, including DNO-approved service heads and multi-core cable termination options. Pillars can be pre-wired and factory tested to reduce installation time on-site and improve safety compliance for electrical contractors.
Thorne & Derrick International, based in the UK, stock and distribute power products worldwide.

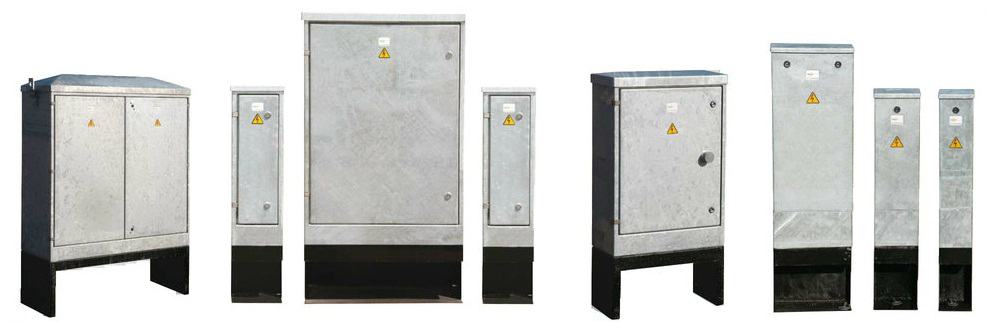

Feeder Pillar Product Range
Our range of LV Feeder Pillars covers compact street lighting enclosures to heavy-duty cabinets for infrastructure and industrial applications. All units are IP-rated and available in multiple materials including galvanised and stainless steel.

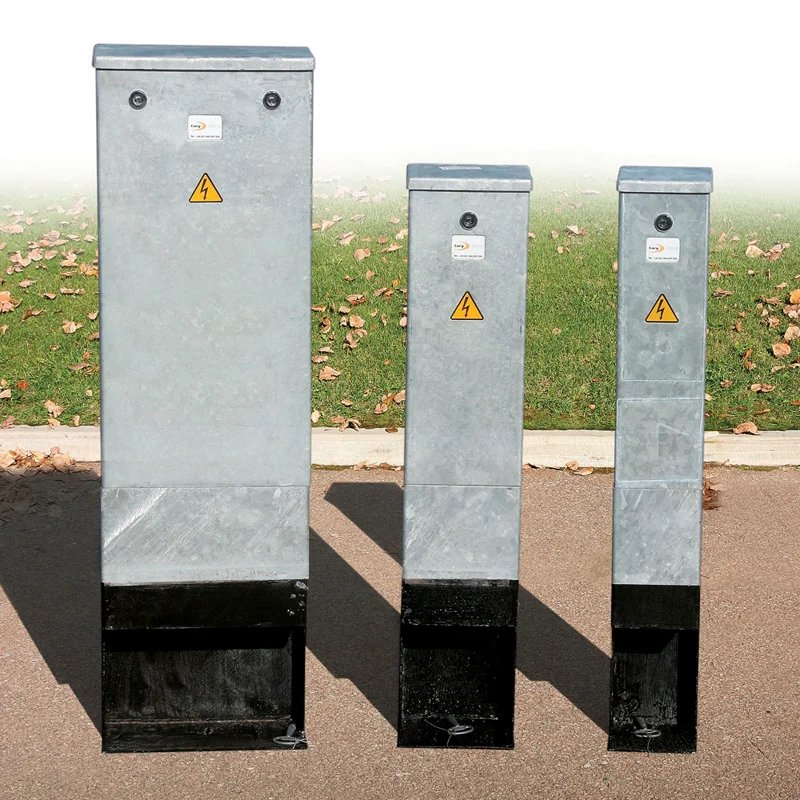

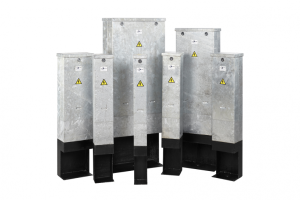

Mini Feeder Pillars
View Lucy Zodion Mini Feeder Pillars >>
Material: Galvanised Steel
IP Rating: IP65
Sizes: 7 standard sizes
Applications: Street lighting, bollards, small distribution points
View Sizes & Dimensions
| Feeder Pillar Size Code | 4810 | 4811 | 4812 | 4813 | 4814 | 4815 | 4816 |
|---|---|---|---|---|---|---|---|
| Nominal Size in inches (WxD) | 4×4 | 6×4 | 6×6 | 8×6 | 10×6 | 14×6 | 19×10 |
| Height (H) Above Ground | 785mm | 785mm | 785mm | 785mm | 985mm | 1000mm | 1000mm |
| Root Section (R) | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Width (W) | 113mm | 163mm | 163mm | 213mm | 265mm | 365mm | 503mm |
| Depth (D) | 120mm | 120mm | 170mm | 170mm | 170mm | 170mm | 250mm |
| Door Opening Height (DH) | 510mm | 510mm | 510mm | 510mm | 510mm | 710mm | 800mm |
| Working Depth (WD) | 85mm | 85mm | 130mm | 130mm | 130mm | 130mm | 199mm |
| Backboard Size (WxH) | 90 x 500mm | 140 x 500mm | 140 x 500mm | 190 x 500mm | 240 x 500mm | 345 x 700mm | 480 x 780mm |
| Weight (kg) | 11kg | 14kg | 16kg | 19kg | 22kg | 32kg | 47kg |
| Stock Code (Galv) | THM0025272 | THM0025273 | THM0027610 | THM0025275 | THM0025276 | THM0025277 | THM0025279 |

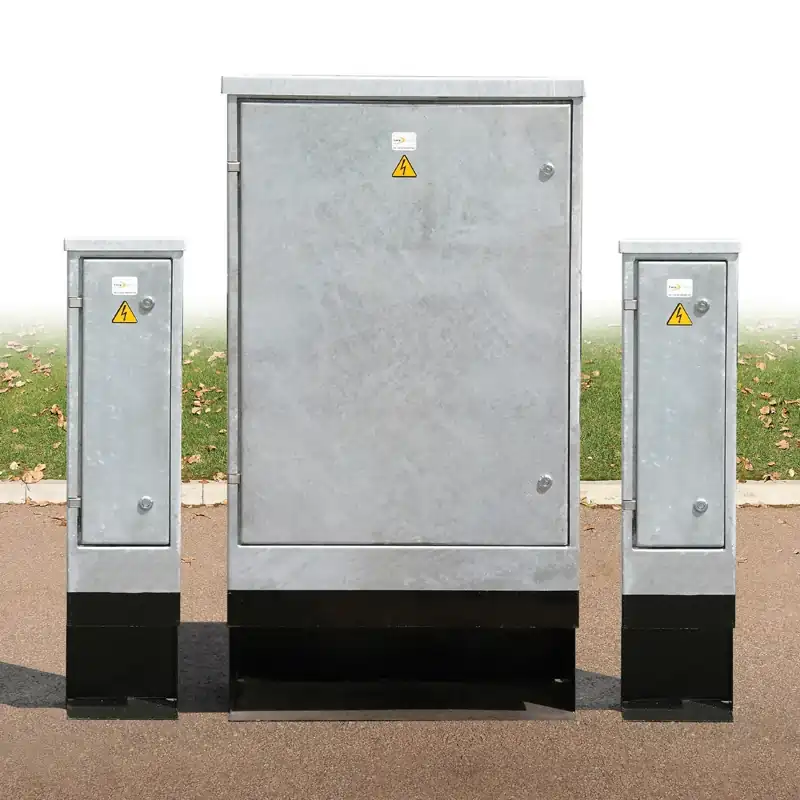

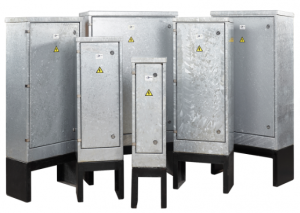

Slimline Feeder Pillars
View Lucy Zodion Slimline Feeder Pillars >>
Material: Galvanised or Stainless Steel
IP Rating: IP65
Sizes: 6 sizes
Applications: Space-restricted areas, lighting, EV points
View Sizes & Dimensions
| Feeder Pillar Size Code | SL01 | SL02 | SL03 | SL04 | SL05 | SL06 |
|---|---|---|---|---|---|---|
| Height (H) Above Ground | 800mm | 950mm | 1093mm | 1100mm | 1150mm | 1150mm |
| Root Section (R) | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Width (W) | 250mm | 350mm | 450mm | 550mm | 650mm | 800mm |
| Depth (D) | 160mm | 235mm | 260mm | 275mm | 300mm | 325mm |
| Door Opening Height (DH) | 590mm | 740mm | 740mm | 840mm | 940mm | 940mm |
| Door Opening Width (DW) | 149mm | 249mm | 349mm | 449mm | 549mm | 699mm |
| Working Depth (WD) | 106mm | 181mm | 206mm | 221mm | 246mm | 271mm |
| Backboard Size (WxH) | 240 x 765mm | 340 x 915mm | 440 x 915mm | 540 x 1015mm | 640 x 1115mm | 790 x 1115mm |
| Weight (kg) (3mm thickness) | 21kg | 29kg | 39kg | 38kg | 77kg | 84kg |
| Stock Code (3mm Galv) | THM0011393 | THM0011394 | THM0011396 | THM0011398 | THM0011400 | THM0011402 |

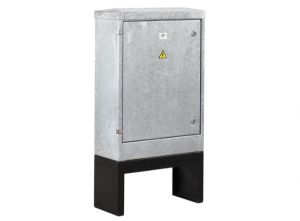

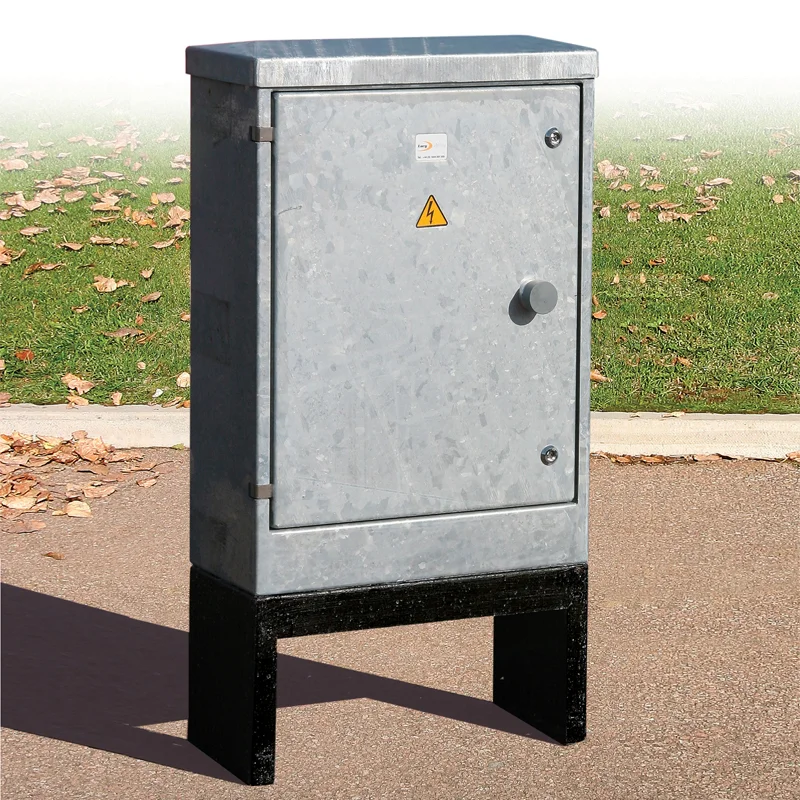

Single Door Feeder Pillars
View Lucy Zodion Single Door Feeder Pillars >>
Material: Galvanised or Stainless Steel
IP Rating: IP65
Sizes: 6 sizes
Applications: LV distribution, control panels, traffic systems
View Sizes & Dimensions
| Feeder Pillar Size Code | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 |
|---|---|---|---|---|---|---|---|---|---|
| Height (H) Above Ground | 1300mm | 1300mm | 1300mm | 1300mm | 1600mm | 1600mm | 1600mm | 1600mm | 1600mm |
| Root Section (R) | 380mm | 380mm | 380mm | 380mm | 380mm | 380mm | 380mm | 380mm | 380mm |
| Width (W) | 1250mm | 1500mm | 1750mm | 2000mm | 1250mm | 1500mm | 1750mm | 2000mm | 2250mm |
| Depth (D) | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm |
| Door Opening Height (DH) | 980mm | 980mm | 980mm | 980mm | 1280mm | 1280mm | 1280mm | 1280mm | 1280mm |
| Door Opening Width (DW) | 1148mm | 1398mm | 1648mm | 1898mm | 1148mm | 1398mm | 1648mm | 1898mm | 2148mm |
| Working Depth (WD) | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm |
| Backboard Size (WxH) | 1225 x 1085mm | 1475 x 1085mm | 1725 x 1085mm | 1975 x 1085mm | 1225 x 1385mm | 1475 x 1385mm | 1725 x 1385mm | 1975 x 1385mm | 2225 x 1385mm |
| Weight (kg) (3mm thickness) | 176kg | 202kg | 234kg | 266kg | 201kg | 231kg | 269kg | 305kg | 343kg |
| Stock Code (3mm Galv) | THM0024672 | THM0024674 | THM0024676 | THM0024680 | THM0024682 | THM0024685 | THM0024687 | THM0024689 | THM0024691 |
| Stock Code (3mm Painted Grey) | THM0024673 | THM0024675 | THM0024678 | THM0024681 | THM0024684 | THM0024686 | THM0024688 | THM0024690 | THM0024692 |

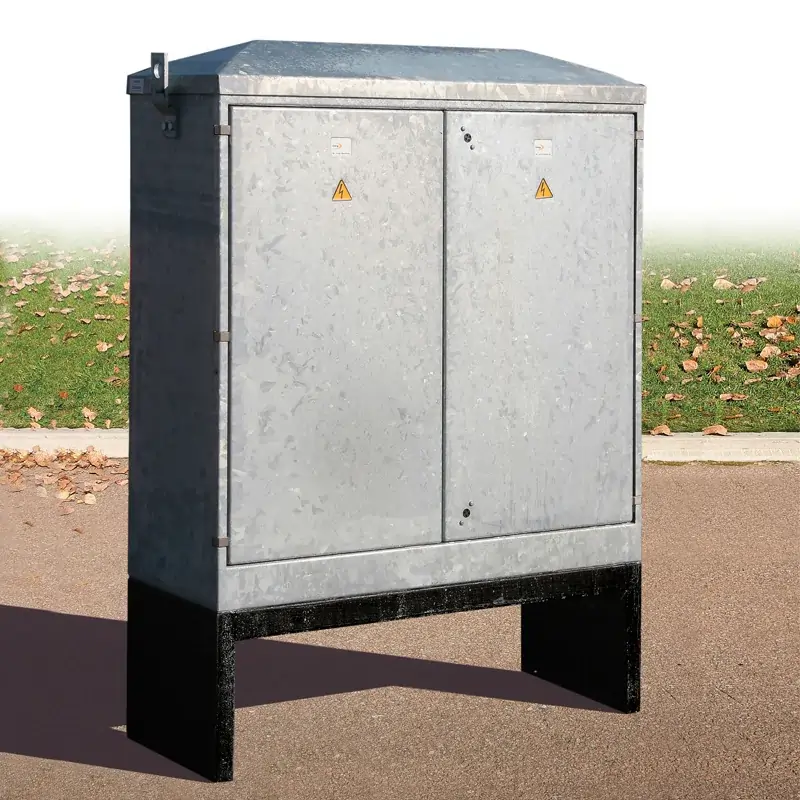

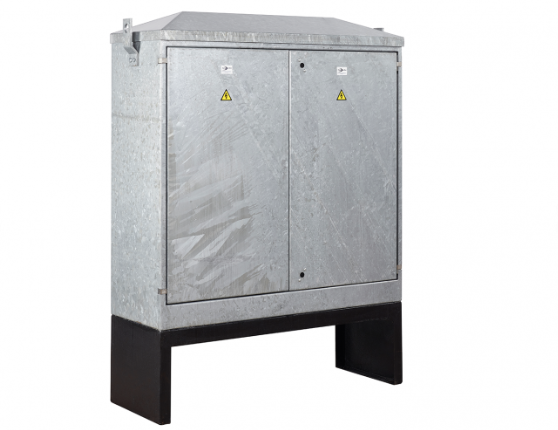

Double Door Feeder Pillars
View Lucy Zodion Double Door Feeder Pillars >>
Material: Galvanised or Stainless Steel
IP Rating: IP65
Sizes: 9+ sizes
Applications: Rail, airports, renewables, utility networks
View Sizes & Dimensions
| Feeder Pillar Size Code | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 |
|---|---|---|---|---|---|---|---|---|---|
| Height (H) Above Ground | 1300mm | 1300mm | 1300mm | 1300mm | 1600mm | 1600mm | 1600mm | 1600mm | 1600mm |
| Root Section (R) | 380mm | 380mm | 380mm | 380mm | 380mm | 380mm | 380mm | 380mm | 380mm |
| Width (W) | 1250mm | 1500mm | 1750mm | 2000mm | 1250mm | 1500mm | 1750mm | 2000mm | 2250mm |
| Depth (D) | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm |
| Door Opening Height (DH) | 980mm | 980mm | 980mm | 980mm | 1280mm | 1280mm | 1280mm | 1280mm | 1280mm |
| Door Opening Width (DW) | 1148mm | 1398mm | 1648mm | 1898mm | 1148mm | 1398mm | 1648mm | 1898mm | 2148mm |
| Working Depth (WD) | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm |
| Backboard Size (WxH) | 1225 x 1085mm | 1475 x 1085mm | 1725 x 1085mm | 1975 x 1085mm | 1225 x 1385mm | 1475 x 1385mm | 1725 x 1385mm | 1975 x 1385mm | 2225 x 1385mm |
| Weight (kg) (3mm thickness) | 176kg | 202kg | 234kg | 266kg | 201kg | 231kg | 269kg | 305kg | 343kg |
| Stock Code (3mm Galv) | THM0024672 | THM0024674 | THM0024676 | THM0024680 | THM0024682 | THM0024685 | THM0024687 | THM0024689 | THM0024691 |
| Stock Code (3mm Painted Grey) | THM0024673 | THM0024675 | THM0024678 | THM0024681 | THM0024684 | THM0024686 | THM0024688 | THM0024690 | THM0024692 |

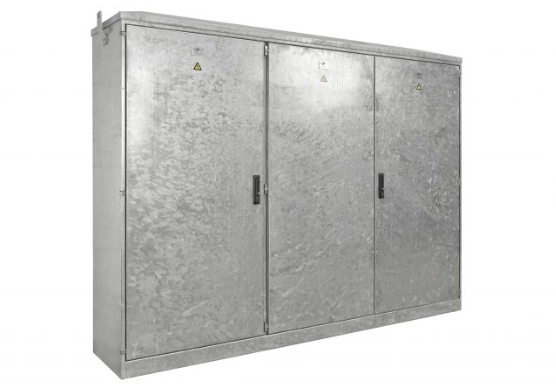

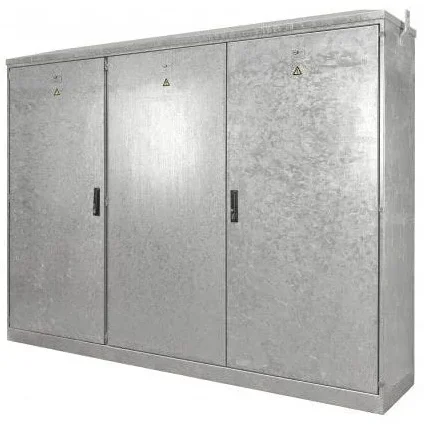

Triple Door Feeder Pillars
View Lucy Zodion Triple Door Feeder Pillars >>
Material: Galvanised Steel
IP Rating: IP65
Sizes: 4 sizes
Applications: Large LV panels, substations, heavy-load sites
View Sizes & Dimensions
| Feeder Pillar Size Code | 14 | 16 | 18 | 20 | 22 | 24 | 26 | ||
|---|---|---|---|---|---|---|---|---|---|
| Height (H) Above Ground | 1300mm | 1300mm | 1300mm | 1300mm | 1600mm | 1600mm | 1600mm | ||
| Root Section (R) | 380mm | 380mm | 380mm | 380mm | 380mm | 380mm | 380mm | ||
| Width (W) | 1250mm | 1500mm | 1750mm | 2000mm | 1250mm | 1500mm | 1750mm | ||
| Depth (D) | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm | ||
| Door Opening Height (DH) | 980mm | 980mm | 980mm | 980mm | 1280mm | 1280mm | 1280mm | ||
| Door Opening Width (DW) | 1148mm | 1398mm | 1648mm | 1898mm | 1148mm | 1398mm | 1648mm | ||
| Working Depth (WD) | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | ||
| Backboard Size (WxH) | 1225 x 1085mm | 1475 x 1085mm | 1725 x 1085mm | 1975 x 1085mm | 1225 x 1385mm | 1475 x 1385mm | 1725 x 1385mm | ||
| Weight (kg) (3mm thickness) | 176kg | 202kg | 234kg | 266kg | 201kg | 231kg | 269kg | ||
| Stock Code (3mm Galv) | THM0024672 | THM0024674 | THM0024676 | THM0024680 | THM0024682 | THM0024685 | THM0024687 | THM0024689 | THM0024691 |
| Stock Code (3mm Painted Grey) | THM0024673 | THM0024675 | THM0024678 | THM0024681 | THM0024684 | THM0024686 | THM0024688 | THM0024690 | THM0024692 |
In-Ground Feeder Pillars (Westminster)
View Lucy Westminster In Ground Feeder Pillars >>
Material: Galvanised Steel with IP67 Shell
IP Rating: IP67
Sizes: Retractable formats
Applications: Temporary or discreet power supply, events, public realm
View Sizes & Dimensions
| Outgoing Ways | 2–4 Ways | 5 Ways |
|---|---|---|
| Length (L) | 905 mm | 1035 mm |
| Width | 518 mm | 518 mm |
| Tub Height | 475 mm | 475 mm |
| Raised Height (H) | 590 mm | 720 mm |
| Raised Width (W) | 275 mm | 275 mm |
Our LV feeder pillars are engineered for reliable electrical power distribution across indoor and outdoor environments. Supplied as standard or bespoke builds, each feeder pillar enclosure is available in galvanised steel, stainless steel or coated finishes, with ingress protection up to IP65 and compatibility for network voltages up to 1000V.As a distributor of Lucy Zodion, we supply the full range of Lucy Fortress and Westminster feeder pillars, including slimline, single door, double door, and mini variants. Pillars are configurable with pre-wired assemblies, DNO cut-outs, SWA cable glands, CET entries, and earthing blocks.Ideal for low-voltage installations, these electrical feeder pillars serve both utility and commercial sectors. Pillars are supplied as empty enclosures or factory-built units with RCBO, RCD, and MCB devices – suitable for single-phase or three-phase configurations up to 1600A. Locking mechanisms include vandal-resistant Tri-head, padlockable, and wedge lock options.Our feeder pillars are deployed across a wide range of industries and environments:
- Substations – LV network connection & protection
- Street Lighting – Isolator units and distribution blocks
- Highways & Motorways – CCTV, signage & telecoms
- Airports & Rail – Safety-critical power infrastructure
- Retail & Leisure – Car park and façade lighting control
- Renewables – Grid-tied solar and wind connections
- Temporary Power – Event and generator hook-ups
Need a pillar for an unusual specification? Use our custom enquiry form or speak to our experts for fast technical support.
Lucy Fortress Feeder Pillars
Lucy Zodion’s Fortress range is a leading solution for secure, reliable and customisable electrical feeder pillar installations across utility, highways, rail and urban infrastructure projects. Engineered for long-term performance, the Lucy Fortress feeder pillars are manufactured from galvanised steel, stainless steel or cast iron, and are available in a full range of RAL colours with anti-corrosion and vandal-resistant finishes (including G2A Highways coating).
Suitable for low voltage power distribution networks up to 1000V, the pillars offer replaceable internal backboards, anti-condensation heater options, and secure lockable enclosures. This makes the Fortress range ideal for future-proofing site power networks, while allowing easy maintenance and expansion.
Available in 28 standard sizes including Mini, Slimline, Single, Double and Triple Door feeder pillars, the Fortress enclosures can be supplied empty or populated with LV switchgear, metering and termination hardware.
 |
|||

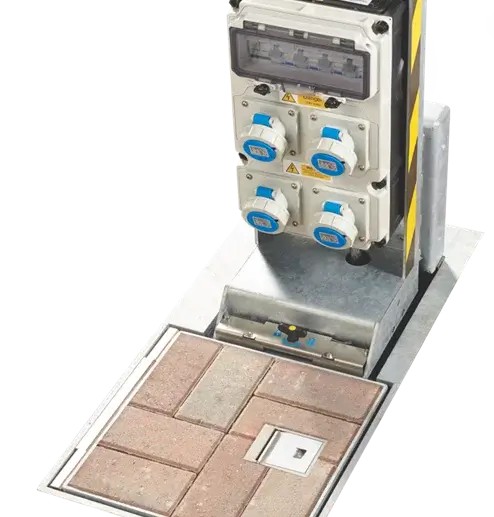

Westminster In-Ground Feeder Pillars

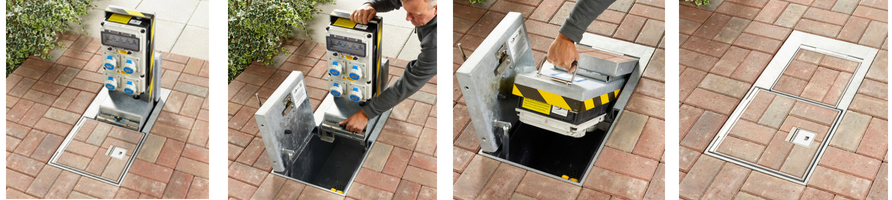

The Lucy Zodion Westminster retractable feeder pillar offers a secure and space-saving solution for temporary or semi-permanent low voltage power access. Engineered from galvanised steel with an IP67-rated enclosure, the pillar deploys from ground to socket in under 60 seconds and retracts completely when not in use—ideal for high footfall or publicly visible environments.
These in-ground electrical feeder pillars are specified with earth leakage protection, overload safeguards, and metering or data access where required. Popular in applications like markets, event spaces, transport hubs and shopping centres, the Westminster range delivers flexibility and safety in equal measure.
- Versatile: Designed for power, metering and data in commercial and civic environments.
- Discreet: Flush-fitting top with 50mm recess allows for surface matching and hidden installation.
- Robust: IP67 ingress protection, stainless steel hinges, and tamper-proof locking.
- Safe: Built to BS7671 and BSEN 61439 standards for safe operation in public spaces.
Related Reading: Feeder Pillar Installation & Maintenance Guide
Public & Street Lighting Feeder Pillars
Our street lighting feeder pillars are manufactured from hot-dip galvanised steel to IEC60947 standards and designed to protect and control LV power distribution networks. These enclosures support metered and unmetered public lighting installations with 3-phase configurations and HRC type fuses for short-circuit protection.

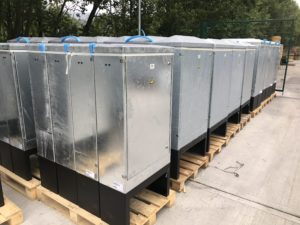

Custom Feeder Pillars for Critical Infrastructure
Thorne & Derrick works in partnership with Lucy Zodion to develop custom-built feeder pillars for NHS trusts, rail projects, and utility networks. These pillars are fabricated with IP65-rated galvanised steel enclosures and integrated foundations, enabling safe connection and termination of 3- and 4-core XLPE SWA LSF or PVC cables (BS5467 / BS6724).
In this example for an NHS facility, single and double door feeder pillars were configured to distribute power from LV switchboards and substations to site-wide systems.
Another example includes a pre-wired feeder pillar built for a TransPennine Express train care facility. This 3mm thick galvanised enclosure includes a removable root section and bitumen base coat, housing a 250A busbar with 3P+N switch disconnect. All internal wiring and galvanised trunking complies with BS5467 660V/1000V.
Rail Feeder Pillars & Network Rail Approved Solutions
We supply GRP feeder pillars for rail and trackside installations, engineered for low-maintenance, corrosion resistance, and safety in electrified zones. GRP feeder pillars, cabinets and kiosks are non-conductive and eliminate the risk of dangerous touch voltages in public or PADS-specified areas.
These Network Rail approved feeder pillars can be equipped with:
- DNO service heads
- Isolation transformers
- DC immune RCDs
- Cut-outs, isolators & CT chambers
- Switchgear and metering panels
Featured here is a Lucy Fortress F30 double-door feeder pillar with 315A MEM fuse switch disconnect, mounted to an 18mm treated plywood backboard. Optional features include integral lighting, heater, photocell control, and timed keyswitches.
Each pillar is constructed from 3mm thick steel, finished with bitumen-coated root sections and tri-head locking mechanisms for anti-vandal protection.
Feeder Pillar Cabinets for EV Charging
Image: Siemens – Electrical feeder pillar supporting a three-phase EV charging installation
Feeder pillar cabinets play a critical role in delivering safe, low voltage power distribution to electric vehicle (EV) charging stations. These pillars are typically supplied with a 3-phase DNO (Distribution Network Operator) connection and house protective switchgear such as RCDs and MCBs to guard against overloads and electrical faults.
The internal components are fully bonded to earth to meet safety standards and ensure reliable operation of the EV charging pillars. Power is routed underground via cable duct to the charge unit, with enclosures designed to IP-rated standards for external use. These cabinets are ideal for public and private EV infrastructure including forecourts, commercial fleets, and local authority car parks.
Important: As this equipment handles live mains voltage, installation and maintenance should only be performed by qualified electricians wearing appropriate arc flash protective clothing.
Standard Feeder Pillar Construction
Our feeder pillars are manufactured to the highest industry standards, combining durability, weather resistance, and security for electrical power distribution. Each electrical feeder pillar is designed to meet outdoor installation requirements and is suitable for applications such as street lighting, EV charging, and public infrastructure projects.
- Constructed from 3mm or 5mm mild steel hot-dip galvanised to BS EN ISO 1461 for corrosion resistance.
- Optional galvanised and painted finishes for enhanced durability in harsh environments.
- Detachable root sections for straightforward on-site installation.
- 18mm exterior-grade plywood backboard for safe mounting of switchgear and control equipment.
- Anti-vandal flush-mounted hinges for maximum security.
- IP65-rated door seals (applies to Slimline, Single & Double Door Lucy Fortress feeder pillars).
- Supplied with secure locking systems — Tri-head or Wedge lock mechanisms as standard.
Additional Feeder Pillar Options & Customisations
Our feeder pillars can be customised to meet site-specific electrical and environmental demands. Working closely with Lucy Zodion and other leading brands, we supply standard and bespoke feeder pillar enclosures with a wide range of finishes, materials, and accessories to support critical low voltage power distribution projects across all industries.
- Customisable RAL or BS paint finishes — including G2A highway-grade coatings.
- Stainless steel feeder pillars available to BS EN 10088-1 stainless steel standards for high-corrosion environments.
- Optional pre-wired assemblies tested to BS 7671 for fast, safe on-site deployment.
- External power outlets (sockets) available for service or maintenance use.
- Feeder pillar “cat-flaps” and cable entry management for flexible installations.
- Multiple lock styles including Tri-head, Padlock, Wedge, and Security Bolt options.
Feeder Pillars – Frequently Asked Questions
Q: What is the best feeder pillar for outdoor electrical installations?
A: Galvanised steel or GRP feeder pillars are typically best for outdoor use due to their weather resistance and durability. However, the ideal choice depends on your site’s environmental conditions and electrical load requirements.
Q: How do I choose the right size and specification for a feeder pillar?
A: It’s based on your current rating, switchgear type, and how many circuits you need to terminate. Internal space for wiring and future expansion should also be considered — but many specifiers miss a few critical layout factors.
Q: Are stainless steel or GRP feeder pillars better for long-term use?
A: Stainless steel offers strength and vandal resistance, while GRP is ideal for coastal or corrosive environments due to its non-conductive, rust-proof properties. Which one performs better long-term depends on your application and exposure levels.
Ready to place an order? Whether you’ve selected a suitable feeder pillar, cabinet or enclosure for your operations, or are looking for a custom-built design – our experts can provide specialist knowledge and bespoke quotations.
