Capstan Winch | CBS C-1035 Lightweight Winch

lightweight capstan winch

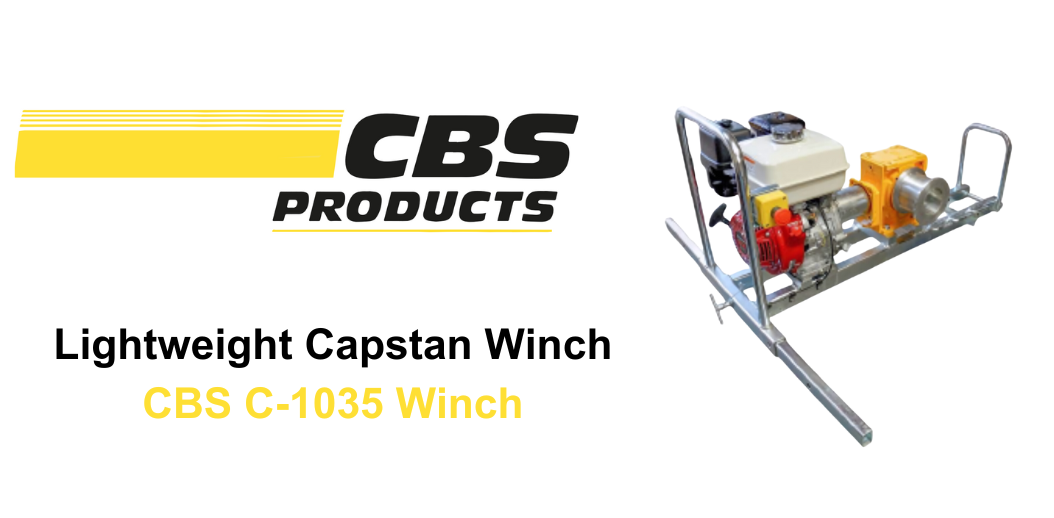

CBS C-1035 Winch

The Lightweight winch is designed by CBS Products for overhead lines to provide reliable and safe lifting operations for 11/33kV manhole work and maintenance requirements. Winching is controlled via a proportional hydraulic valve giving the operator precise control over the load when needed or high speed if necessary.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.

Cable Winch Specification

Powered by a 5.5HP Honda engine through a right angle gearbox, the C-1035-05 offers a pulling capacity of 500kg. The C-1035-10 has an 8HP Honda Engine with a pulling capacity of 1000kg.

Specifications	C-1035-05-0001	C-1035-10
Capacity	500kg	1000kg
Engine	5.5HP	8HP
Length	1100mm	1250mm
Width	500mm	500mm
Height	600mm	600mm
Weight	69kg	99kg

Cable Winch ORDERING INFORMATION

These Lightweight Capstan Winches are designed specifically for use over manholes.

C-1035-05-0001	Lightweight Capstan Winch – 500kg
C-1035-10	Lightweight Capstan Winch – 1000kg

optional extras

D-918-14-100-F	100m of 14mm 3 strand pre-stretched rope with soft eyes
D-918-14-200-F	200m of 14mm 3 strand pre-stretched rope with soft eyes
