Cembre B70-MP36E Pump | Electro-Hydraulic Pump Tool

Cembre B70M-P36E Pump

Cembre B70M-P36E

Portable Hydraulic Pumps 700 Bar

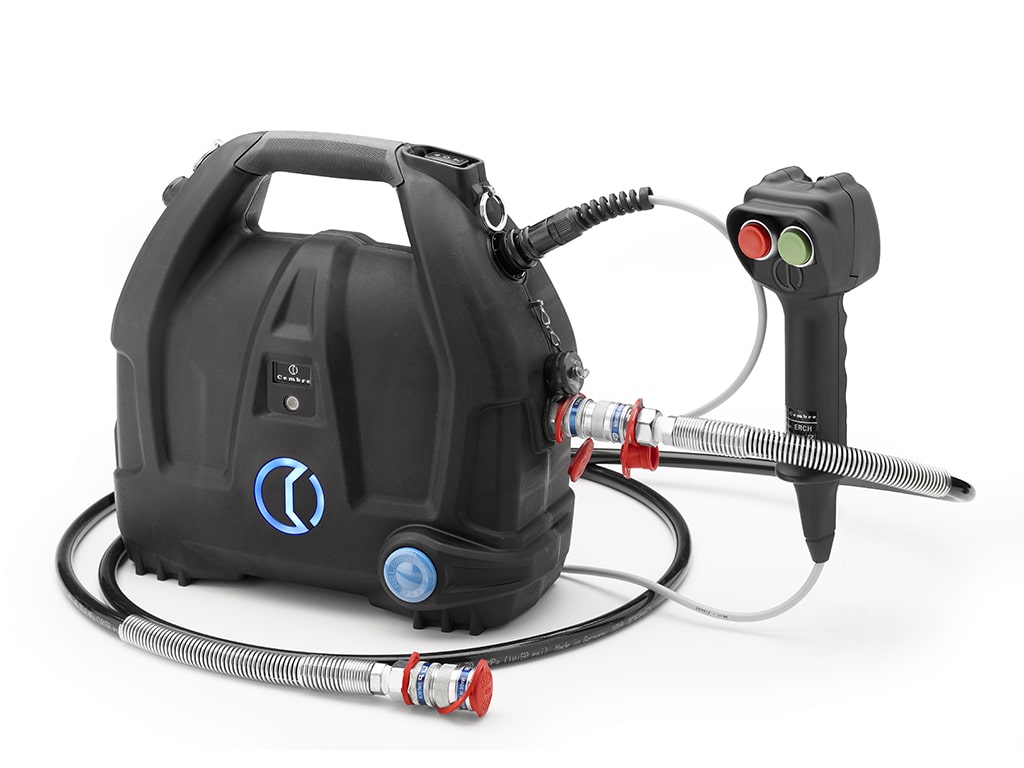

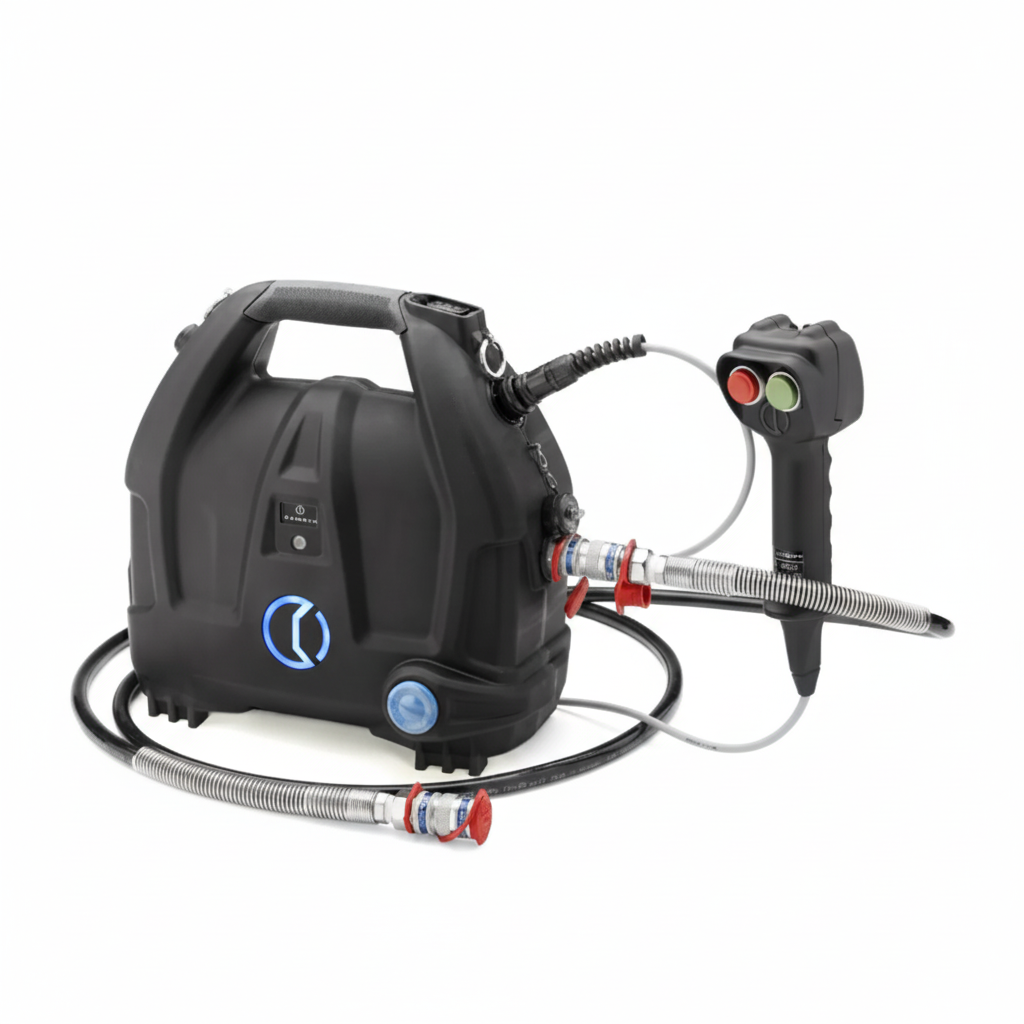

Cembre B70M-P36E is a new portable electro-hydraulic pump which is battery operated for independent use.

The B70M-P36E has the same inherent strength as the Cembre range of 18V tools, including the range of Hydraulic Cable Cutting Tools –  powered by an all new 36.0V 6.2Ah Li-Ion high capacity rechargeable battery providing independence and portability.

Despite its strength, the electro-hydraulic pump is lightweight with high capacity and equipped with an innovative remote control: suitable for a wide range of applications.

Fitted with a maximum pressure sensor (EPS) for enhanced precision and repeatability of the maximum pressure cycle, and a pressure relief valve providing additional safety for the operator. These units feature the Smart Release system which automatically retracts the ram at the end of the operating cycle.

The innovative remote control provides LED working lights and an OLED display of essential real time tool operating information including:

• Operating mode selection (cutting, crimping or piercing)
• Release mode selection: Smart release, manual release  (Smart release, manual release)
• Minimum set pressure and momentary pressure reached expressed in bar allows verification of correct operation
• Battery charge level
• No. of cycles performed
• No. of cycles before scheduled recommended maintenance
• Motor temperature

The manual toggle button on the B70M-P36E pump can be used to operate and release the pressure directly from the pump (inhibited when the remote control is used for safety reasons). Oil top-up inlet for easy access to the oil reservoir.

The Cembre logo acts as an indicator by changing colour to provide the operator with instantaneous visual confirmation of the pumps status, such as; pump ready, pump in use, end of cycle, cycle error, anomaly, maintenance required.

The rigid structure of the plastic body ensures adequate mechanical protection and guarantees IP44M protection due to the presence of gaskets at the interface of the body shells.

The ergonomically designed handle helps to increase operator comfort when moving the B70M-P36E pump.

Quieter operation, and the absence of vibrations ensure maximum operator comfort. Equipped with a 3m long high pressure hose complete with a male quick coupling on the pump and a self-locking female quick coupling. The pressure can be released at any time using the pressure release button.

Electro-Hydraulic Pump User Instructions

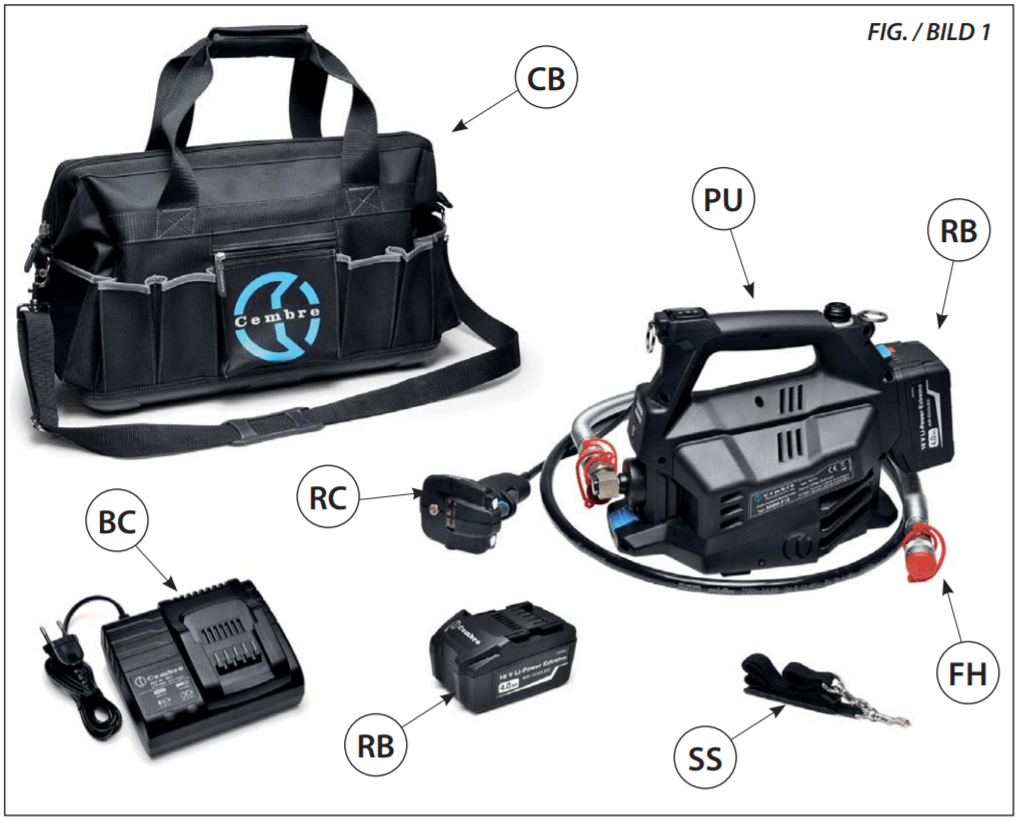

• Preparation
  • The pump can be easily carried by using the main handle (10) or the shoulder strap (1).
  • Check the battery charge before starting any work and recharge if necessary.
  • The pump has a sealed hydraulic circuit, allowing it to operate in any position.
• Connecting The Remote Controller

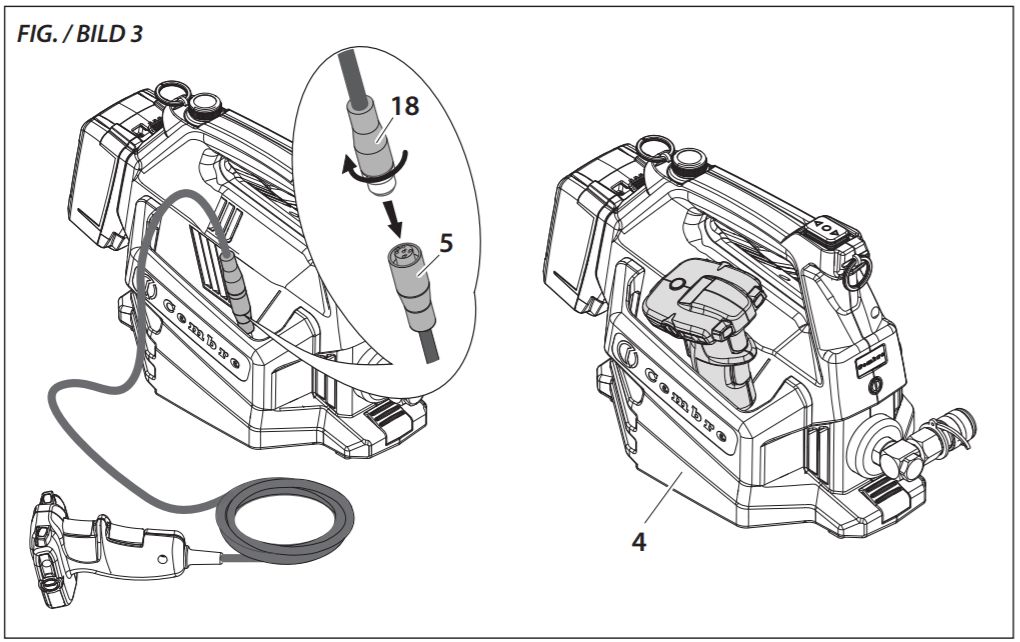

  • Extract the connector (5) located inside the side pocket of the pump.
  • Connect the remote controller using the connector (18), and turn the dial to lock it.
  • At the end of the operation, the controller can be stored inside the side pocket (4).
• Connecting The Flexible Hose
  • Fully unravel the hose
  • Connect the male coupler (20) of the flexible hose to the female coupler (8) of the pump.
  • Connect the female coupler (21) of the flexible hose to the male coupler (22) of the hydraulic head.
• Operation
  • On the remote controller screen the operator can view and change some if the pump settings using the touch button.

How to Operate The Cembre B70M-P36E Pump

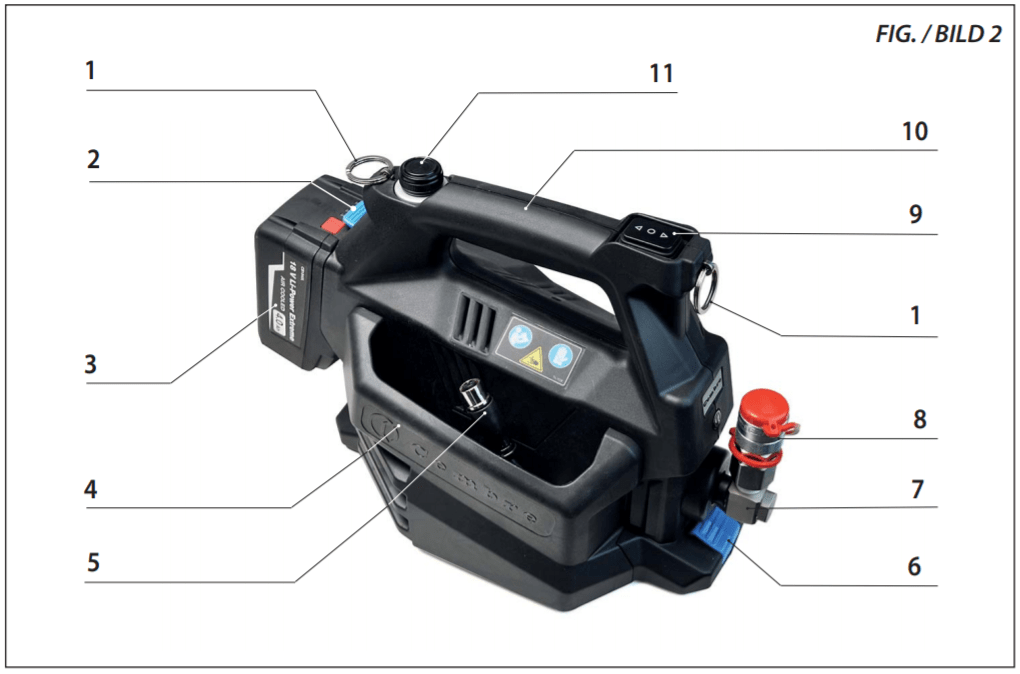

Components:

1. Strap Fastening Ring
2. Battery Release
3. Battery
4. Side Pocket
5. Remote Control Connector
6. Mechanical Pressure Release
7. Swivel Attachment
8. Quick Coupling
9. Control Button
10. Handle
11. Oil Filler Cap

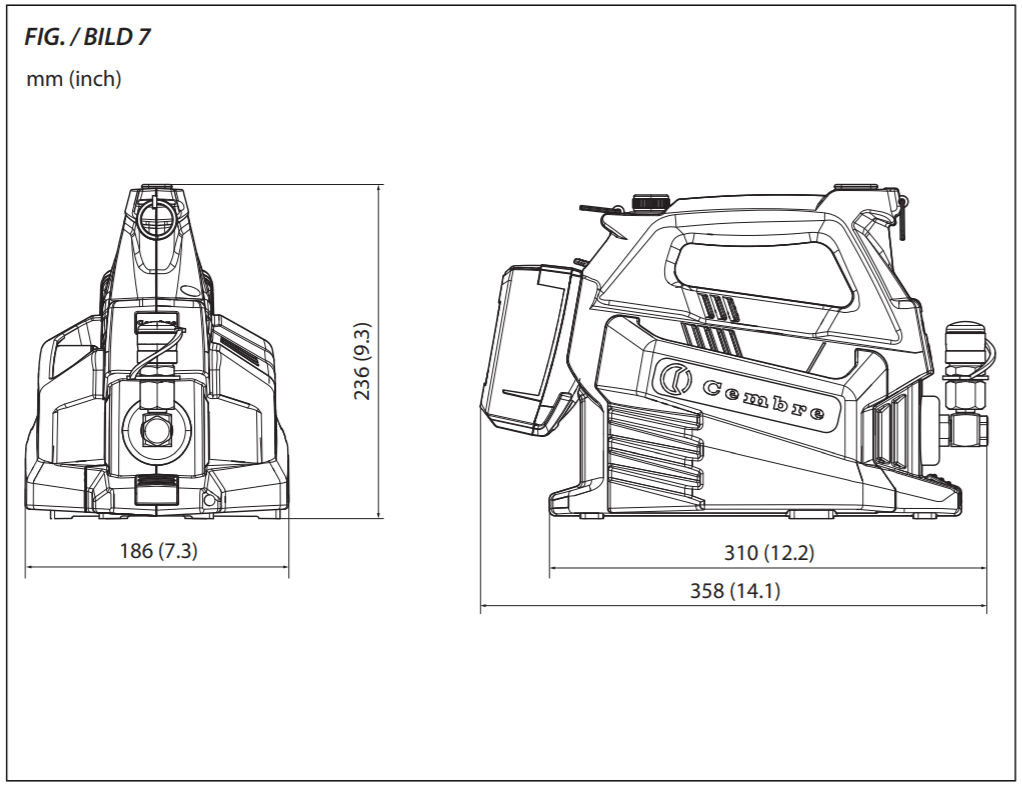

Cembre B70M-P36E Pump

MAINTENANCE Of The Cembre B70M-P36E

Very little daily maintenance is needed due to the robust properties of the B70M-P36E pump. Compliance with the following maintenance guidelines, will ensure continued optimum performance:

• Thorough Cleaning –  After every use the pump and accessories must be wiped with a clean cloth, taking care to remove any residue. Hydrocarbon products should not be used to clean rubber parts of the product.
• Use Of Canvas Bag – The special canvas bag provided should always be used to protect the pump and accessories from accidental damage and dust.
• Storage – After job completion, the pressure of the oil should always be released by holding down the release button. The ram of the connected hydraulic head should be completely retracted before disconnecting.
  • Remove the battery from the pump
  • Disconnect the remote controller
  • Disconnect the flexible hose
  • Store the pump and accessories in the canvas bag, and ion a dry place

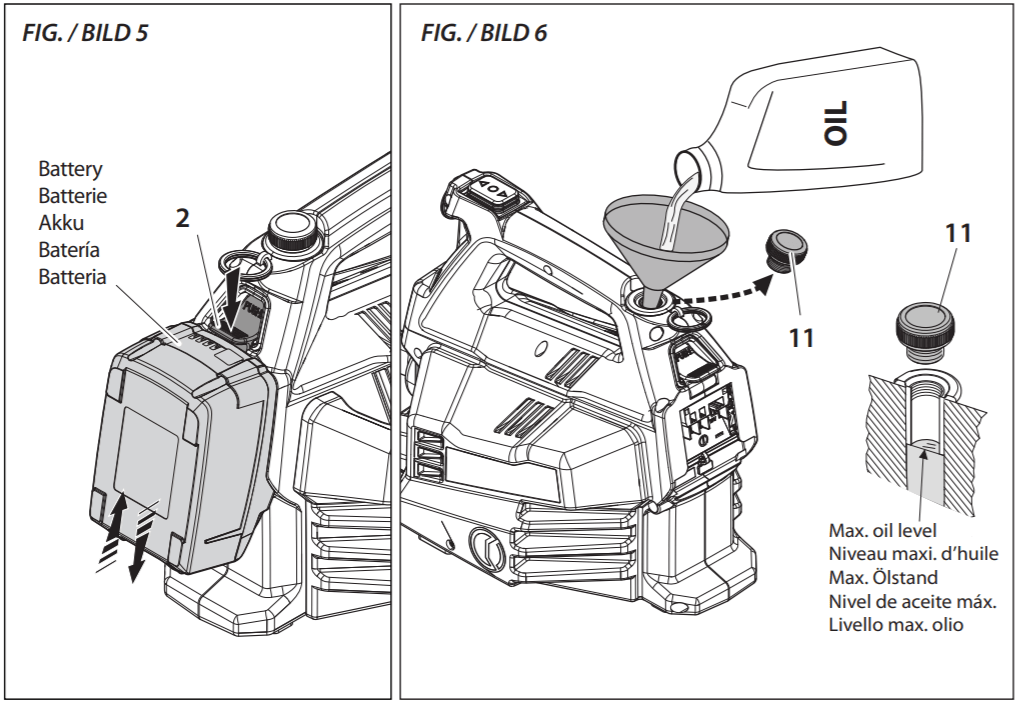

• Topping Up Oil – The oil level of the pump should be checked at least every 6 months. Top up if necessary:
  • Position the pump on its base on a flat surface
  • Completely discharge the oil pressure by pushing the pressure release button.
  • Unscrew the filler cap
  • Use a funnel to top up very slowly, filling the oil reservoir to the maximum level.
  • When the operation is finished, replace the cap.

Warnings

Care should be taken when using and operating the Cembre B70M-P36E – some general advice is provided here however should you have any additional queries please do not hesitate to contact us.

• Hydraulic pumps are for use with hydraulic heads, therefore, any application use that the product is not intended for can be dangerous for the operator.
• Ensure that the operator is concentrating on the work being performed while also maintaining a balanced working position.
• Avoid dirty surfaces such as those with dust and sand present. This can damage any electro-hydraulic equipment.
• Protect the pump and accessories from moisture to avoid any damage.
• Never connect the pump to a hydraulic head still containing oil, as this could cause the pump to malfunction.
• Keep the pump and flexible hose away from naked flames and sources of heat above 70°C.

➡ For Cembre electrical connections, see Cable Crimps, Lugs & Connectors

Contact T&D to discuss crimping cables at MV-HV, including 11kV-33kV, to ensure correct Cembre tool, lug/splice and die set selection – visit battery crimping tools for repetitive crimping of cables without strain injury or worker fatigue.

Full range of battery cable cutting tools also available.

Cable Cutting & Cable Crimping Tools
