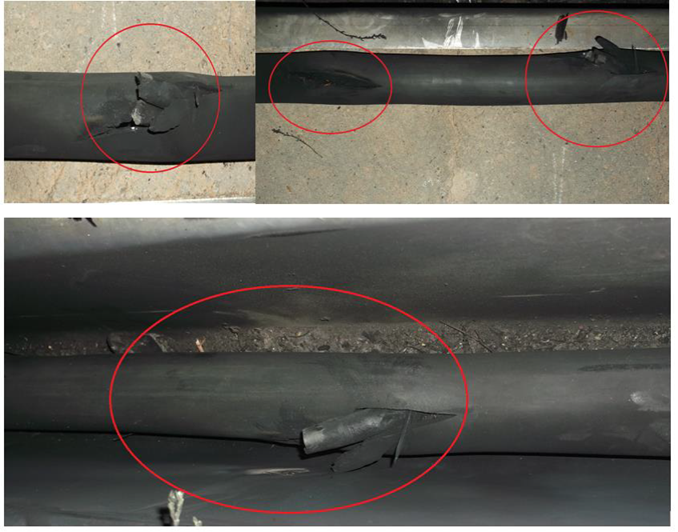

Repairing Cables

3M Resin Flexible Cable Repair & Jointing Kits are an adjustable cold pour resin system for the permanent jointing and cable repair of single or multi-core power cables operating at LV (Low Voltage), MV (Medium Voltage) or HV (High Voltage).

The 3M Scotchcast Resin bonds attach securely to the cable sheath providing a permanent joint or repair with a tight seal. This seal won’t tear or come loose after installation. The cable joints can be used to joint or repair frequently coiled cables and are tough enough to use in weather exposed, direct burial or submerged locations. Three kit sizes are available enabling repairs to be made on cable ranging from 40mm O/D to 150mm O/D. 3M 2131 Flexible Resin is suitable for use with these joint kits.

Extended Cable Repair

The Scotchcast cable repair can be overlapped for extended repair of cable jackets – the mould is a flexible wrap around design and is removed during the resin curing process – a new repair installation can be made that overlaps the initial repair so long as the finished diameter fits within the tolerance range of the M series kit (moulds can be re-sed up to 10 times). The 3M mould can be removed once the resin is no longer tacky – here are the 3M Electrical guidance times for “de-moulding” and resin curing times.

Process Figures

The 2131 resin is classified as LI-LMP-MMP (low voltage insulation and mechanical protection) according to Cenelec HD 631.1 S2 Standard.

Repairing Medium Voltage Power Cables

For the repair of MV HV cables with damaged cable sheaths in the 3.3kV/11kV/25kV and 33kV voltage levels additional components and Scotch Electrical Tapes are required.

Scotch 13 Tape is a semi-conductive tape used to replace the semi-con layer on the core of the MV HV cable – see Scotch 13 Tape.

Scotch 130C Tape is used to build up the core primary insulation ( similar to Scotch 23 Tape) – see Scotch 130C Tape.

Scotch 24 Tape is a copper mesh tape to replace the copper screen over the MV HV cable core – see Scotch 24 Tape.

Scotch 33 Tape is a PVC insulation tape used to secure and retain the Scotch 24 layers – see Scotch 33 Tape.

Please note – none of these Scotch electrical tapes are relevant for use on the LV Sheath Repair.

Flexible Cable Repair & Jointing – 3M Resin Features

3M Resin Cable Joints

• Simple installation – no workshop needed
• Non-vulcanising cable repair and cable jointing – no costly equipment needed
• Drastic reduction in cable repair time – compared to vulcanising
• No heat shrinking required – safer system, no permit for hot work required
• High performance – repaired/jointed section can be reeled without sagging
• Permanent – both electrically and mechanically
• No end lifting – bonds to all modern cable sheath materials such as neoprene, polychoroprene and nitrile/PVC even PVC, EPR and hypalon
• Abrasion resistant – equivalent to vulcanising
• Weather resistant – over a wide temperature range
• Flame retardant 3M Resin

3M Flexible Cable Jointing And Repair System

Scotchcast Resin Repair Kit – M Series + 2131 Resin

• Versatile, can be used for everything from minor cable jacket repair, damage to the inner insulation, or a full cable joint

• Repair sleeve can be re-used up to 10 times

• Add suitable packs of 2131 resin to repair many different cable sizes

• Resin bonds to all modern LV MV HV cable sheath types

• No heat required, no hot work permit – cold applied cable repair system

• Abrasion, weather resistant, and flame retardant resin

• Retain the flexibility of the original cable bend radius

• For cables 40mm-150mm outside diameters (OD)

• Kits complete with resin (non re-usable) are available for smaller cables, 82-F, and 91-AV Series

Pictured: 3M Scotchcast cable repair products are used extensively for repairing flexible cables in the mining, rail and port authority sector this includes cables for the long travel of cranes, container handling equipment and ship loaders/un-loaders, this includes Protolon cables operating at medium/high voltages.

Flexible Cable Repair & Jointing – 3M Resin Kits

Should you require any assistance with the selection of 3M M range of Cable Repair Products using Scotchcast Resins please contact us:

Cable Joint & Cable Jacket Repair Kit Installation

• Supplemental Jointing Instructions
• Cable Insulation Repair
• Cable Conductor Repair
• Cable Splice / Joint
• Cable Crotch Seal

Scotchcast Kit Contents

• Funnels
• Wrap-around Splice Mould
• Rubber Mould Straps
• Funnel Supports
• 3M Cable Repair Spacer Web
• 3M Scotchcast 2131 Resin Flame-Retardant Compound – this is required but is NOT included in Kits

Flexible Cable Repairs & Joints For Crane Grabs

Flexible and reeling cables are subject to frequent coiling movement and high mechanical strain – therefore any cable repair solution should replicate the properties of that cable so as not to compromise operational efficiency.

The 3M Scotchcast M flexible cable joint repair kits are suitable for the repair of flexible reeling crane cables which pass over guide pulleys and drums especially in the container handling and port authority industry. This includes repairs to Cordaflex flexible and reeling cables on mobile equipment such as ship loaders, gantry cranes, stackers, reclaimers, inclinators, hoists and spreader cranes.

Typical Grabbing Cranes – Mobile Harbour Cranes (MHC’s)

• Multi purpose cranes for bulk handling, break bulk, container handling
• Floating cranes
• Barge or pontoon mounted cranes
• Slewing cranes (jib cranes)
• Fixed or rail mounted cranes with a single jib or double jib (level luffing)
• Ship unloaders (gantry cranes)
• Unloaders are normally used for handling very large volumes of bulk materials

 ➡ Should you require customer service or technical support on the selection or specification of LV MV HV Cable Accessories please contact us – view the full range of 3M Resin Kits below.
