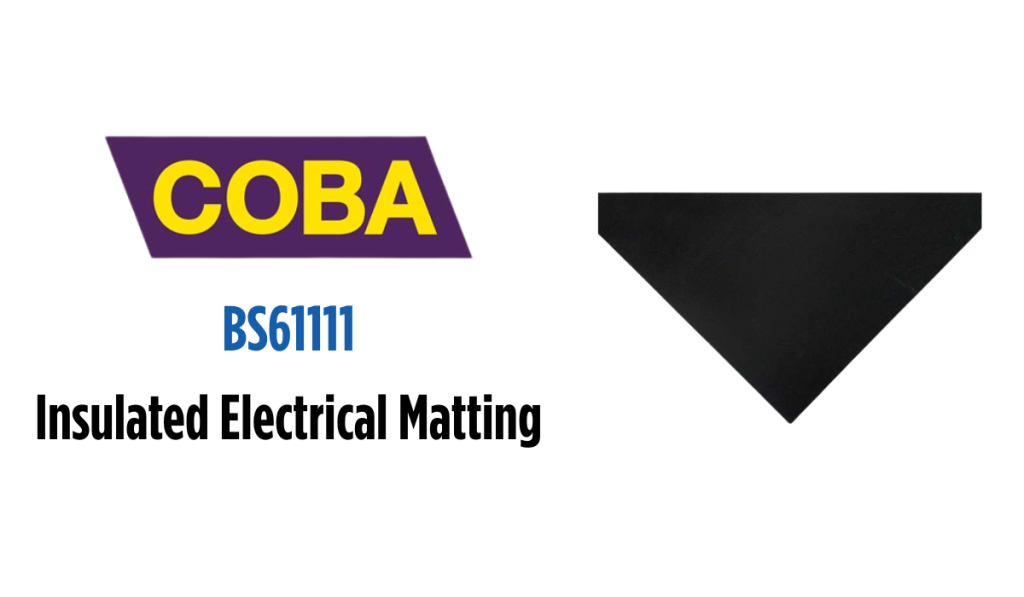

BS61111-Compliant Insulating Mats for LV & HV Electrical Safety

The COBAswitch BS EN 61111:2009 insulating matting provides superior electrical protection for operatives working near high-voltage equipment. Designed for switchboards, substations, and industrial applications, these mats comply with the latest IEC 61111:2009 / BS EN 61111:2009 safety standards

  • Operator Safety: Protects against electrical shocks in HV environments.
  • Standards Compliant: Meets IEC 61111:2009 / BS EN 61111:2009.
  • Voltage Classes: Class 0, Class 2, and Class 4 with thickness options.
  • Colour Coded: Reverse side indicates voltage class visually.
  • Durable Material: EPDM rubber for insulation and longevity.
  • Anti-Slip Surface: Ribbed for grip, slip resistance, and comfort.
  • Easy Installation: Loose-lay—no adhesives or fixings required.
  • Resistant Build: UV, oil, and acid resistant for dry indoor use.
  • Temperature Range: Operates from -30°C to +80°C.
  • Low Maintenance: Hose or pressure wash with mild detergent.

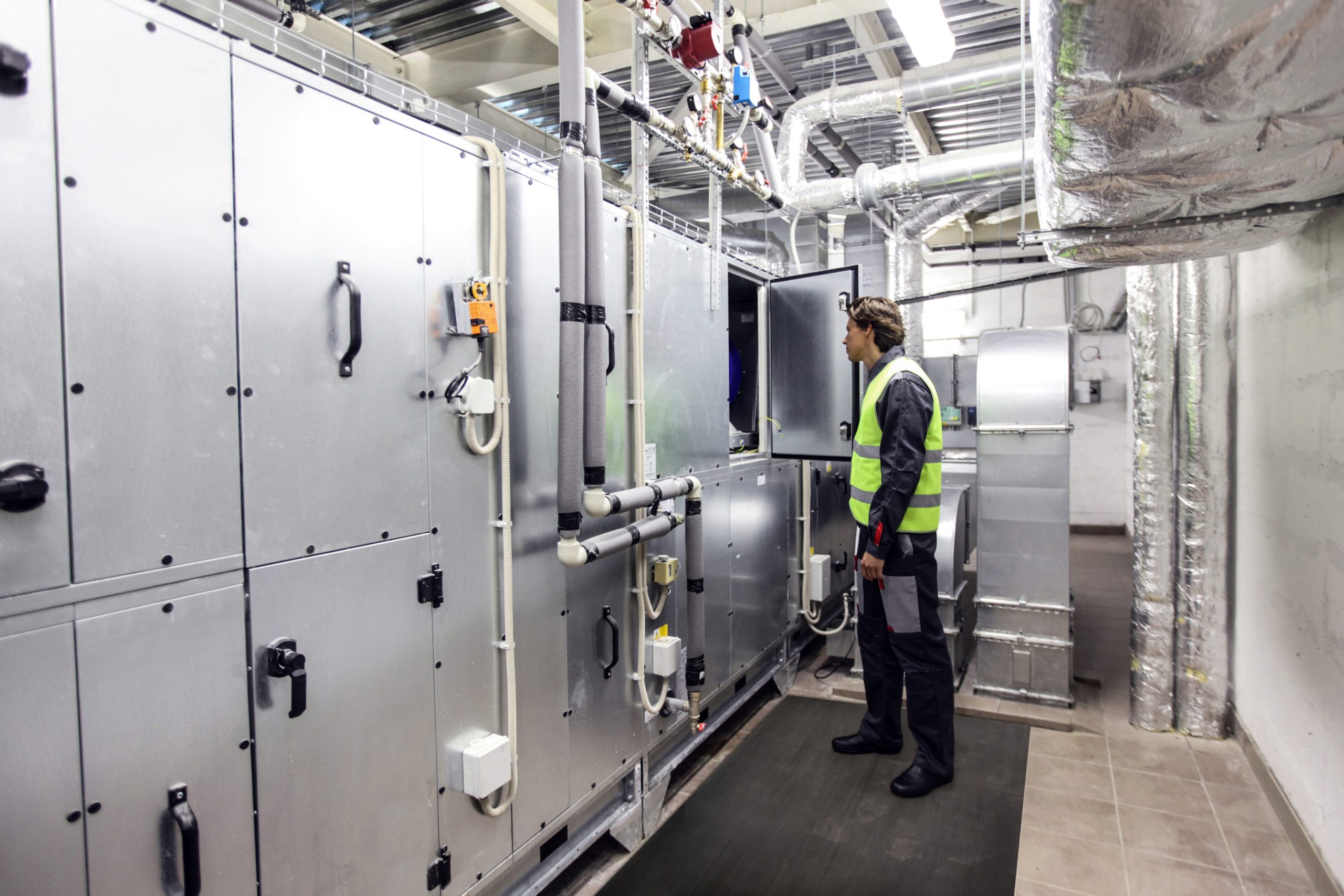

  • Application: Ideal for switchboards and HV equipment areas.

Insulating Matting | BS61111 Electrical Mats | LV HV


PRODUCT SPECIFICATION

The COBAswitch BS EN 61111:2009 insulating mats are engineered for maximum electrical safety, offering three thickness options (3mm, 4mm, 5mm) to match Class 0, 2, and 4 voltage requirements. Below are the available sizes, weights, and part numbers for easy selection:

Component Specification
Standard BS EN 61111:2009 / IEC 61111:2009
Material EPDM rubber
Surface Finish Fine fluted ribbed (anti-slip)
Available Thicknesses 3 mm, 4 mm, 5 mm
Roll Length 10 metres
Min. Operating Temperature -30°C
Max. Operating Temperature +80°C
UV Resistance Yes
Chemical Resistance Resistant to acid and oil at low temperatures
Environmental Use Dry indoor environments
Typical Applications Open switchboards, substations, LV/HV areas
Installation Loose lay (no adhesives or fixings required)
Cleaning Method Hose down or pressure wash with mild detergent

Applications

  • High-voltage switchgear & substations
  • Electrical maintenance & utility work
  • Power generation & distribution panels
  • Industrial plants with live electrical equipment

Why Choose COBAswitch™ Insulating Mats?

  • Certified reliability in live working environments.

  • Trusted by professionals for use in electrical substations, LV cabinets, and panel boards.

  • Global compliance with BS EN and IEC standards.

  • Fast lead times, UK-based support, and customisation available.


COBA

COBA® – Ultimate Electrical Insulation

Trusted by professionals, COBA’s BS EN 61111-certified mats deliver unmatched protection for high-voltage environments. Engineered with EPDM rubber, our color-coded mats feature anti-slip surfaces and withstand extreme temperatures (-30°C to +80°C). Available in Class 0-4 thicknesses (3mm-5mm) for substations, switchgear and industrial applications.
