PFISTERER CONNEX 870 330 150
Pfisterer 870330150Â Connex Separable Connectors Size 3 without voltage tap are suitable for terminating and connecting high voltage single core cables (XLPE EPR) with copper wire screens up to 33kV/36kV.
The MV-CONNEX range of Inner Cone Bushing separable connectors manufactured by Pfisterer are suitable for single core cables with copper wire screen/shield without armouring – variant connectors are also available for single or multi-core medium voltage power cables with copper tape screen and galvanised steel wire armour (SWA) or wire braided type cables.

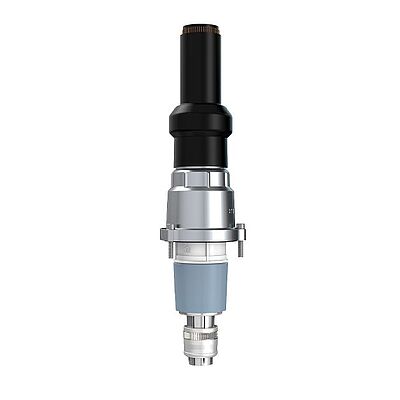

870 330 150 is a Pfisterer MV-CONNEX Size 3 1250A Separable Connector (Above Ground) Inner Cone Plug Connector without voltage tap facility to suit 150sqmm single core Copper Wire Screen 33/36kV cables (set of 3 phases).
PFISTERER 870 330 150 CONNEX SEPARABLE CONNECTORS (SIZE 3)Â
33KV/36KV
- Manufacturer Pfisterer
- Brand CONNEX
- Separable Connector Size 3
- Maximum Operating Voltage : 33kV/36kV
- Current Rating 1250A (amps)
- Cable Cross Section : 150sqmm
- Diameter Over Cable Conductor : 13.5mm – 15.7mm
- Cable Insulation Thickness : 8.0mm
- Diameter Over XLPE Cable Insulation (33kV/36kV) : 30.0mm – 34.0mm
- See also | Separable Connectors | Joints Terminations MV HV
PFISTERER SIZE 3 MV CONNEX
SEPARABLE CONNECTOR SPECIFICATIONS
| Pfisterer Product No. (w/ voltage tap) | Pfisterer Product No. (w/o voltage tap) | Max Operating Voltage | For Cable Cross Section | For Dia. Over Conductor | For Insulation Thickness | For Diameter Over XPLE Insulation Ø |
| – | 870330150 | 33/36 kV | 150mm² | 13.5mm – 15.7mm | 8mm | 30.0mm – 34.0mm |
The Pfisterer part numbers represent standard kits. If your cable dimensions are outside of these values we can provide you with a customised solution. For offshore or directly buried applications we can provide a bronze bell housing. Please contact T&D for further information.
Test Connecting Parts | Earthing Leads & Short Circuiting Kits| Test Leads | Cable Sockets | Dummy Plugs | Blind Caps
Pfisterer 870 330 150 CONNEX Separable Connectors Size 3 Data SheetDownload
