Pfisterer CONNEX Separable Connectors Size 3 33kV 1250A 50-630sqmm Cables

View Sub Products

Pfisterer CONNEX Terminations Plugs Cables - Inner Cone 11kV 33kV

MV-HV Inner Cone Cable Plugs, Connectors & Terminations – Pfisterer CONNEX Size 3

MV-HV Switchgear & Transformer Cable Terminations – 11kV 12kV 24kV 36kV

CONNEX

Size 3 1250Amp

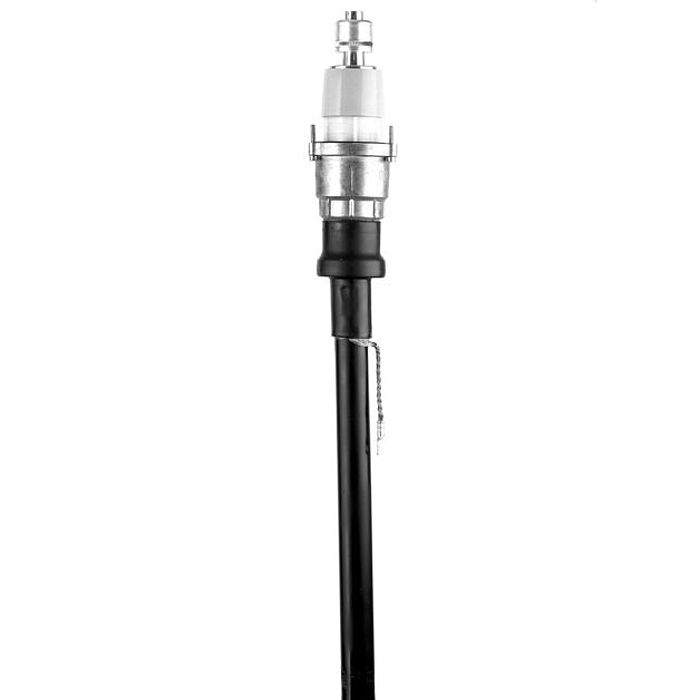

Pfisterer CONNEX size 3 inner cone cable plugs terminate MV-HV power cables into GIS (gas insulated switchgear) with inner cone bushings size 3 (1250A amps) – size 2 CONNEX connectors are specified for cable terminations and connections at 11kV-12kV up to 36kV operating voltages.

CONNEX Size 3 MV connectors manufactured by Pfisterer are specified to terminate MV HV cables with specific conductor size range (50-630sqmm) and primary insulation diameter ranges according to the selection table below and the operating maximum voltage with an amperage rating of 1250A.

Pfisterer size 3 inner cone plug separable connectors are suitable for terminating and connecting high voltage single core cables (XLPE EPR) with copper wire screens up to 36kV – CONNEX plugs suitable for indoor and outdoor cable terminations with or without voltage taps are supplied in sets of three phases.

Typically, used to connect and terminate unarmoured single core XLPE or EPR insulated power cables with Cu copper wire screen and fully bonded semicon screen the Pfisterer CONNEX Size 3 MV Connector can supplied as variants and customised to suit – including integrated fiber optic (FO) cable.

  • CTS Copper Tape Screen Cables EARTHING KIT
  • ATS Aluminium Tape Screen Cables
  • AWA Aluminium Wire Armour Cables EARTHING KIT E
  • Pb Lead Sheathed Armoured Cables
  • Wire Armoured Cables | Aluminium AWA | Steel SWA
  • Easy-Peel Strippable Semicon Layer Cables EARTHING KIT F
Pfisterer Connex MV HV Medium High Voltage Cable Connectors

Size 3 Connectors – Pfisterer MV CONNEX Medium Voltage Cable Plugs

Pfisterer CONNEX Size 3

1250Amp MV-HV Cable Connectors – fEATURES

CONNEX connectors suit:

Pfisterer CONNEX Inner Cone Plugs Terminations Connectors

Pfisterer CONNEX Inner Cone Plugs, Terminations & Connectors For MV-HV Cable Systems

  • DIN VDE medium-high voltage power cables
  • RM type conductor (stranded circular) aluminium or copper
  • Single core MV-HV power cables with copper wire screen/unarmoured
  • Cable sealing system (bell flange seal and heat shrink tubing)
  • For indoor and outdoor cable applications (11kV-24kV)
  • Not soil-resistant or offshore-proof
  • 3 CONNEX separable cable connectors per set
  • 3-core variant on request for XLPE power cables (11kV-24kV)

Should you require any assistance with selecting or specifying cable joints, terminations, connectors and plug-ins for MV-HV cables, please contact T&D.

Pfisterer Size 3 MV Connex

Separable Connector Specifications

CONNEX Size 3 connectors up to 33kV suit the following types of conductors:

  • Stranded Circular RM
  • Stranded Sector SM
  • Solid Circular RE
  • Solid Sector SE
  • Superflexible Stranded RF
Pfisterer Product No. (w/ voltage tap) Pfisterer Product No. (w/o voltage tap) Max Operating Voltage  For Cable Cross Section For Dia. Over Conductor For Insulation Thickness For Diameter Over XPLE Insulation Ø
850310800 870310120 11/12 kV 120mm² 12.5mm – 14.7mm 3.4mm 19mm – 23mm
850310150 870310150 11/12 kV 150mm² 13.5mm – 15.7mm 3.4mm 19mm – 23mm
850310185 870310185 11/12 kV 185mm² 15mm – 17.2mm 3.4mm 22.5mm – 26.5mm
850310240 870310240 11/12 kV 240mm² 17.5mm – 19.7mm 3.4mm 24.5mm – 28.5mm
850310300 870310300 11/12 kV 300mm² 19.5mm – 21.7mm 3.4mm 26mm – 30mm
850310400 870310400 11/12 kV 400mm² 22.6mm – 24.8mm 3.4mm 30mm – 34mm
850310500 870310500 11/12 kV 500mm² 25.4mm – 27.6mm 3.4mm 32mm – 36mm
850310630 870310630 11/12 kV 630mm² 28.9mm – 31.1mm 3.4mm 36mm – 39.5mm
850320050 870320050 22/24 kV 50mm² 7.2mm – 9.4mm 5.5mm 19mm – 23mm
850320070 870320070 22/24 kV 70mm² 9mm – 11.2mm 5.5mm 19mm – 23mm
850320095 870320095 22/24 kV 95mm² 10.5mm – 12.7mm 5.5mm 22.5mm – 26.5mm
850320120 870320120 22/24 kV 120mm² 12.5mm – 14.7mm 5.5mm 22.5mm – 26.5mm
850320150 870320150 22/24 kV 150mm² 13.5mm – 15.7mm 5.5mm 24.5mm – 28.5mm
850320185 870320185 22/24 kV 185mm² 15mm – 17.2mm 5.5mm 26mm – 30mm
850320240 870320240 22/24 kV 240mm² 17.5mm – 19.7mm 5.5mm 28mm – 32mm
850320300 870320300 22/24 kV 300mm² 19.5mm – 21.7mm 5.5mm 30mm – 34mm
850320400 870320400 22/24 kV 400mm² 22.6mm – 24.8mm 5.5mm 34mm – 38mm
850320500 870320500 22/24 kV 500mm² 25.4mm – 27.6mm 5.5mm 36mm – 39.5mm
850320630 870320630 22/24 kV 630mm² 28.9mm – 31.1mm 5.5mm 40mm – 43mm
850330050 870330050 33/36 kV 50mm² 7.2mm – 9.4mm 8mm 22.5mm – 26.5mm
850330070 870330070 33/36 kV 70mm² 9mm – 11.2mm 8mm 24.5mm – 28.5mm
850330095 870330095 33/36 kV 95mm² 10.5mm – 12.7mm 8mm 26mm – 30mm
850330120 870330120 33/36 kV 120mm² 11.5mm – 13.7mm 8mm 28mm – 32mm
850330150 870330150 33/36 kV 150mm² 13.5mm – 15.7mm 8mm 30mm – 34mm
850330185 870330185 33/36 kV 185mm² 15mm – 17.2mm 8mm 30mm – 34mm
850330240 870330240 33/36 kV 240mm² 17.5mm – 19.7mm 8mm 34mm – 38mm
850330300 870330300 33/36 kV 300mm² 19.5mm – 21.7mm 8mm 36mm – 39.5mm
850330400 870330400 33/36 kV 400mm² 22.6mm – 24.8mm 8mm 38mm – 41mm
850330500 870330500 33/36 kV 500mm² 25.4mm – 27.6mm 8mm 42mm – 44.5mm
870330630 33/36 kV 630mm² 28.9mm – 31.1mm 8mm 44.5mm – 47mm
870330631 33/36 kV 630mm² 28.9mm – 31.1mm 8mm 46.5mm – 49mm

MV-CONNEX Separable Connectors, Size 3 Technical Data and Size Classification List

Size 3
Max. operating voltage Um  (kV)  42
Rated voltage U (kV) 36
Line-to-earth-voltage U(kV) 20.8
Nominal current In  (A) 1250
Conductor RM RE RF
Cross section Min. (mm2) 35 95 25
(Guide value)² Max. (mm2) 800 1000 400
Diameter Min. 6.1 10.5 6.5
(Set value)³ (mm) Max. 36.0 36.0 26.8
Voltage tap with¹/without without (XL)
Diameter of Min. insulation3) after removing the outer (mm) 15.5 46.0
Semi-conducting Max. layer (mm) 46.0 55.0
Rated AC voltage  5 min. (kV) 95
Partial discharge level at 2 x U(pC) ≤ 10
Rated lightning impulse withstand voltage (BIL) (kV) 200
DC voltage test 15 min. (kV) 125
Rated short time 1 s (kA) 60
Current 3 s (kA) 40
Rated impulse current (kA) 150

1) If not required, the voltage tap must be earthed separately.
2) The min. and max. cross sections can only be achieved by maintaining the min. or max. diameter across the conductors and the min. or max. diameter across the insulation.
3) The entire diameter range is covered by various components.

Separable Connectors

Pfisterer CONNEX plug-in type Size 3 connectors are available with a selection of MV accessories to suit:

  • 827/186/213 – 45° Angled Test Adaptors
  • 827/181/013 – Current Testing Adaptors
  • 827/125/003 – Cable Testing Sockets
  • 827/150/004 – Bushing Blanking Connectors
  • 827/537/000 – 10kA Surge Arresters
  • Pfisterer CONNEX Test Leads | Straight & Branch Cable Joints | Elbow Adaptors
  • Pfisterer SICON | Shearbolt Lugs
Pfisterer Cable Plugs 11kV 33kVPfisterer Cable Plugs 11kV 33kV

Download Selection Form For Pfisterer Cable Plugs 11kV-33kV

Pfisterer Inner Cone Plugs

Contact us for Pfisterer Jointer Training Courses 33kV/66kV

Pfisterer CONNEX

Pfisterer CONNEX Size 0

Thorne & Derrick – Pfisterer Stockists & Distributors

Pfisterer CONNEX enables components enable onshore and offshore LV-HV cable jointing, terminating and connecting of GIS Switchgear, Transformers, RMU (Ring Main Units), Capacitors, Transducers, Motors & Cable Sealing End Boxes – also surge arresters, busbar couplings, pluggable substation connectors and Sicon mechanical shearbolt cable lugs and splices for 11kV/33kV switchgear connection of MV-HV power cables.

➡ For further information about Pfisterer CONNEX size 0 plugs please refer to the product sections below – to support the installation of Pfisterer inner come plugs T&D stock the Alroc range of cable jointing tools.
