3M Cold Shrink Cable Abandonment Kit – Selection Guide

Published 06 Feb 2019

Cold Shrink Cable Abandonment

uploaded by Chris Dodds - Thorne & Derrick Sales & Marketing Manager

Cable Abandonment

Thorne & Derrick International, the UK’s leading distributor and largest stockist for 3M Hazardous Area & Cold Shrink Cable Accessories have despatched over one thousand 3M CSCAK abandonment kits to the North Sea Forties Pipeline System and Kinneil Terminal.

3M CSCAK cable abandonment kits are used to safely decommission redundant LV low voltage power cable circuits in the oil, gas and petrochemical industry.

3M Electrical cable abandonment kits using Cold Shrink, are suitable for Zone 1 and Zone 2 hazardous area electrical installations without need for heat shrink, “hot-working” and naked flames in potentially explosive environments – CSCAK abandonment kits suit EEMUA 133 XLPE lead sheathed power cables (600/1000v and 3.3kV) for safe installation in hazardous area locations according to the ATEX Directive.

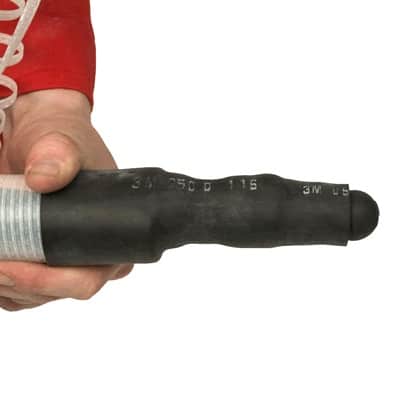

3M Cold Shrink Cable Abandonment Kit

Cold Shrink product features at a glance :

Simple and quick to install – no heat shrink torches or heating required to install cold shrink abandonment kits
Permanent cable abandonment for LV power cables
No requirement for additional mastic tapes or greases
No hot work permits required for hazardous area locations (HAZLOC) or potentially explosive atmospheres
Widely used in onshore and offshore environments, including hazardous area locations Zone 1 & Zone 2
3M Cold Shrink rated up to and including 1.9/3.3kV

3M Cable Abandonment Kits suit XLPE/PVC Insulation, Lead Sheath, Steel Wire Armour, PVC Sheathed – including Shipwiring cables (EPR GSWB Wire Braided) and Unarmoured cables up to and including 3.3kV single and multi-core cables.

CABLE ABANDONMENT KIT LIST

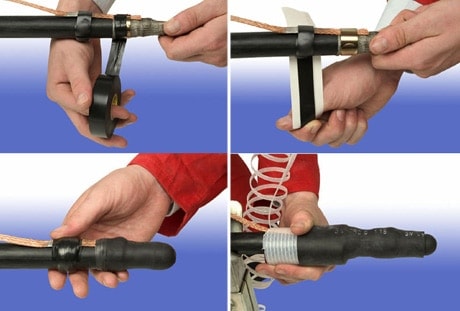

The cable abandonment kit uses a 3M Cold Shrink cable end cap, pre-stretched cold shrink tubes, Scotch 2228 Mastic Tape, Scotch 23 Self Amalgamating Tape and Scotch 24 Electrical Shielding Braid (tinned copper mesh tape) and constant force springs.

Cable Abandonment

Cable Abandonment Kits

Cable abandonment kits are often used when cable is left underground but it is not intended to be left live. If by mistake it has power connected to it, the cable abandonment kit is designed to create a short circuit to earth so that it will trip out, thus it will render the circuit dead to enable the engineer or cable jointer to realise power was switched to it by mistake.

In this design by 3M Electrical, there are no provisions for stress control tapes or systems and screening because it is just not meant to be left live.

The range-take of 3M CSCAK Cold Shrink products according to both outside cable diameters (around outer cable sheath) and conductor cross section areas (core) for both single and multi-core cables are as follows:

3M Cold Shrink Cable Abandonment Kit – 12 to 18mm Dia – 3M CSCAK-1
3M Cold Shrink Cable Abandonment Kit – 18 to 25mm Dia – 3M CSCAK-2
3M Cold Shrink Cable Abandonment Kit – 25 to 42mm Dia – 3M CSCAK-3
3M Cold Shrink Cable Abandonment Kit – 42 to 55mm Dia – 3M CSCAK-4
3M Cold Shrink Cable Abandonment Kit – 56 to 81mm Dia – 3M CSCAK-5

CABLE ABANDONMENT KIT SELECTION TABLE

Cable Abandonment CSCAK Kit	XLPE AWA Single Core	XLPE SWA 2 Core	XLPE SWA 3 Core	XLPE SWA 4 Core	3.3kV XLPE SWA Lead 3 Core
3M CSCAK/1	–	1.5-6sqmm	1.5-6sqmm	1.5-4sqmm	–
3M CSCAK/2	70-120sqmm	10-35sqmm	10-16sqmm	6-16sqmm	–
3M CSCAK/3	150-500sqmm	50-150sqmm	25-120sqmm	25-95sqmm	25-95sqmm
3M CSCAK/4	500-630sqmm	185-400sqmm	150-185sqmm	120-150sqmm	120-185sqmm
3M CSCAK/5	800-1000sqmm	–	240-400sqmm	185-400sqmm	240-400sqmm

Why Play With Fire? Keep Your Cool with 3M Cold Shrink……

Heat shrink cable joints, terminations and cable accessories require naked flames.

But hot-working poses serious dangers with respect to ignition sources in industrial and hazardous areas – air, naked flames and the presence of atmospheric combustible substances trigger the Ignition Triangle.

Install 3M Cold Shrink for a first class safety and service record without any hidden dangers.

3M Cold Shrink products include cable joint kits, cable termination kits, cable abandonment kits and cold shrink tubing – extensively specified for offshore oil, gas, petrochemical, rail, utility and construction projects at low and high voltages.

Video : 3M Cold Shrink Cable Abandonment Kits ➡

Should you require customer service or technical support on the selection or specification of LV MV HV Cable Accessories please contact us – view the full range of 3M Cold Shrink Cable Abandonment Kits below.
