Cordless Hydraulic Crimping Tool

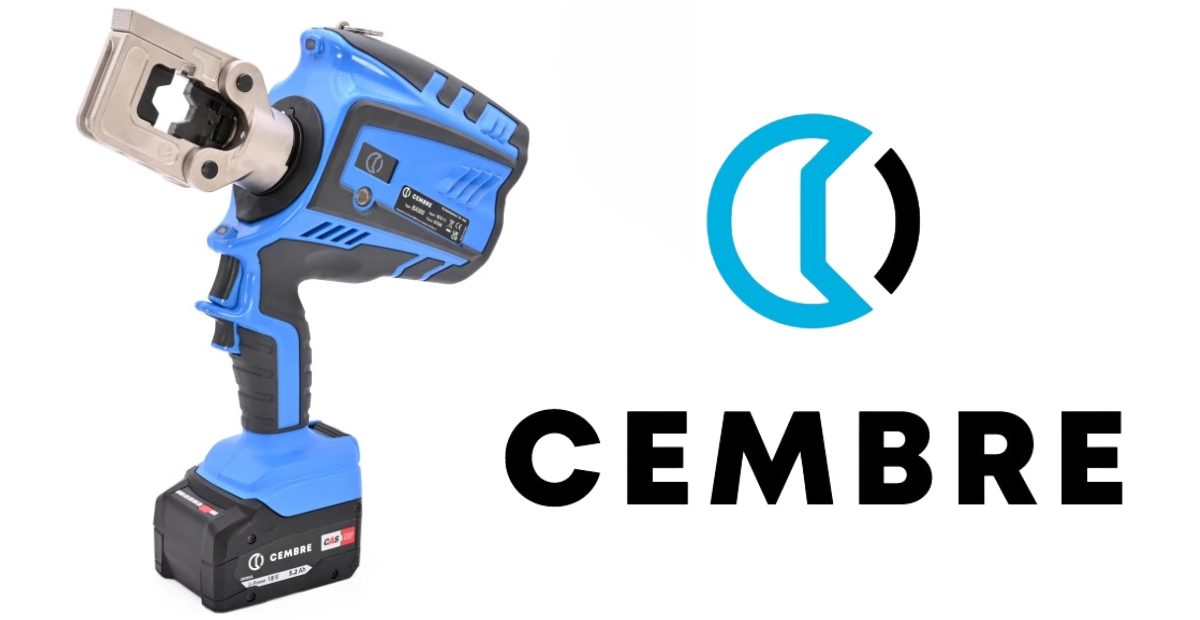

The Cembre BA500 Cordless Hydraulic Crimping Tool, part of the Cembre Battery Crimping Tools range, is purposed for installing electrical Crimps, Cable Lugs & Connectors on conductors up to 300sqmm, offering a rated crimping force of 63kN, using the standard die series compatible with other 50kN tools and heads. Cembre‘s BA500 Hydraulic Crimping Tool features adaptive control, which allows for the tool to automatically adjust the crimping force according to the connector cross-section. Ultimately, the BA500 doesn’t use any more crimping force than what’s required.

BA500 | The Ideal Tool For Those Who Demand Maximum Precision

Some of the Cembre BA500 Cordless Hydraulic Crimping Tool‘s key features include, a 180° rotating head and pistol-grip design make it ideal for tight or awkward confined spaces, smart crimp detection for automatic die stopping movement when resistance is detected, as well as a double-click activation system for added safety, which prevents accidental starts and shuts off automatically after three minutes of inactivity of the Cordless Hydraulic Crimping Tool to conserve energy.

A built-in OLED display shows real-time data including crimping force, battery status, and maintenance alerts. The BA500 also includes an automatic battery coupling system and supports SMARTOOL technology for data logging and download.

Want the Cembre BA500 Cordless Hydraulic Crimping Tool in your toolbox? Contact our experts today.

Cembre BA500 Technical Specifications

The following table includes a further insight on the technical specifications of the Cembre BA500 Cordless Hydraulic Crimping Tool, which includes three variants, each of which is dedicated specific regions (EU, UK & USA), due to the feature of a compatible battery charger:

Cembre BA500 Cordless Hydraulic Crimping Tool Technical Specifications
		Cembre BA500	Cembre BA500E	Cembre BA500A
Application Range		suitable for installing electrical compression connectors on conductors up to 300mm² (600 MCM)
Rated crimping force	kN (US sh. ton)	60 (6.75)
Rated operating pressure	bar (psi)	700 (10,15)
Dimensions	mm (inches)	349 x 288 x 83 (13.7 x 11.3 x 3.3)
Weight with battery	kg (lbs)	4,5 (9.9)
Motor	V	18
Operating temperature	°C (°F)	-15 to +50 (+5 to +122)
Recommended oil		ENI ARNICA ISO 32 or equivalents
Operating speed		twin speed operation and automatic switching from a rapid advancing speed of the ram to a slower, more powerful crimping speed
Safety		maximum pressure valve
Rechargeable Battery	V / Ah / Wh	18 / 5.2 / 93.6
Type		CB1852 (Li-Ion)
Weight	kg (lbs)	0,66 (1.45)
Battery Charger	type	ASC55-EU	ASC55-UK	ASC55-US
	V / Hz	220 – 240 / 50 – 60		115 / 60
Input	W	85
Acoustic Noise
L(pA)	dB (A)	73
L(pCPeak)	dB (C)	94.5
L(WA)	dB (A)	79
Vibration	m/s²	0.575 max.

BA500 Hydraulic Crimping Tool Benefits & Advantages

The following video provides a visual demonstration of the benefits and advantages of the Cembre Battery Operated Cutting & Crimping Tools range:

Cordless Crimping Tool Portability
Operates on battery power for maximum mobility and convenience in confined or remote locations.
Adaptive Force Control
Tool automatically adjusts cable crimping force to match connector size—delivers only the required pressure, improving efficiency and tool longevity.
Precision Positioning
Stops die stroke upon initial resistance, allowing operator to check and align the connector perfectly before final crimping.
Compatible with Standard Dies
Uses the same die series as other 50 kN Cembre tools—no need to invest in new tooling.
Powerful Performance
Provides a crimping force of 63 kN, covering conductor sizes up to 300mm².
Ergonomic & Compact Design
Lightweight pistol grip design with a 180° rotating head for improved comfort and flexibility during prolonged use.
Enhanced Operator Safety
Double-click activation system prevents accidental crimping, increasing safety on-site.
Energy-Saving Auto Shut-Off
Hydraulic Crimping Tool automatically powers down after 3 minutes of inactivity, reducing energy use and preventing overheating.
Real-Time Monitoring with OLED Display
View force data, battery status, crimp count, and maintenance alerts instantly on a clear OLED screen.
Smartool Data Logging
Built-in SMARTOOL technology enables full digital tracking and download of crimping history for QA and documentation.
Quick Battery Exchange System
Features an automatic battery coupling mechanism with a control button for faster, safer battery changes.
Rugged & Weather-Tolerant
Operates in extreme temperatures from -15°C to +50°C, making it suitable for demanding field conditions.

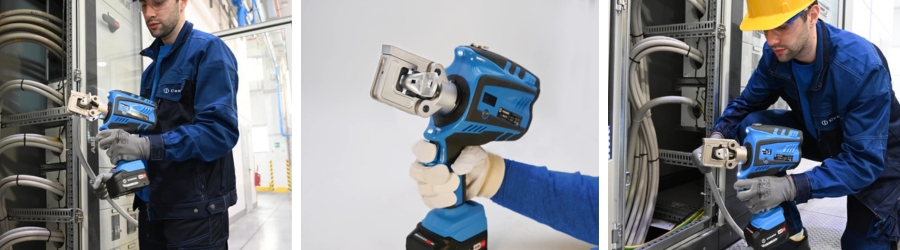

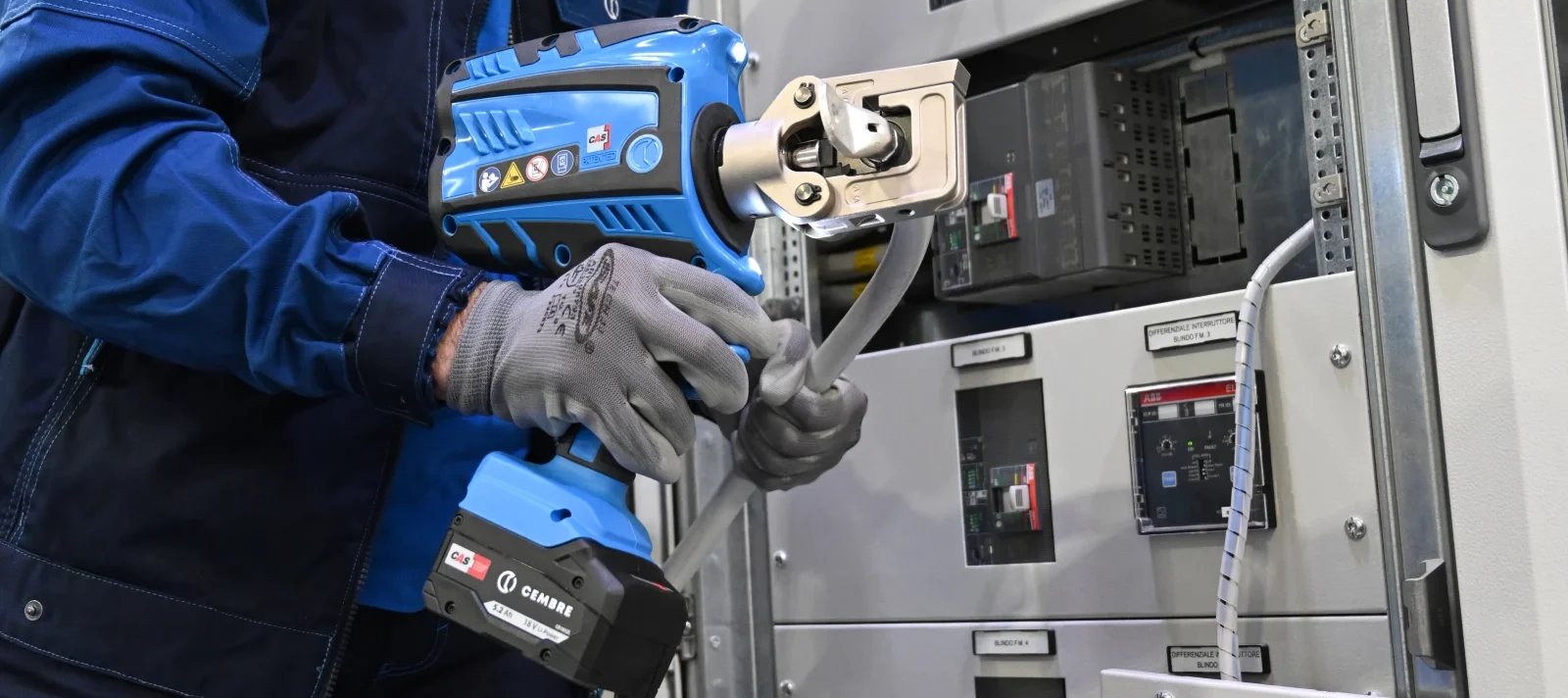

Cordless Hydraulic Crimping Tool - Cembre BA500 In Use
