➡ View the complete range of Cembre Battery Crimping Tools – the Cembre battery range of cable crimping tools for use with crimps, connectors and lugs up to 400sqmm including medium/high voltage cables at 11kV/33kV.

Battery powered tools are balanced for ease of use with a double speed crimping action – for ease of operation and comfort the battery crimping tool can be fully rotated through 180 degrees.

Cembre battery cutting tools are also available for all cable types up to 95mm diameter.

Thorne & Derrick can provide expert tool recommendations to ensure customer selection of the most suitable battery crimping tool for the cable application – contact us to discuss your requirements.

T&D have been Official Distributors for Cembre since 1985 – full range of battery crimping tools are available for delivery to UK and international destinations from stock; hydraulic cable crimping tools also available.

Battery crimping tools feature a range of new generation features including the Multifunction OLED Display:

Battery Cable Crimping Tools Selection Tables

The following table enables the selection of the correct battery crimping tool from the Cembre range – contact us for assistance or to arrange demonstration.

 Cembre Tools   B15MDE  B35-45MDE   B35-50MDE   B54MD-D6E   B500E  B550E  B1350-CE  B1350L-CE  B1350-UCE  B1300-CE  B1300L-CE  B1300-UCE
Type Of Action  Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp  Crimp  Crimp   Crimp
Force Developed 15kN 35kN 35kN 63kN 57.7kN 132kN 132kN 132kN  132kN  132kN   132kN
Battery Material Li-Ion Li-Ion Li-Ion Li-Ion Li-Ion Li-Ion Li-Ion Li-Ion Li-Ion  Li-Ion  Li-Ion   Li-Ion
Battery Voltage 18V 18V 18V 18V 18V 18V 18V 18V 18V  18V  18V   18V
Battery Current 2Ah 2Ah 2Ah 2Ah 4Ah 4Ah 4Ah 4Ah 4Ah  4Ah  4Ah   4Ah
Length 337mm 354mm 387mm 458mm 300mm 358mm 338mm 395mm 351mm  406mm  471mm  423mm
Height 133mm 133mm 133mm 133mm 343mm 358mm 344mm 372mm 369mm  239mm  239mm  239mm
Width 81mm 81mm 81mm 81mm 83mm 83mm 83mm 83mm 83mm  102.5mm  102.5mm 102.5mm
Weight 1.74kg  2.19kg  2.6kg  2.95kg  4.2kg  5.3kg  6.5kg  8.1kg  5.9kg  6.5kg  6.5kg  8.0kg

Maximum cable Crimping Application Ranges LV HV

Cembre Tool  Cable Crimping Capacity (Sqmm)
LV HV C Taps Insulated Terminals  Copper Aluminium

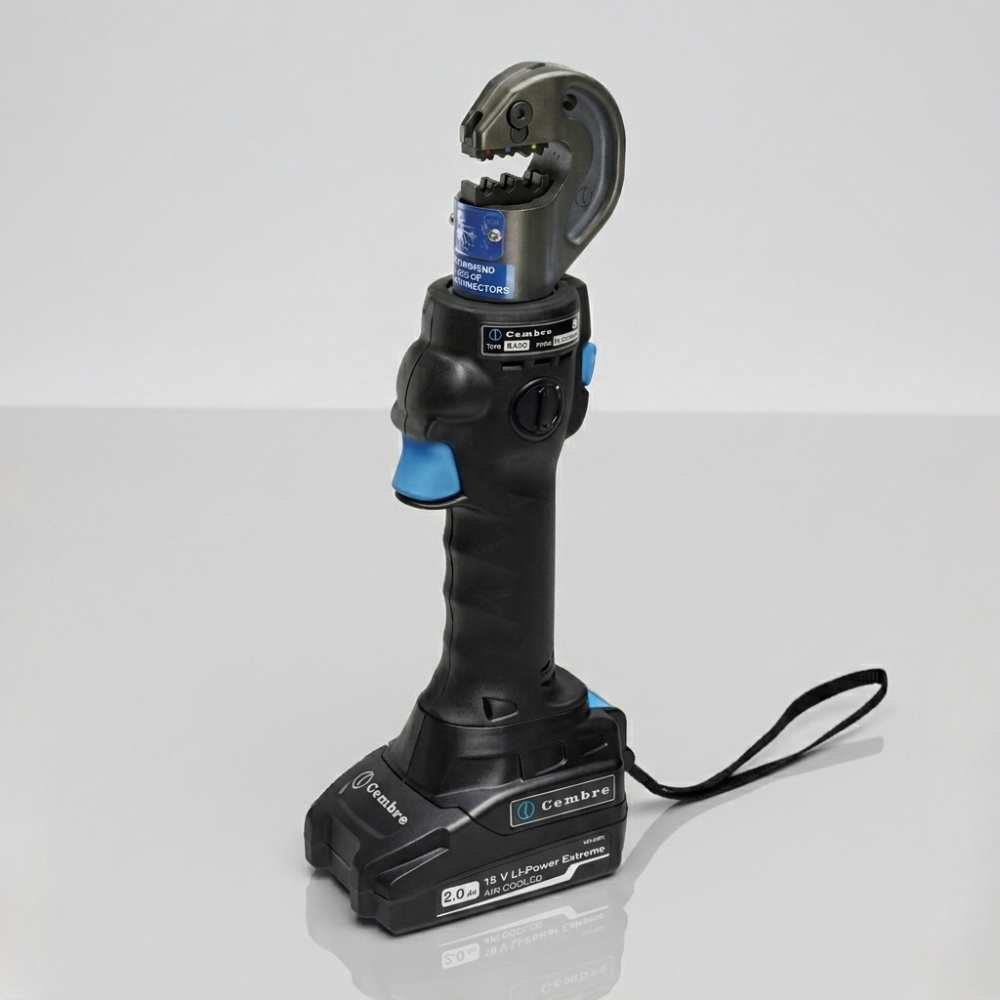

B15MDE 16sqmm N/A N/A 16sqmm N/A N/A

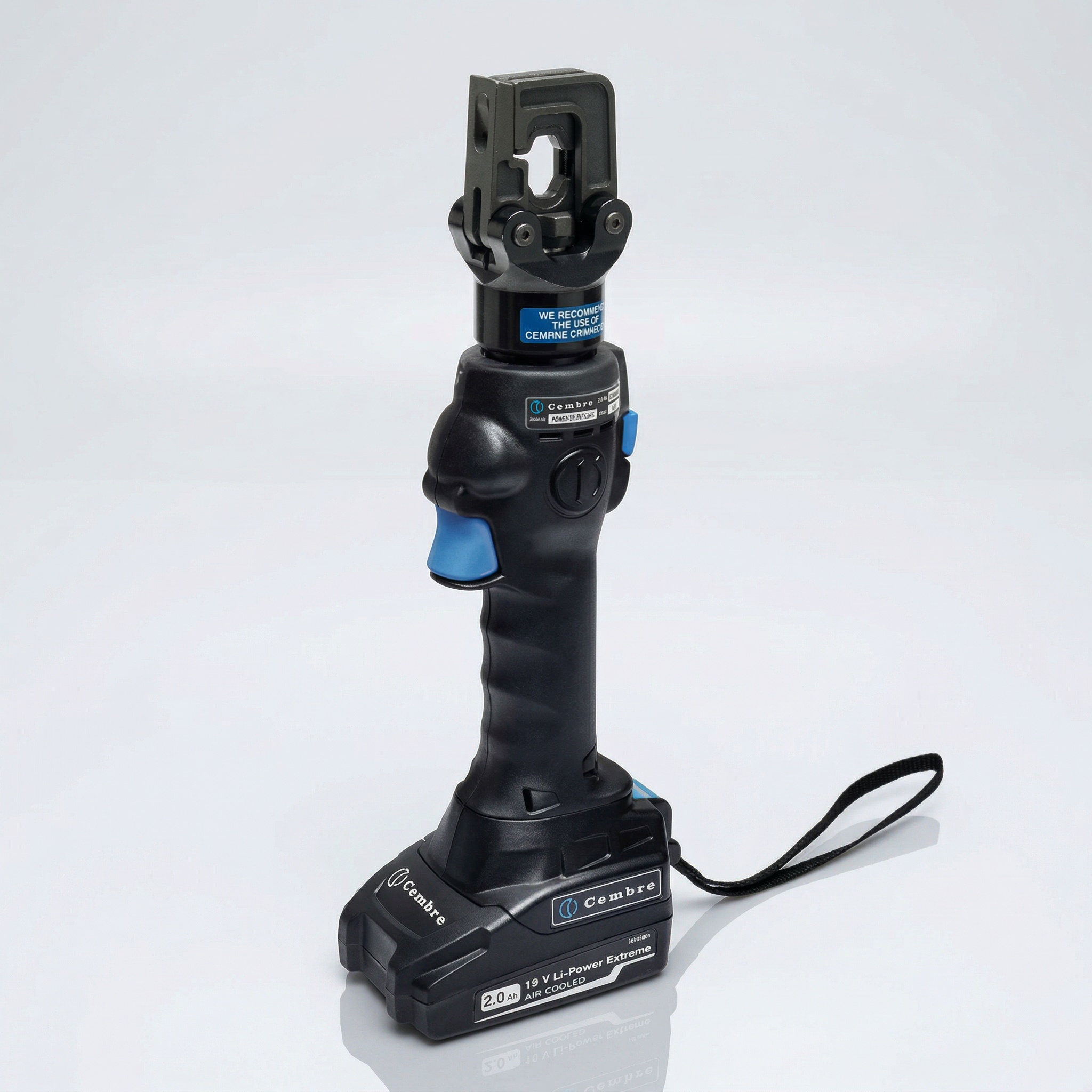

B35-45MDE 150sqmm 70sqmm 35sqmm N/A N/A N/A

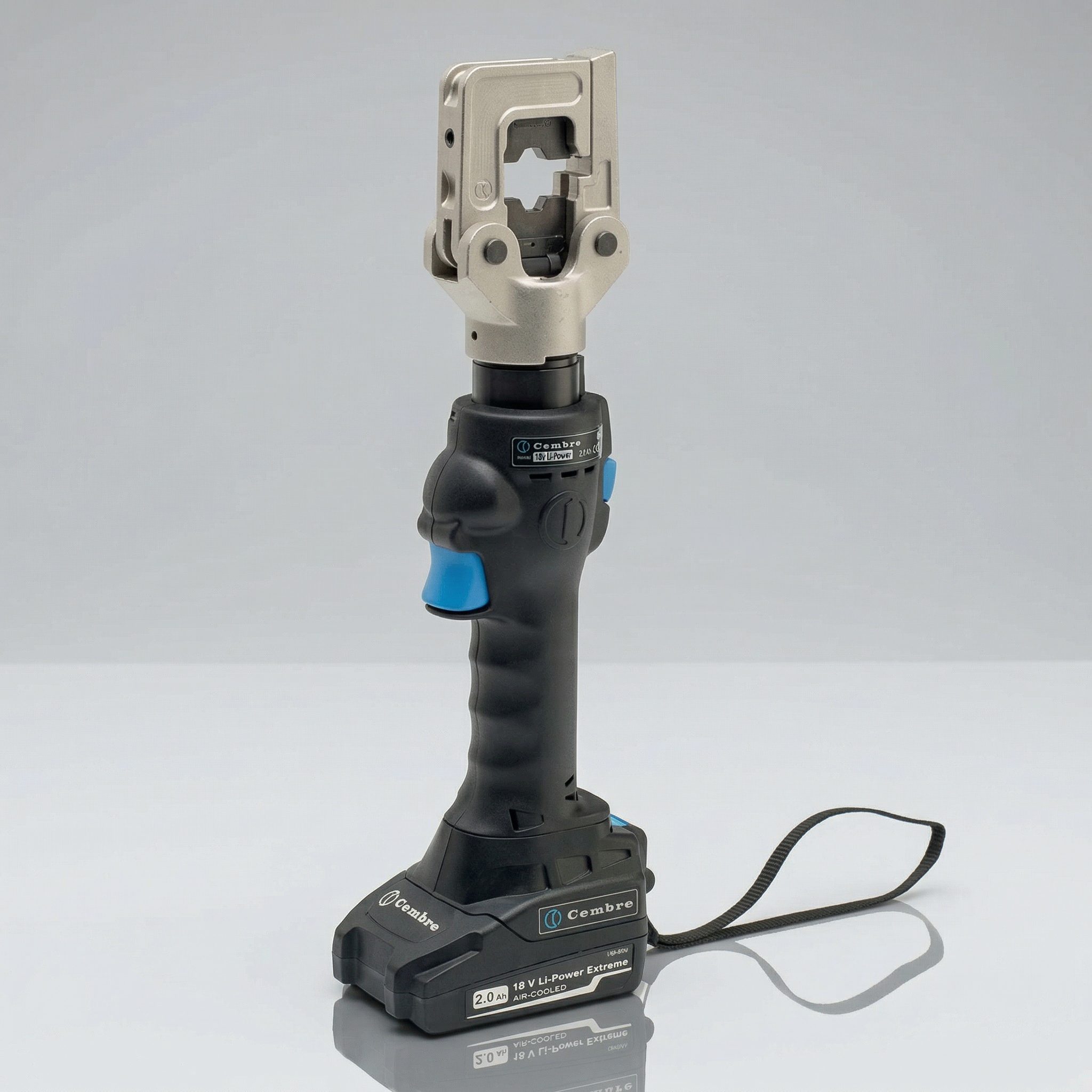

B35-50MDE  150sqmm N/A 35sqmm 50sqmm N/A N/A

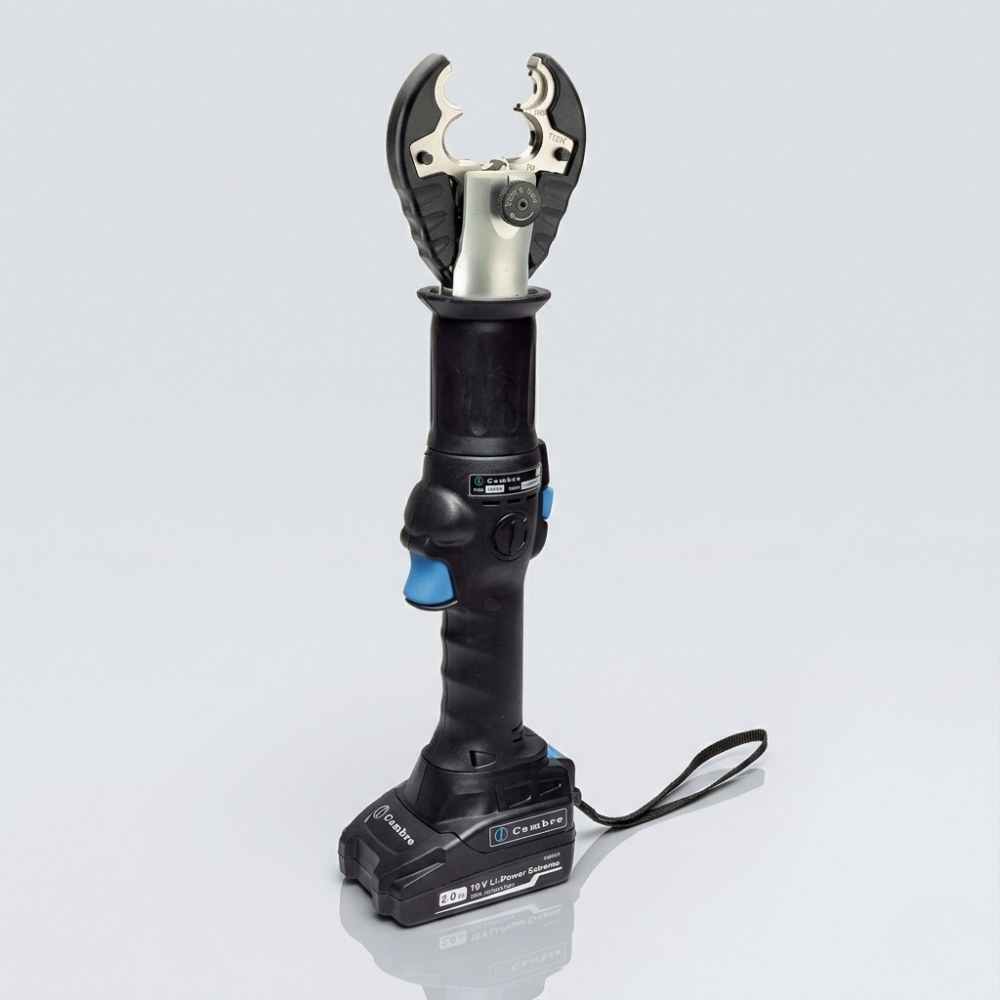

B54MD-D6E N/A N/A N/A N/A 300MCM 4/0 AWG

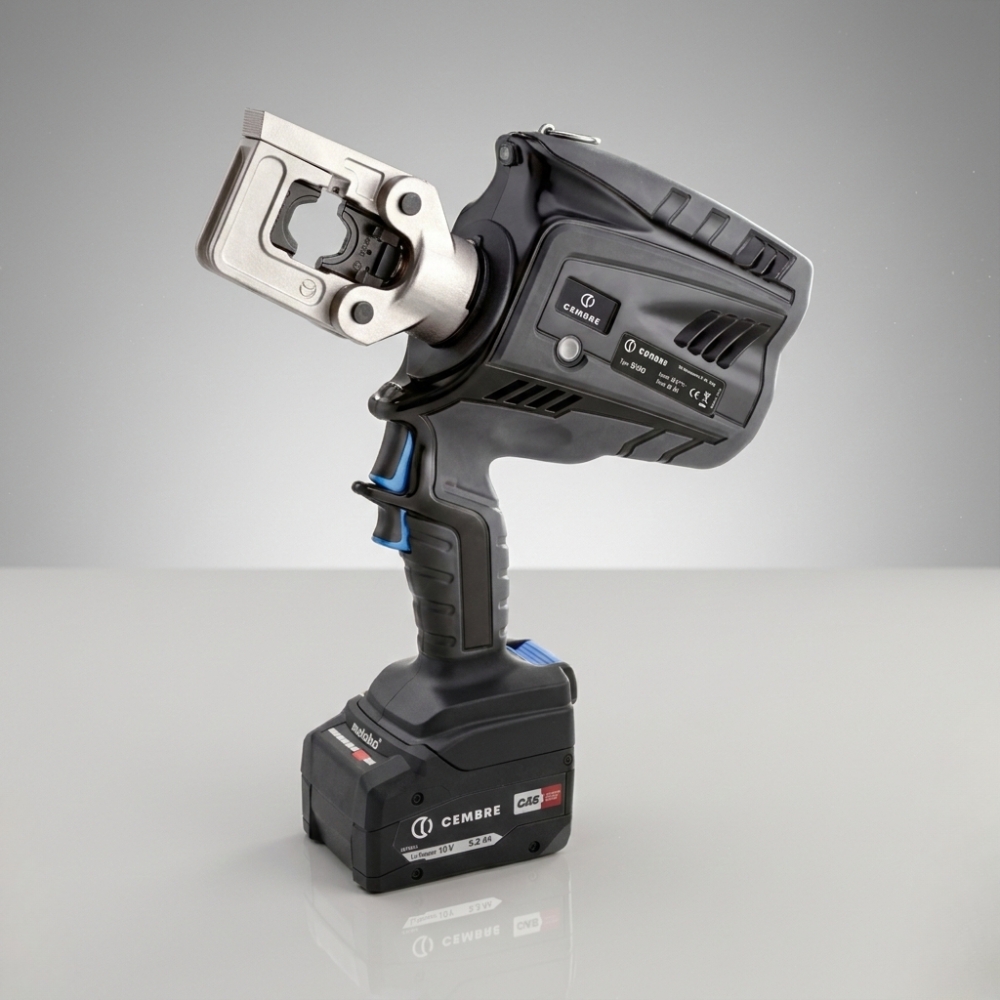

B500E 300sqmm 70sqmm N/A 120sqmm N/A N/A

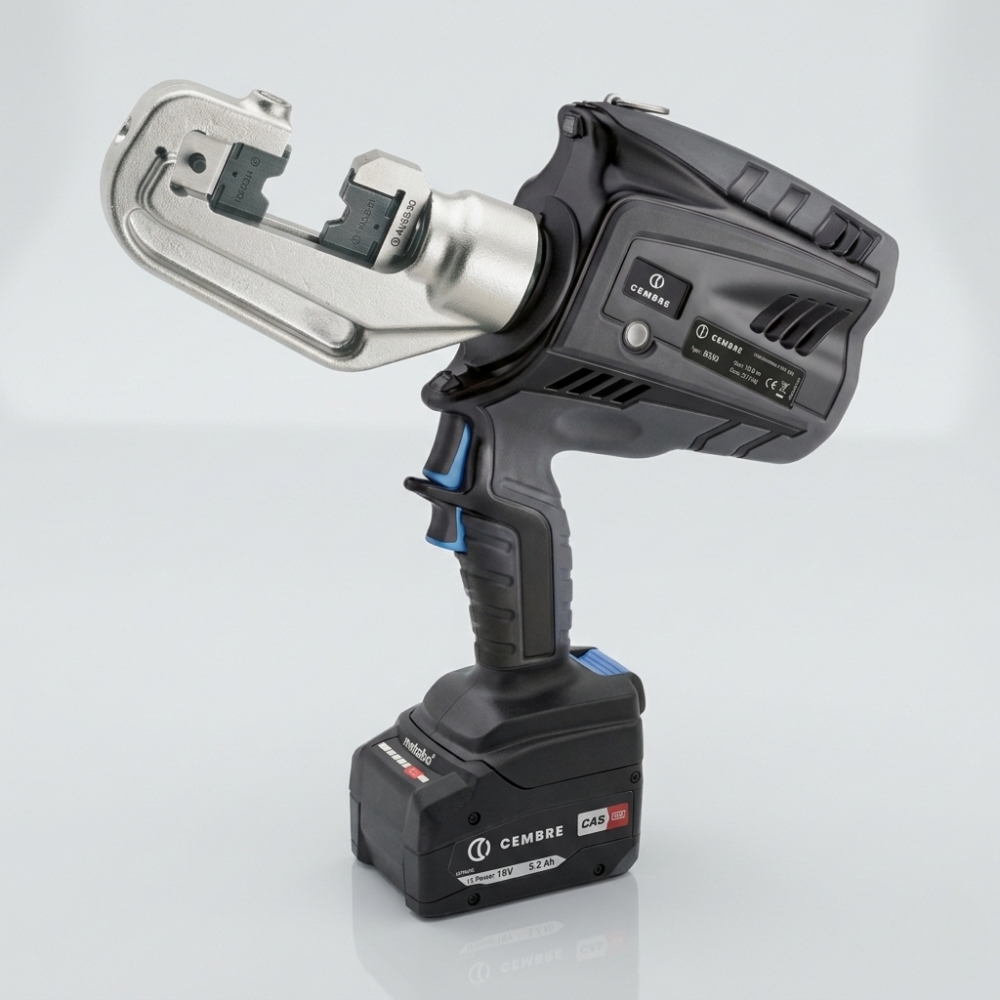

B550E N/A N/A N/A 120sqmm 240sqmm 70sqmm
B1350-CE 400sqmm 400sqmm 185sqmm 240sqmm N/A N/A

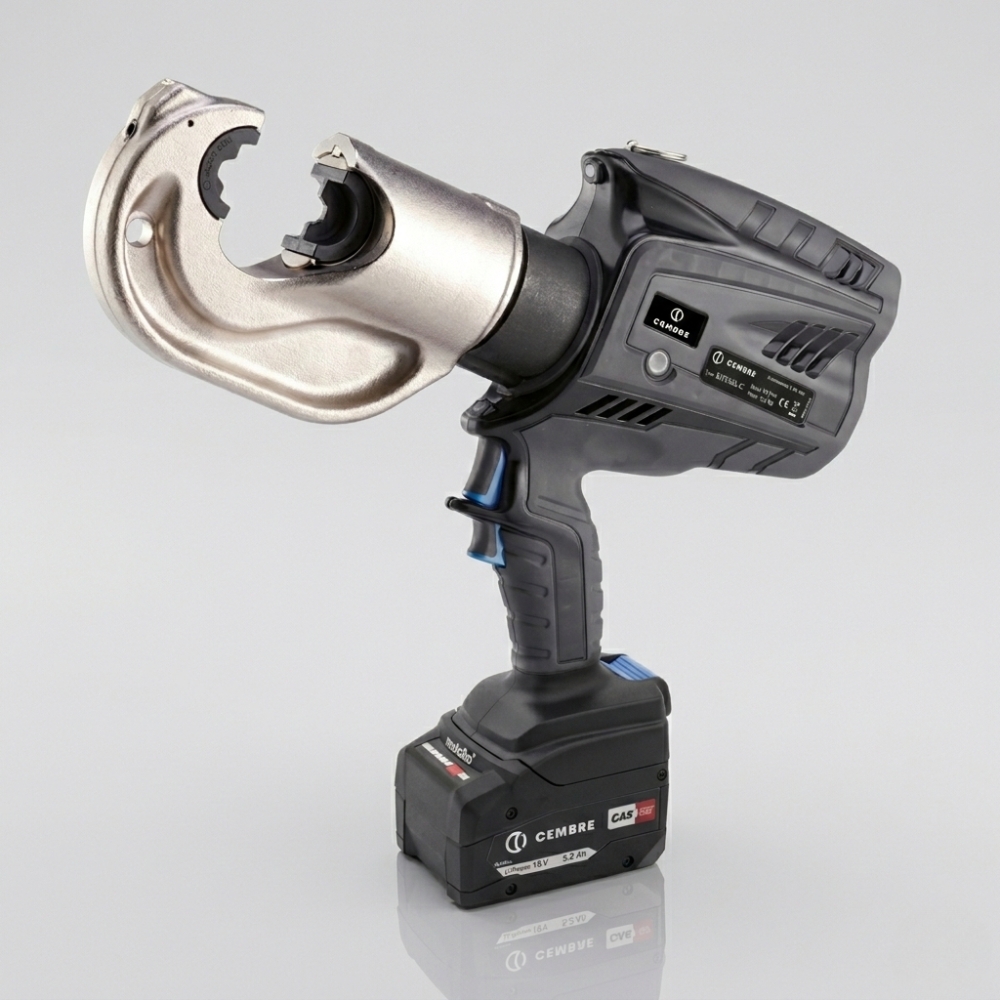

B1350L-CE 400sqmm 400sqmm 185sqmm 240sqmm N/A N/A

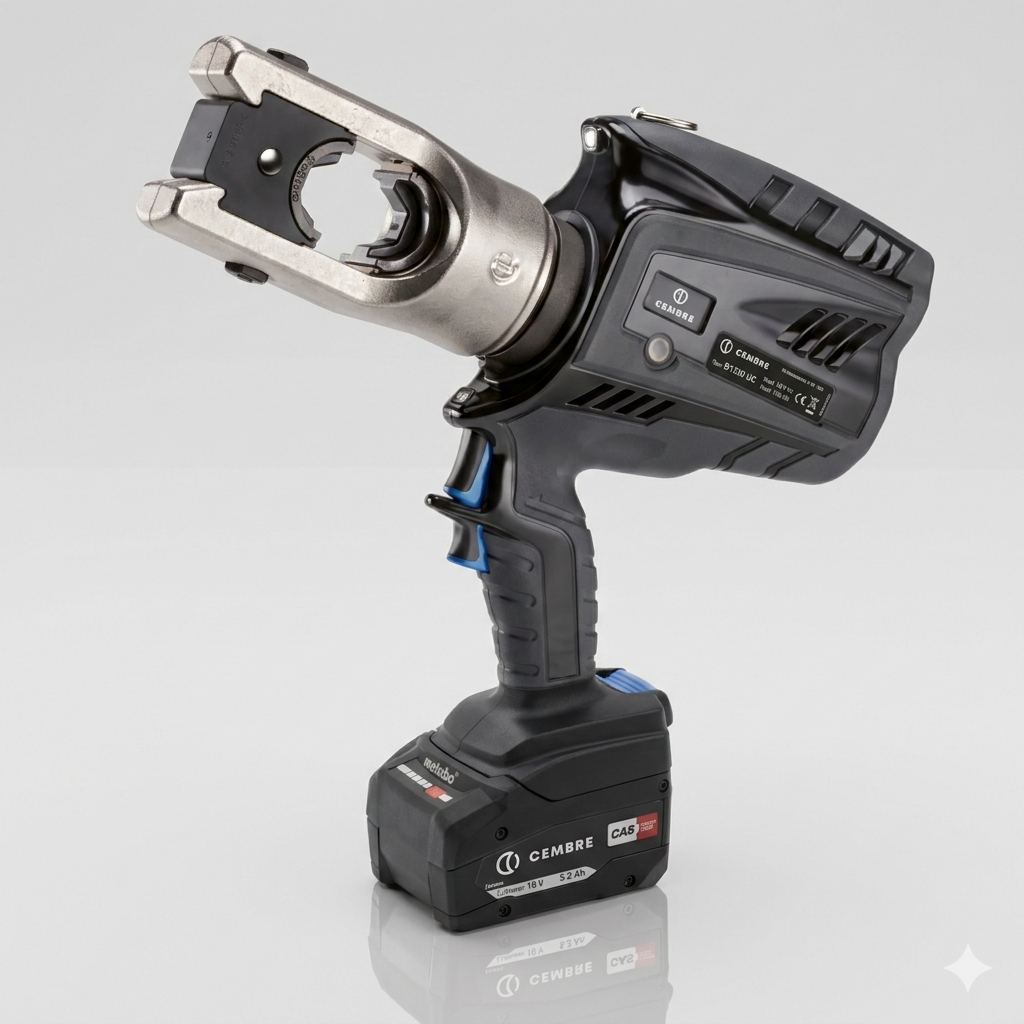

B1350-UCE 400sqmm 400sqmm 185sqmm 240sqmm N/A 300sqmm
B1300-CE 400sqmm 400sqmm 185sqmm 240sqmm N/A N/A

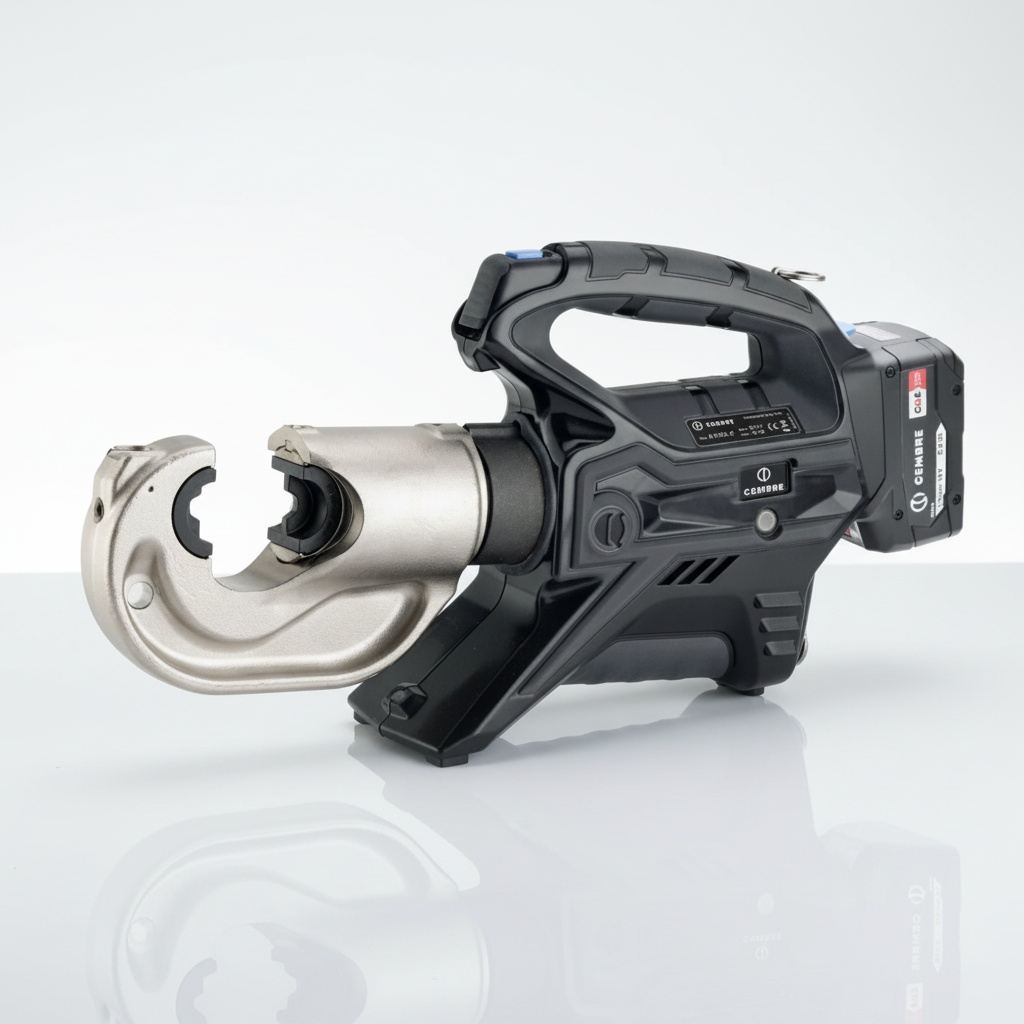

B1300L-CE 400sqmm 400sqmm 185sqmm 240sqmm N/A 300sqmm

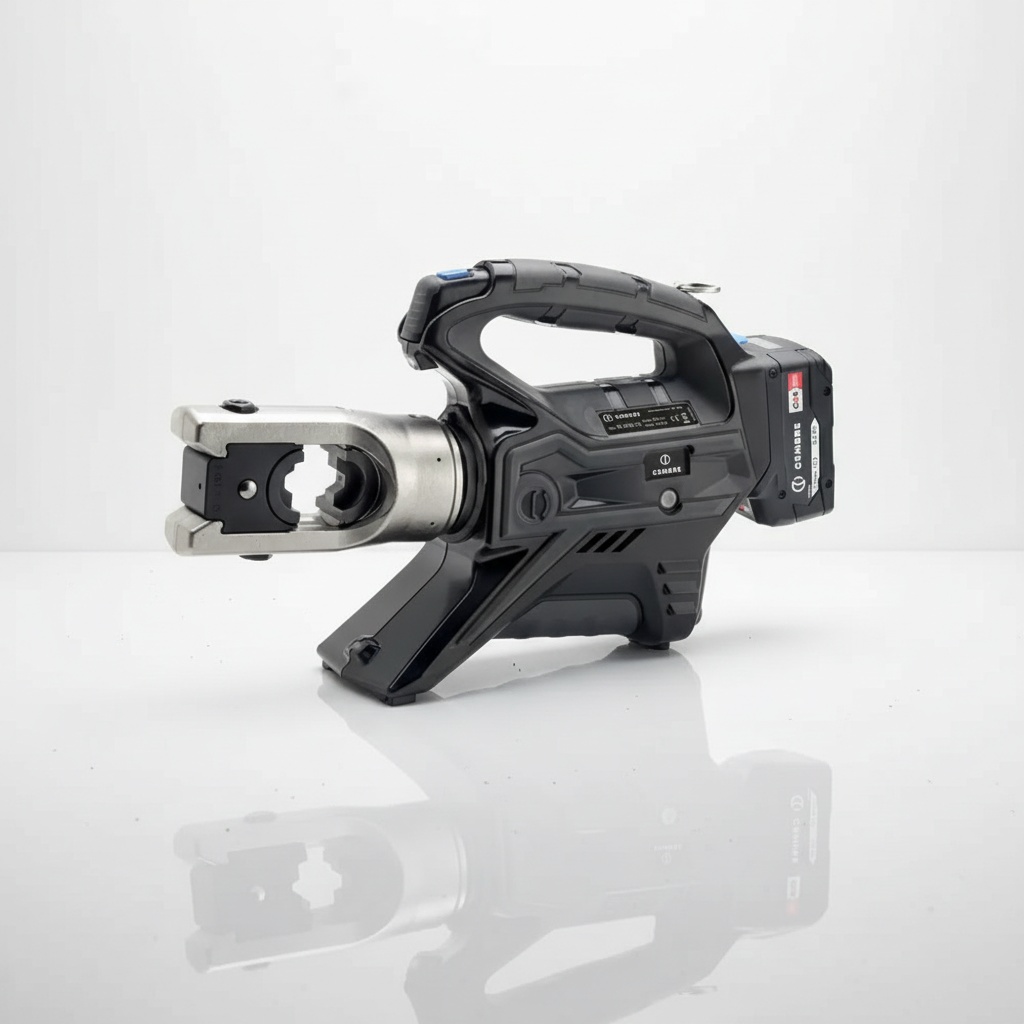

B1300-UCE 400sqmm 400sqmm 185sqmm 240sqmm N/A N/A

Battery Crimping Tool Features

Cembre tools are preferred by electrical engineers, cable jointers, overhead linesmen and utility workers for their superior technical features and user benefits – the multifunction OLED display provides general operating and condition information about the crimping tools including battery power levels and charge status, pressure level display, crimping force check (kN) and tool service requirements.

The battery tools are equipped with LED indicators to display the remaining battery life at any time by pressing the adjacent button.

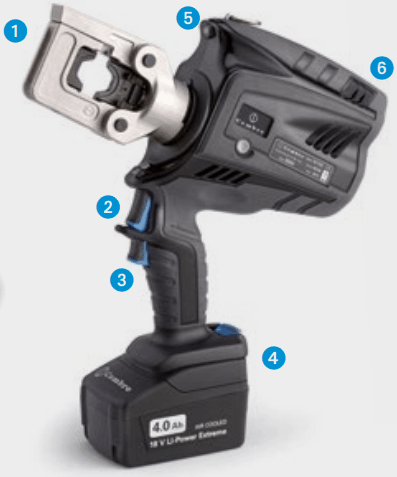

    1. Crimping tool head rotates through 180°
    2. Switch protected against accidental operation
    3. Pressure release button conveniently located on crimping tool
    4. Slot-in battery with release button
    5. LED lighting of the working area
    6. Motor ventilation of the crimping tools
    7. Bi-component tool body for increased impact resistance
    8. Multifunction OLED display with touch button
    9. Improved balance of the battery crimping tool for ease of handling
    10. Anatomically shaped grip for greater comfort
    11. 18.0V – 4.0 Ah Li-Ion high power batteries
    12. SMARTOOL technology for viewing and downloading operational data

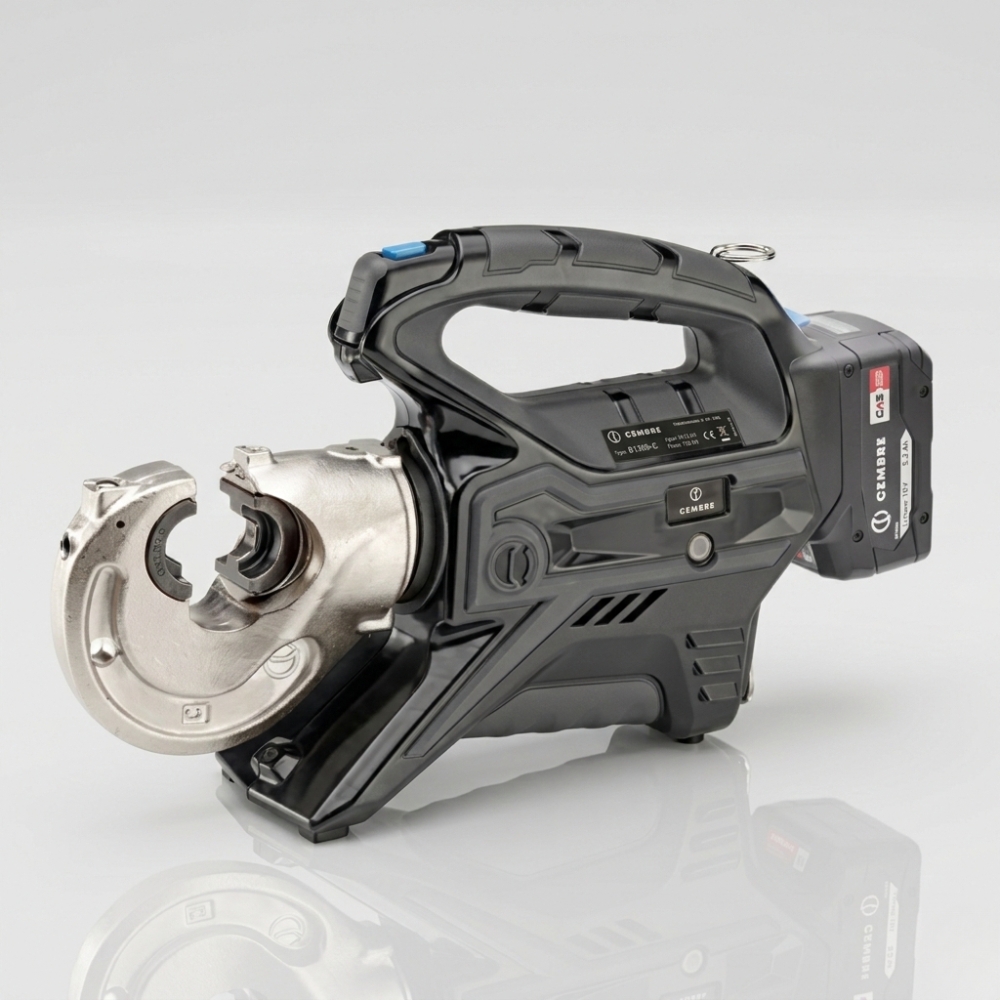

Cembre B1300-C

See the Cembre B1300-C video below – the new generation, battery crimping tool which is hydraulic, cordless with 180° rotatable tool head with Li-Ion 18.0V 4.0 Ah high capacity battery.

Cembre B1300-C is supplied as standard with protective carrying case, battery charger, USB cable and shoulder strap.
